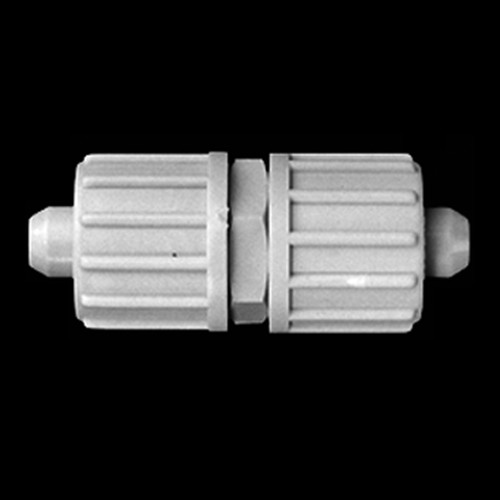

Straight Connector made of PP or PVDF for Fabric Reinforced Tubing

Product specification Straight tube screw fitting, fitting to thick-walled (PVC)-tubing more

Product specification

Straight tube screw fitting, fitting to thick-walled (PVC)-tubing

General Information EMP-B1 Connection of apparatuses and instruments by fabric reinforced... more

General Information EMP-B1

Connection of apparatuses and instruments by fabric reinforced tubing

In areas of chemical research and development

In chemical apparatus construction, pilot and production plants

For service and repair work

Screw fittings of chemically resistant, temperature stable, and biocompatible PP or PVDF for thick-walled tubing particularly made of PVC and reinforced with fabric. Fitted with tubing connection or G- and NPT-external thread resp.

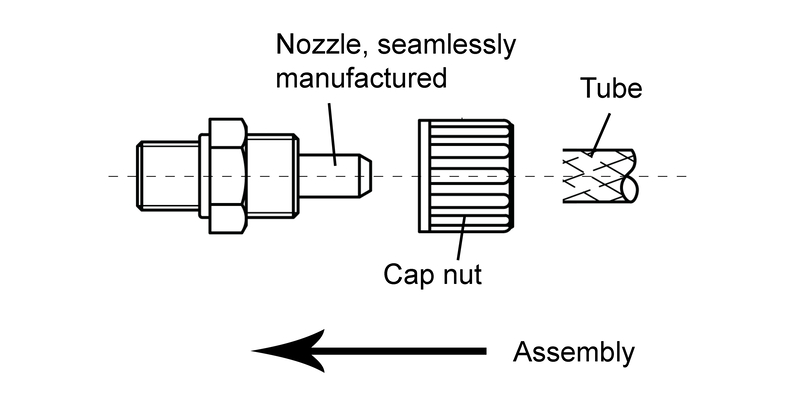

Handling: The non-slip knurled cap nut is mounted on the tube and the passed through tube end is slipped on the hose nozzle. Now the cap nut is screwed with the hose nozzle.

PP (Polypropylene)

Extremely good impact toughness and notch impact strength

Higher hardness and stiffness as well as better resilience than PE

Thermoforming possible

Very good dielectrical properties

Good resistance to alcohols, ketones, conc. acids and alkalis

Not stable to aromatic hydrocarbons, fats and oils, halogenes

Autoclavable

Resistant to hydrolysis

Physiologically safe

Regulatory compliance to FDA 21 CFR 177.1520, RoHS, BPA-free, DEHP-free, BSE/ADI-free

Colour: grey

Density: 0.90 g/cm3

Temperature range: +5 to +90 °C

Shore hardness D: 72°

Max. operating pressure: 10 bar at +20 °C

Water absorption: <0.05 %

Tensile strength: 25 - 40 N/mm2

Elongation at break: 800 %

Surface resistance: >1013 Ohm

Melt flow index MFR: 0.3 g/10 min.

PVDF (Polyvinylidene fluoride)

High-quality technical plastic for chemical apparatus and machine building, especially in the petrochemical, metallurgical, pharmaceutical, food processing, paper and textile industry as well as in the nuclear technology.

High impact toughness even at low temperatures

Good breakdown strength

Low dielectric loss factor

Highest mechanical stability and stiffness

Meeting highest purity requirements

Comply with the guidelines from FDA and USP class VI, additionally PVDF has the KTW approval. Up to +150 °C it is non-toxic and since it has a similar property to glass it is a no-culture medium for microorganisms.

Can be treated by autoclave (absolute sterile) and sterilized with gamma-rays without losing its mechanical qualities

Outstanding resistance to UV, weather and aging

Flame-resistant

High thermal stability

Resistant to alcohols, fats and oils, halogenes, alkalis, acids

Not stable to aromatic hydrocarbons, ketones, amines, pyridine, dimethylformamide, hot alkalis, fuming sulfuric acid

Colour: nature, slightly translucent

Density: 1.75 g/cm3

Temperature range: -40 to +140 °C

Shore hardness D: 79°

Max. operating pressure: 10 bar at +20 °C

Water absorption: <0.04 %

Tensile strength: 38 - 50 N/mm2

Surface resistance: >1013 Ohm

Melt flow index MFR: 6 g/10 min.

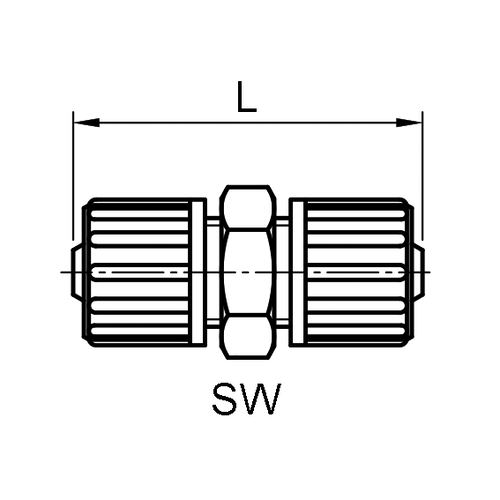

Item Image Tubing inside Ø
mm
Schlauch Außen-Ø
mm
L
mm
SW
mm
Werkstoff Einheit
Stück
Price
Euro*
Buy
42404
4 10 55 22 PP 3 42.00
42405
5 11 55 22 PP 3 42.00
42406
6 12 57 22 PP 3 74.00
42407
8 14 61 22 PP 2 82.00
42408
9 15 67 27 PP 2 81.00
42409
10 16 73 27 PP 2 110.00
42410
12 18 79 27 PP 1 61.00
42412
13 19 83 27 PP 1 61.00
42416
4 10 55 22 PVDF 3 71.00
42417
5 11 55 22 PVDF 3 71.00
42418
6 12 57 22 PVDF 3 87.00
42419
8 14 61 22 PVDF 3 119.00
42420
9 15 67 27 PVDF 3 119.00
42421
10 16 73 27 PVDF 2 99.00
42422
12 18 79 27 PVDF 2 110.00
42424
13 19 83 27 PVDF 2 110.00
