Butyl IIR Chemical Tubing
Product specification Rubber-elastic special butyl-caoutchouc compound Lowest permeability... more
Product specification
Rubber-elastic special butyl-caoutchouc compound
Lowest permeability to gases, steam, and air
Tenfold less air diffusion than comparable natural rubber tubing quality
Best resistance to abrasion
Good resistance to ozone, and weather
High damping capacity
Good thermal resistance
Best mechanical properties
Chemical resistance to acids and alkalis
Resistant to animal and vegetable oils and fats
Technical specification
Material: IIR (butyl-rubber; isobutylene-isoprene-rubber)

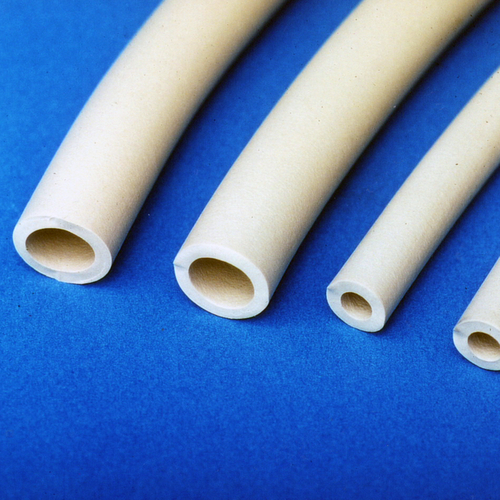

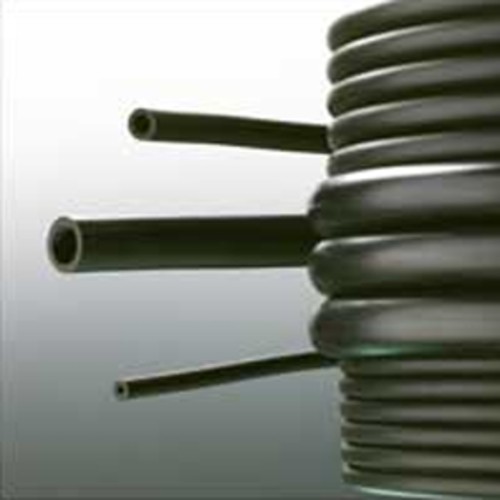

Colour: black or white
Shore hardness A: 60° ±5°
Temperature range: -30 to +100 °C, for a short time +140 °C
Ultimate elongation: >550 %
Tensile strength: >3 N/mm2
Tear propagation resistance: >8 N/mm
Compression set: <55 % at +70 °C / 24 h
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
Dichte g/cm³
|
Farbe |
Einheit m
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|
28144 |
|
3 | 7 | 1,6 ±0,2 | schwarz | 5 | 58.00 | |
28145 |
|
3 | 7 | 1,6 ±0,2 | schwarz | 15 | 148.00 | |
28146 |
|
6 | 10 | 1,6 ±0,2 | schwarz | 5 | 66.00 | |
28147 |
|
6 | 10 | 1,6 ±0,2 | schwarz | 15 | 165.00 | |
28148 |
|
6 | 14 | 1,6 ±0,2 | schwarz | 5 | 122.00 | |
28149 |
|
6 | 14 | 1,6 ±0,2 | schwarz | 15 | 293.00 | |
28150 |
|
8 | 12 | 1,6 ±0,2 | schwarz | 5 | 87.00 | |
28151 |
|
8 | 12 | 1,6 ±0,2 | schwarz | 15 | 208.00 | |
28152 |
|
10 | 14 | 1,6 ±0,2 | schwarz | 5 | 103.00 | |
28153 |
|
10 | 14 | 1,6 ±0,2 | schwarz | 15 | 247.00 | |
28154 |
|
12 | 16 | 1,6 ±0,2 | schwarz | 5 | 142.00 | |
28155 |
|
12 | 16 | 1,6 ±0,2 | schwarz | 15 | 341.00 | |
28158 |
|
6 | 12 | 1,4 | weiß | 5 | 149.00 | |
28159 |
|
6 | 12 | 1,4 | weiß | 15 | 357.00 | |
28162 |
|
8 | 12 | 1,4 | weiß | 5 | 139.00 | |
28163 |
|
8 | 12 | 1,4 | weiß | 15 | 331.00 | |
28166 |
|
10 | 15 | 1,4 | weiß | 5 | 160.00 | |
28167 |
|
10 | 15 | 1,4 | weiß | 15 | 382.00 |
