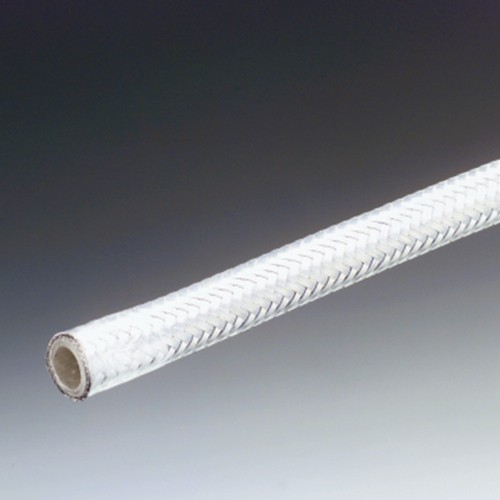

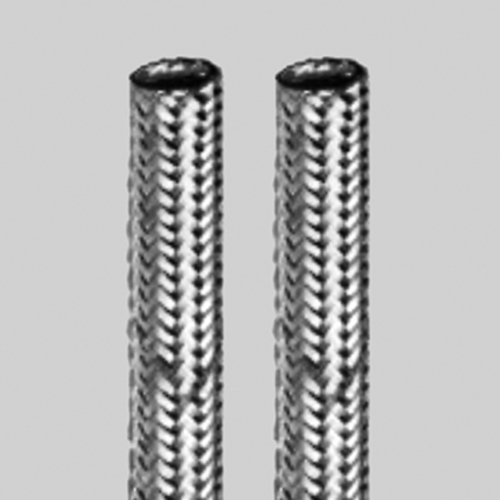

Silicone High-Temperature Chemical Pressure Tubing - steel wire braiding

Preview: Silicone High-Temperature Chemical Pressure Tubing - steel wire braiding Preview: Silicone High-Temperature Chemical Pressure Tubing - steel wire braiding
Silicone High-Temperature Chemical Pressure Tubing - steel wire braiding
Silicone High-Temperature Chemical Pressure Tubing - steel wire braiding

Description General Information
Description
Product specification Extremely robust and flexible pressure tubing High flexibility also in... more
Close menu

Product specification

Extremely robust and flexible pressure tubing

High flexibility also in the cold

Suitable for permanent high temperature applications

Good dielectric properties

Antiadhesive surface

Very good resistance to ozone, aging, and weather

Non-toxic, pyrogen-free

Technical specification

Material: Silicone (silicone rubber)

Colour: inside milky-transparent, outside silver

Shore hardness A: 60° ±5° (DIN 53505)

Temperature range: -50 to +190 °C, for a short time +250 °C

Bursting pressure: 45 bar at +20 °C

Insert: inside glass silk braiding, outside zinc-plated steel wire braiding

General Information
more
Close menu
No additional information available.
Item Image Inside Ø
mm
 Außen-Ø
mm
 max. Betr.-Druck1
bar
 min. Biegeradius
mm
 Einheit
m
 Price
Euro* 		Buy
334047
10 16 8 50 1 77.00
334048
10 16 8 50 3 205.00
334049
10 16 8 50 5 305.00
334050
13 19 8 70 1 92.00
334051
13 19 8 70 3 246.00
334052
13 19 8 70 5 364.00
