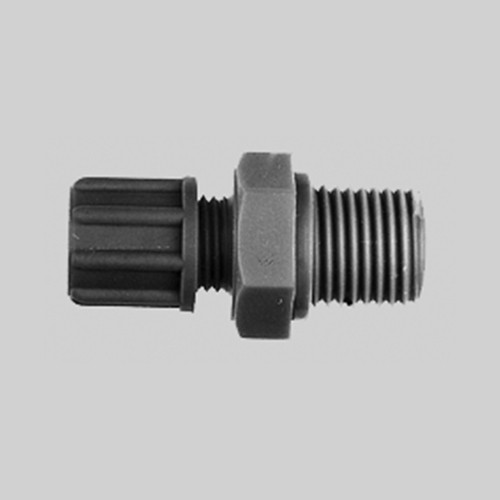

Straight Tube Connector with Male Thread made of PP or PVDF - conductive and antistatic

Straight Tube Connector with Male Thread made of PP or PVDF - conductive and antistatic

Product specification Tubing connection on one side, external G- or NPT-thread on the other... more

Close menu

Product specification

Tubing connection on one side, external G- or NPT-thread on the other side, conductive

General Information For use in chemical container and apparatus construction, electrical... more

Close menu

General Information

For use in chemical container and apparatus construction, electrical industry, electrochemistry and safety engineering.

Electrically conductive connectors for safe protection against electrostatic charge

UV-resistant and UV-impermeable

Material: PP-EC (polypropylene, electrically conductive)

Colour: black

Max. operating pressure: 10 bar at +20 °C

Temperature range: +5 to +90 °C

Leaking resistance: <10² Ohm

Material: PVDF-EC (polyvinylidene fluoride, electrically conductive)

Colour: black

Max. operating pressure: 10 bar at +20 °C

Temperature range: -40 to +140 °C

Leaking resistance: <10³ Ohm

Item	Tubing inside Ø mm	Schlauch Außen-Ø mm	Außengewinde	l1 mm	L1 mm	SW mm	Werkstoff	Einheit Stück	Price Euro*
341203	4	6	G 1/8"	8	23,5	14	PP	10	88.00
341204	4	6	G 1/4"	12	25	17	PP	10	111.00
341205	4	6	G 3/8"	12	26,5	22	PP	5	114.00
341206	4	6	G 1/2"	14	29	27	PP	5	125.00
341207	6	8	G 1/8"	8	28,5	17	PP	5	125.00
341208	6	8	G 1/4"	12	29	17	PP	5	125.00
341209	6	8	G 3/8"	12	30,5	22	PP	5	125.00
341210	6	8	G 1/2"	14	35	27	PP	5	134.00
341211	6	10	G 1/8"	8	32,5	19	PP	5	134.00
341212	6	10	G 1/4"	12	33	19	PP	5	134.00
341213	6	10	G 3/8"	12	33,5	22	PP	5	134.00
341214	6	10	G 1/2"	14	36	27	PP	5	142.00
341215	8	10	G 1/8"	8	29	32,5	PP	5	142.00
341216	8	10	G 1/4"	12	33	19	PP	5	142.00
341217	8	10	G 3/8"	12	33,5	22	PP	5	142.00
341218	8	10	G 1/2"	14	36	27	PP	5	148.00
341219	8	12	G 1/8"	8	36,5	22	PP	5	154.00
341220	8	12	G 1/4"	12	37	22	PP	5	168.00
341221	8	12	G 3/8"	12	37,5	22	PP	5	168.00
341222	8	12	G 1/2"	14	40	27	PP	5	191.00
341223	10	12	G 1/8"	8	36,5	22	PP	5	154.00
341224	10	12	G 1/4"	12	37	22	PP	5	168.00
341225	10	12	G 3/8"	12	37,5	22	PP	5	168.00
341226	10	12	G 1/2"	14	40	27	PP	5	191.00
341227	10	14	G 1/8"	8	42,5	24	PP	5	206.00
341228	10	14	G 1/4"	12	43	24	PP	5	226.00
341229	10	14	G 3/8"	12	43,5	24	PP	5	232.00
341230	10	14	G 1/2"	14	45	27	PP	5	242.00
341231	12	14	G 1/8"	8	42,5	24	PP	5	203.00
341232	12	14	G 1/4"	12	43	24	PP	5	209.00
341233	12	14	G 3/8"	12	43,5	24	PP	5	232.00
341234	12	14	G 1/2"	14	45	27	PP	5	239.00
341236	12	16	G 1/4"	12	46	27	PP	5	294.00
341237	12	16	G 3/8"	12	46	27	PP	5	305.00
341238	12	16	G 1/2"	14	47	27	PP	5	320.00
341241	4	6	NPT 1/8"	8	23,5	11	PP	10	85.00
341242	4	6	NPT 1/4"	12	25	17	PP	10	111.00
341243	4	6	NPT 3/8"	12	26,5	22	PP	5	105.00
341244	4	6	NPT 1/2"	14	29	27	PP	5	114.00
341245	6	8	NPT 1/8"	8	28,5	17	PP	5	122.00
341246	6	8	NPT 1/4"	12	29	17	PP	5	122.00
341247	6	8	NPT 3/8"	12	30,5	22	PP	5	122.00
341248	6	8	NPT 1/2"	14	35	27	PP	5	125.00
341249	6	10	NPT 1/8"	8	32,5	19	PP	5	128.00
341250	6	10	NPT 1/4"	12	33	19	PP	5	128.00
341251	6	10	NPT 3/8"	12	33,5	22	PP	5	131.00
341252	6	10	NPT 1/2"	14	36	27	PP	5	137.00
341253	8	10	NPT 1/8"	8	29	32,5	PP	5	111.00
341254	8	10	NPT 1/4"	12	33	19	PP	5	119.00
341255	8	10	NPT 3/8"	12	33,5	22	PP	5	122.00
341256	8	10	NPT 1/2"	14	36	27	PP	5	128.00
341257	8	12	NPT 1/8"	8	36,5	22	PP	5	137.00
341258	8	12	NPT 1/4"	12	37	22	PP	5	145.00
341259	8	12	NPT 3/8"	12	37,5	22	PP	5	160.00
341260	8	12	NPT 1/2"	14	40	27	PP	5	160.00
341261	10	12	NPT 1/8"	8	36,5	22	PP	5	137.00
341262	10	12	NPT 1/4"	12	37	22	PP	5	145.00
341263	10	12	NPT 3/8"	12	37,5	22	PP	5	160.00
341264	10	12	NPT 1/2"	14	40	27	PP	5	160.00
341265	10	14	NPT 1/8"	8	42,5	24	PP	5	183.00
341266	10	14	NPT 1/4"	12	43	24	PP	5	183.00
341267	10	14	NPT 3/8"	12	43,5	24	PP	5	191.00
341268	10	14	NPT 1/2"	14	45	27	PP	5	203.00
341269	12	14	NPT 1/8"	8	42,5	24	PP	5	203.00
341270	12	14	NPT 1/4"	12	43	24	PP	5	209.00
341271	12	14	NPT 3/8"	12	43,5	24	PP	5	223.00
341272	12	14	NPT 1/2"	14	45	27	PP	5	226.00
341274	12	16	NPT 1/4"	12	46	27	PP	5	262.00
341275	12	16	NPT 3/8"	12	46	27	PP	5	271.00
341276	12	16	NPT 1/2"	14	47	27	PP	5	288.00
341298	4	6	G 1/8"	8	23,5	11	PVDF	10	157.00
341299	4	6	G 1/4"	12	25	17	PVDF	5	128.00
341300	4	6	G 3/8"	12	26,5	22	PVDF	5	174.00
341301	4	6	G 1/2"	14	29	27	PVDF	5	180.00
341302	6	8	G 1/8"	8	28,5	17	PVDF	5	174.00
341303	6	8	G 1/4"	12	29	17	PVDF	5	186.00
341304	6	8	G 3/8"	12	30,5	22	PVDF	5	209.00
341305	6	8	G 1/2"	14	35	27	PVDF	5	236.00
341306	6	10	G 1/8"	8	32,5	19	PVDF	5	191.00
341307	6	10	G 1/4"	12	33	19	PVDF	5	203.00
341308	6	10	G 3/8"	12	33,5	22	PVDF	5	226.00
341309	6	10	G 1/2"	14	36	27	PVDF	5	197.00
341310	8	10	G 1/8"	8	29	32,5	PVDF	5	191.00
341311	8	10	G 1/4"	12	33	19	PVDF	5	203.00
341312	8	10	G 3/8"	12	33,5	22	PVDF	5	226.00
341313	8	10	G 1/2"	14	36	27	PVDF	5	197.00
341314	8	12	G 1/8"	8	36,5	22	PVDF	5	172.00
341315	8	12	G 1/4"	12	37	22	PVDF	5	186.00
341316	8	12	G 3/8"	12	37,5	22	PVDF	5	197.00
341317	8	12	G 1/2"	14	40	27	PVDF	5	246.00
341318	10	12	G 1/8"	8	36,5	22	PVDF	5	177.00
341319	10	12	G 1/4"	12	37	22	PVDF	5	181.00
341320	10	12	G 3/8"	12	37	22	PVDF	5	192.00
341321	10	12	G 1/2"	14	40	27	PVDF	5	201.00
341322	10	14	G 1/8"	8	42,5	24	PVDF	5	221.00
341323	10	14	G 1/4"	12	43	24	PVDF	5	230.00
341324	10	14	G 3/8"	12	43,5	24	PVDF	5	246.00
341325	10	14	G 1/2"	14	45	27	PVDF	5	299.00
341326	12	14	G 1/8"	8	42,5	24	PVDF	5	221.00
341327	12	14	G 1/4"	12	43	24	PVDF	5	230.00
341328	12	14	G 3/8"	12	43,5	24	PVDF	5	246.00
341329	12	14	G 1/2"	14	45	27	PVDF	5	299.00
341330	12	16	G 1/4"	12	46	27	PVDF	5	299.00
341331	12	16	G 3/8"	12	46	27	PVDF	5	305.00
341332	12	16	G 1/2"	14	47	27	PVDF	5	372.00
341333	4	6	NPT 1/8"	8	23,5	11	PVDF	10	157.00
341334	4	6	NPT 1/4"	12	25	17	PVDF	5	128.00
341335	4	6	NPT 3/8"	12	26,5	22	PVDF	5	174.00
341336	4	6	NPT 1/2"	14	29	27	PVDF	5	180.00
341337	6	8	NPT 1/8"	8	28,5	17	PVDF	5	174.00
341338	6	8	NPT 1/4"	12	29	17	PVDF	5	186.00
341339	6	8	NPT 3/8"	12	30,5	22	PVDF	5	209.00
341340	6	8	NPT 1/2"	14	35	27	PVDF	5	236.00
341341	6	10	NPT 1/8"	8	32,5	19	PVDF	5	191.00
341342	6	10	NPT 1/4"	12	33	19	PVDF	5	203.00
341343	6	10	NPT 3/8"	12	33,5	22	PVDF	5	226.00
341344	6	10	NPT 1/2"	14	36	27	PVDF	3	197.00
341345	8	10	NPT 1/8"	8	29	32,5	PVDF	5	191.00
341346	8	10	NPT 1/4"	12	33	19	PVDF	5	203.00
341347	8	10	NPT 3/8"	12	33,5	22	PVDF	5	226.00
341348	8	10	NPT 1/2"	14	36	27	PVDF	3	197.00
341349	8	12	NPT 1/8"	8	36,5	22	PVDF	3	172.00
341350	8	12	NPT 1/4"	12	37	22	PVDF	3	186.00
341351	8	12	NPT 3/8"	12	37,5	22	PVDF	3	197.00
341352	8	12	NPT 1/2"	14	40	27	PVDF	3	246.00
341353	10	12	NPT 1/8"	8	36,5	22	PVDF	3	177.00
341354	10	12	NPT 1/4"	12	37	22	PVDF	3	181.00
341355	10	12	NPT 3/8"	12	37	22	PVDF	3	192.00
341356	10	12	NPT 1/2"	14	40	27	PVDF	3	201.00
341357	10	14	NPT 1/8"	8	42,5	24	PVDF	3	221.00
341358	10	14	NPT 1/4"	12	43	24	PVDF	3	230.00
341359	10	14	NPT 3/8"	12	43,5	24	PVDF	3	246.00
341360	10	14	NPT 1/2"	14	45	27	PVDF	3	299.00
341361	12	14	NPT 1/8"	8	42,5	24	PVDF	3	221.00
341362	12	14	NPT 1/4"	12	43	24	PVDF	3	230.00
341363	12	14	NPT 3/8"	12	43,5	24	PVDF	3	246.00
341364	12	14	NPT 1/2"	14	45	27	PVDF	3	299.00
341365	12	16	NPT 1/4"	12	46	27	PVDF	3	299.00
341366	12	16	NPT 3/8"	12	46	27	PVDF	3	305.00
341180	12	16	NPT 1/2"	14	47	27	PVDF	3	372.00
