Straight Barb Connector with Male Thread made of PP - macro

Product specification Hose Nozzle with cylindrical male G-thread more

Product specification

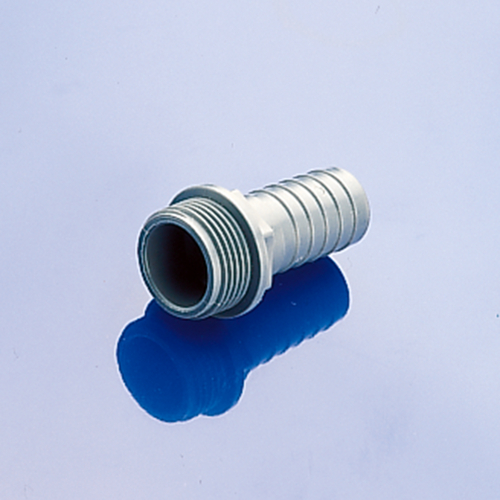

Hose Nozzle with cylindrical male G-thread

General Information Housing: light-grey, made of glass fibre reinforced PP... more

General Information

Housing: light-grey, made of glass fibre reinforced PP (polypropylene)

Max. operating pressure: 10 bar at +20 °C

Temperature range: 0 to +80 °C

Sterilization: autoclavable at +121 °C

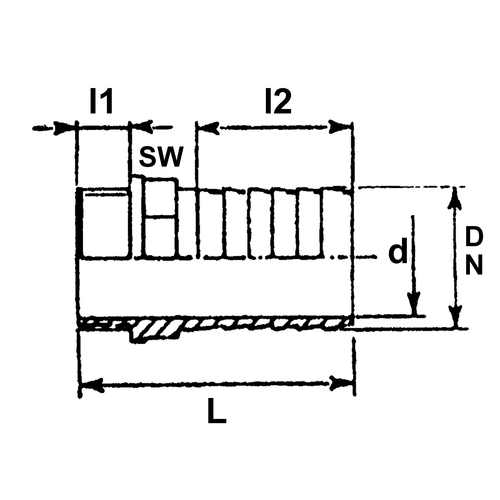

Item	Tubing inside Ø mm	Außengewinde	d mm	l1 mm	l2 mm	L mm	SW mm	Einheit Stück	Price Euro*
14297	13	G 1/2"	8,5	14	28	55	21	10	39.00
14298	16	G 1/2"	10,5	14	33	63	21	10	39.00
14299	20	G 1/2"	15	14	33	63,5	24	10	42.00
14300	16	G 3/4"	10,5	15	33	46	21	10	44.00
14301	12	G 3/4"	7,5	15	28	56	19	10	48.00
14302	20	G 3/4"	15	15	33	64	24	10	50.00
14303	22	G 1"	17	15	37	69,5	30	10	53.00
