Tubing for Autogenous Welding

Product specification Robust hoses for welding technology (welding, cutting and related... more

Product specification

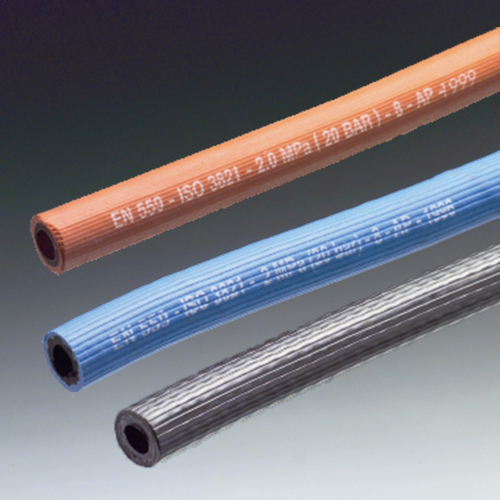

Robust hoses for welding technology (welding, cutting and related processes) in smaller systems.

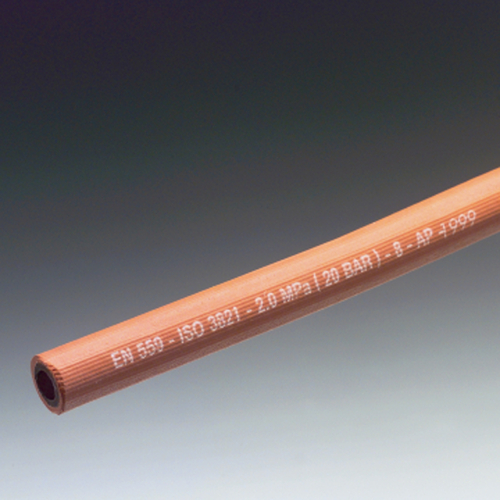

Red hose: Suitable for acetylene and other fuel gases (except LPG, MPS, natural gas, methane).

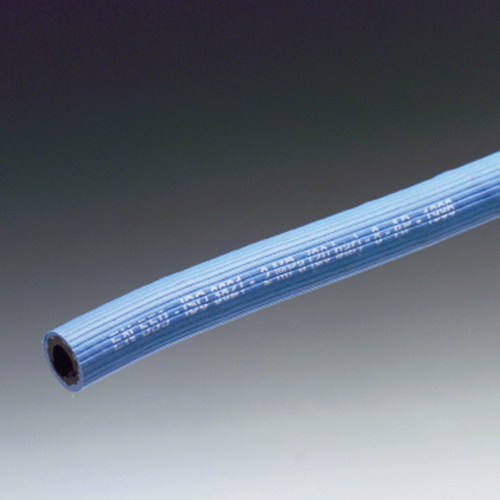

Blue hose: Suitable for oxygen.

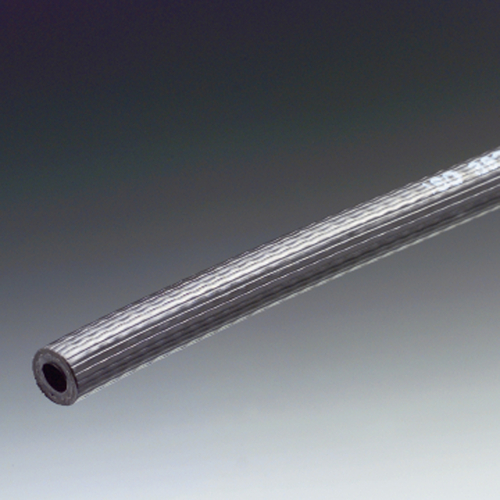

Black hose: Suitable for compressed air, nitrogen, argon, carbon dioxide (welding shielding gases).

Technical specification

Material:

Liner: EPDM (red), SBR/EPDM (blue), SBR/NR (black)

Jacket: EPDM (red and blue), SBR/EPDM (black)

Colour: inside black, outside depending on gas type red, blue or black

Temperature range: -30 to +80 °C

Insert: synthetic fabric

Max. operating pressure: 20 bar at +20 °C

Bursting pressure: 60 bar at +20 °C

Design: inside and outside smooth, but red and blue longitudinally ribbed

Regulations: EN ISO 3821:2010; EN 559:2003

No additional information available.
Item Image Inside Ø
mm
Außen-Ø
mm
min. Biegeradius
mm
Farbe Gasart Einheit
m
Price
Euro*
Buy
3339471
6,4 13,3 63 rot brennbare Gase 5 58.00
3339481
6,4 13,3 63 rot brennbare Gase 10 105.00
333949
6,4 13,3 63 blau Sauerstoff 5 65.00
333950
6,4 13,3 63 blau Sauerstoff 10 120.00
333951
6,4 13,3 63 schwarz nicht brennbare Gase 5 73.00
333952
6,4 13,3 63 schwarz nicht brennbare Gase 10 135.00
3339531
8 14,6 80 rot brennbare Gase 5 58.00
3339541
8 14,6 80 rot brennbare Gase 10 105.00
333955
8 14,6 80 blau Sauerstoff 5 65.00
333956
8 14,6 80 blau Sauerstoff 10 120.00
333957
8 15,3 80 schwarz nicht brennbare Gase 5 73.00
333958
8 15,3 80 schwarz nicht brennbare Gase 10 135.00
3339591
10 17 100 rot brennbare Gase 5 58.00
3339601
10 17 100 rot brennbare Gase 10 105.00
333961
10 17 100 blau Sauerstoff 5 65.00
333962
10 17 100 blau Sauerstoff 10 120.00
333963
10 17 100 schwarz nicht brennbare Gase 5 73.00
333964
10 17 100 schwarz nicht brennbare Gase 10 135.00
