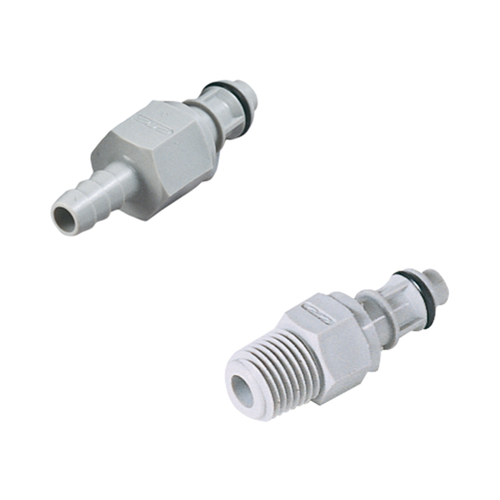

PP Quick-Disconnect Nipple, NW 7.2 mm

Product specification Male coupling part. With port or shut-off and hose nozzle or external... more

Product specification

Male coupling part. With port or shut-off and hose nozzle or external thread for piping connection. Can be combined with all female coupling parts of nominal width 7.2 mm.

General Information Quick-Disconnect Coupling THOMAFLUID ® -quick-disconnect coupling... more

General Information Quick-Disconnect Coupling

THOMAFLUID®-quick-disconnect coupling systems are excellently suited for connecting and disconnecting of tubes, apparatuses etc. The quick-disconnect couplings are easy to operate, connecting and disconnecting can be done by one hand. The coupling is self-locking when the nipple is plugged-in. For disconnection a short thumb pressure on the lock is sufficient to pull out the nipple easily. All nipples are fitted with an easily interchangeable, reliably sealing O-ring.

A complete operable THOMAFLUID®-quick-disconnect coupling system consists of a coupling part and a nipple part, both parts may be fitted with valves. A complete quick-disconnect coupling system locking at one side consists of a coupling part with shut-off and a nipple part with port, or a coupling part with port and a nipple part with shut-off. To get a coupling locking on both sides, a coupling part as well as a nipple part, both with shut-off, have to be obtained.

General Information PP

Use for microbiological testing equipment, electroplating liquids, sterilisation equipment, water pollution analysis.

PP allows higher chemical resistances for more demanding applications compared to POM. The coupling parts are also sterilizable with gamma rays.

Resistant to oils, petrol, acids etc.

General Information 7.2 mm nominal width

High-flow quick-disconnect coupling parts

Material:

Valve body: PP (polypropylene)

Gaskets: EPDM (ethylene-propylene-diene rubber)

Valve spring: stainless steel 316

Colour: anthracite gray

Nominal width: 7.2 mm

Plug diameter: approx. 11.0 mm

Temperature range: 0 to +70 °C

Max. operating pressure: 7.2 bar at +20 °C; 2.8 bar at +60 °C

Item Image Connection Ventil Länge
mm
Einheit
Stück
Price
Euro*
Buy

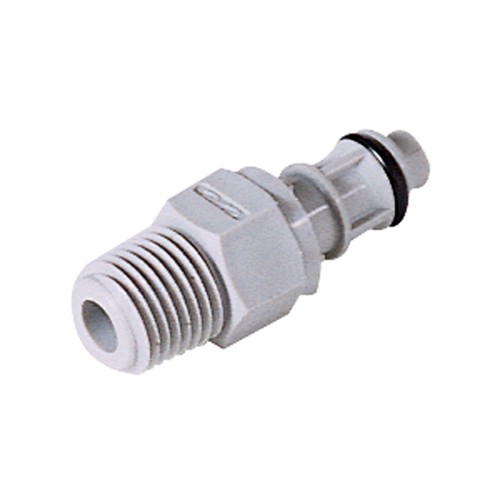

16111
PP Quick-Disconnect Nipple, NW 7.2 mm PP Quick-Disconnect Nipple, NW 7.2 mm
A-Gewinde NPT 1/4" mit 45 1 39.00
16112
PP Quick-Disconnect Nipple, NW 7.2 mm PP Quick-Disconnect Nipple, NW 7.2 mm
A-Gewinde NPT 3/8" mit 45 1 39.00
16113
PP Quick-Disconnect Nipple, NW 7.2 mm PP Quick-Disconnect Nipple, NW 7.2 mm
Tülle 6,4 mm ohne 34 1 26.00
16114
PP Quick-Disconnect Nipple, NW 7.2 mm PP Quick-Disconnect Nipple, NW 7.2 mm
Tülle 6,4 mm mit 53 1 39.00
16115
PP Quick-Disconnect Nipple, NW 7.2 mm PP Quick-Disconnect Nipple, NW 7.2 mm
Tülle 9,5 mm ohne 34 1 26.00

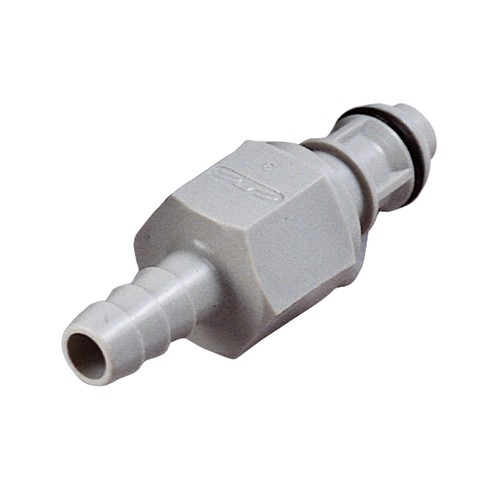

16116
PP Quick-Disconnect Nipple, NW 7.2 mm PP Quick-Disconnect Nipple, NW 7.2 mm
Tülle 9,5 mm mit 48 1 39.00
