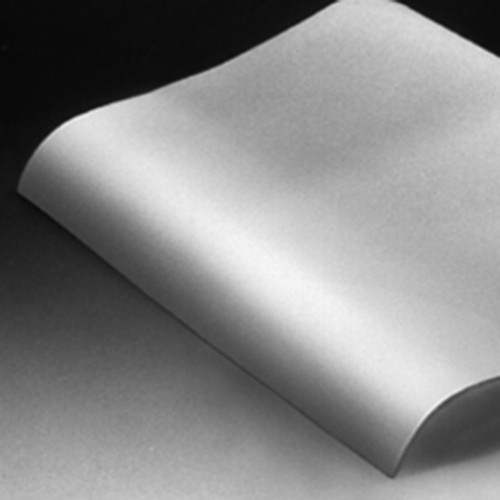

PVDF Film

PVDF Film
Product specification Excellent UV resistance Good beta and gamma radiation resistance Good... more

Product specification

Excellent UV resistance

Good beta and gamma radiation resistance

Good resistance to alcohols, fats and oils, halogenes, alkalis, acids; not stable to ketones, aromatic hydrocarbons

Technical specification

Material: PVDF (polyvinylidene fluoride), piezoelectric

Temperature range: -40 to +160 °C, for a short time +220 °C

Density: 1.76 g/cm3

Dielectric strength: 150 kV/mm

Dielectric constant: 8.4 at 1 MHz

Piezocoefficients (only 0.01 and 0.028 mm): d31 biaxial 50 pC x N-1; d32 uniaxial 18; biaxial 8 pC x N-1; 33 uniaxial 2; biaxial 8 pC x N-1

No additional information available.
Item Image Thickness
mm
Gewicht
g
Abmessung
mm
Einheit
Stück
Price
Euro*
Buy
48978
0,01 0,011 25 x 25 1 162.00
48979
0,01 0,044 50 x 50 1 304.00
48980
0,01 0,176 100 x 100 1 466.00
48981
0,028 0,123 50 x 50 1 137.00
48982
0,028 0,493 100 x 100 1 341.00
48983
0,028 1,971 200 x 200 1 477.00
489841
0,5 8,8 100 x 100 1 121.00
489851
0,5 19,8 150 x 150 1 130.00
489861
0,5 72,5 300 x 300 1 376.00
489871
0,5 220 600 x 600 1 770.00
