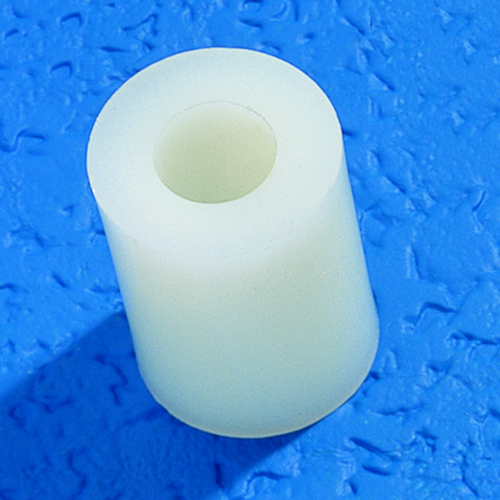

Spacer made of PA (I-Ø: 10.5 mm)

Technical specification Material: PA 6 (polyamide 6) Colour: natural more

Close menu

Technical specification

Material: PA 6 (polyamide 6)

Colour: natural

General Information Very good alternative to metal parts Very large application area due to... more

Close menu

General Information

Very good alternative to metal parts

Very large application area due to universal application possibilities

Shock-absorbing and vibration-damping

Light, resistant to vibration, easy maintenance

Preferably used in electronics due to their dielectrical properties

Available in the most common sizes

Chemical features:

Resistant to aromatic and aliphatic hydrocarbons, fuels, mineral oils and mineral lubricants; suitable for alkohols, esters, ketones, ethers and amines; good resistance to weak alkalis, but only moderate resistance to strong alkalis; limited resistance to weak mineral and organic acids; not resistant to oxidizing acids, strong mineral and organic acids as well as phenols; limited resistance to hydrolysis

Material specification:

Polyamide is an elastic, tough, loadable, but notch-sensitive material

Impact resistant

Resistant to abrasion and cold

High fatigue strength and excellent resilience

High wear resistance and good mechanical damping capacity

Insulating properties and an amazingly high tensile strength

Connecting parts made of polyamide and similar plastics protect from rust and corrosion damage

Polyamide can also be used in the food processing industry and in medical fields

PA 6 features a higher impact resistance compared to PA 6.6

PA 6 has the highest water absorption of all common plastics up to 9 to 10 % (followed by PA 6.6 with 8 to 9 %), thus considerably increased toughness, flexibility and elongation. However, the strength of the material can therefore be reduced by up to 10 %.

Material: PA 6 (polyamide 6)

Colour: natural

Density: approx. 1.14 g/cm³

Temperature range: -40 to +85 °C, for a short time +180 °C

Melting temperature: +220 °C (ISO 11357)

Yield stress: 75 MPa (ISO 527)

Elongation at break: >50 % (ISO 527)

Elastic modulus: 3,200 MPa (ISO 527)

Impact resistance: without break (DIN 53453)

Notch impact strength (Charpy): >3 kJ/m² (ISO 179)

Ball pressure hardness: 160 N/mm² (ISO 2039-1)

Shore hardness D: 82° (DIN 53505)

Dielectric strength: 20 kV/mm (IEC 60243)

Dielectric constant: 3.9 at 50 Hz (IEC 60250)

Surface resistance: 10¹³ Ohm (IEC 60093)

Volume resistivity: 10¹⁵ Ohm x cm (IEC 60093)

Comparative tracking index (CTI): >600 (DIN 53480)

Dielectric loss factor (at 50 Hz): 0.02 (specimen dry)

Water absorption: up to 10 % (during storage in water) (DIN 53472)

Flammability rating: UL 94 HB

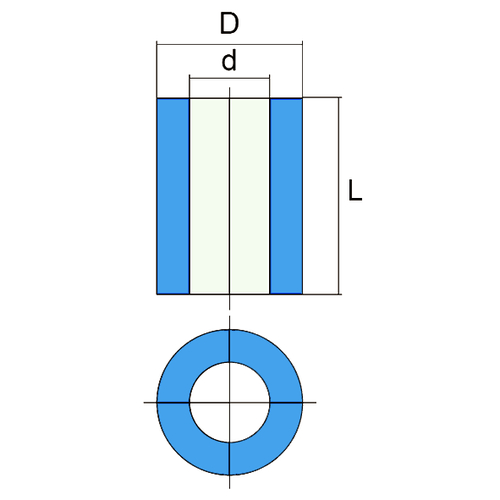

Item	d mm	D mm	L mm	Unit piece	Price Euro*
308399	10,5	15	1	50	35.00
308400	10,5	15	1	100	59.00
308401	10,5	15	2	50	36.00
308402	10,5	15	2	100	59.00
308403	10,5	15	3	50	36.00
308404	10,5	15	3	100	59.00
308405	10,5	15	4	50	36.00
308406	10,5	15	4	100	59.00
308407	10,5	15	5	50	38.00
308408	10,5	15	5	100	63.00
308409	10,5	15	6	50	38.00
308410	10,5	15	6	100	63.00
308411	10,5	15	7	50	38.00
308412	10,5	15	7	100	63.00
308413	10,5	15	8	50	42.00
308414	10,5	15	8	100	73.00
308415	10,5	15	9	50	42.00
308416	10,5	15	9	100	73.00
308417	10,5	15	10	50	42.00
308418	10,5	15	10	100	73.00
308419	10,5	15	11	50	43.00
308420	10,5	15	11	100	75.00
308421	10,5	15	12	50	43.00
308422	10,5	15	12	100	75.00
308423	10,5	15	13	50	43.00
308424	10,5	15	13	100	75.00
308425	10,5	15	14	50	43.00
308426	10,5	15	14	100	75.00
308427	10,5	15	15	50	44.00
308428	10,5	15	15	100	78.00
308429	10,5	15	16	50	44.00
308430	10,5	15	16	100	78.00
308431	10,5	15	17	50	48.00
308432	10,5	15	17	100	82.00
308433	10,5	15	18	50	52.00
308434	10,5	15	18	100	88.00
308435	10,5	15	19	50	52.00
308436	10,5	15	19	100	88.00
308437	10,5	15	20	50	55.00
308438	10,5	15	20	100	95.00
308439	10,5	15	21	50	55.00
308440	10,5	15	21	100	95.00
308441	10,5	15	22	50	55.00
308442	10,5	15	22	100	95.00
308443	10,5	15	23	50	59.00
308444	10,5	15	23	100	100.00
308445	10,5	15	24	50	59.00
308446	10,5	15	24	100	100.00
308447	10,5	15	25	50	59.00
308448	10,5	15	25	100	100.00
308449	10,5	15	26	50	59.00
308450	10,5	15	26	100	100.00
308451	10,5	15	27	50	64.00
308452	10,5	15	27	100	109.00
308453	10,5	15	28	50	64.00
308454	10,5	15	28	100	109.00
308455	10,5	15	29	25	35.00
308456	10,5	15	29	50	58.00
308457	10,5	15	30	25	35.00
308458	10,5	15	30	50	58.00
308459	10,5	21	1	50	45.00
308460	10,5	21	1	100	76.00
308461	10,5	21	2	50	24.00
308462	10,5	21	2	100	35.00
308463	10,5	21	3	50	24.00
308464	10,5	21	3	100	35.00
308465	10,5	21	4	50	24.00
308466	10,5	21	4	100	35.00
308467	10,5	21	5	50	30.00
308468	10,5	21	5	100	52.00
308469	10,5	21	6	50	30.00
308470	10,5	21	6	100	52.00
308471	10,5	21	7	50	35.00
308472	10,5	21	7	100	60.00
308473	10,5	21	8	50	35.00
308474	10,5	21	8	100	60.00
308475	10,5	21	9	50	39.00
308476	10,5	21	9	100	67.00
308477	10,5	21	10	50	39.00
308478	10,5	21	10	100	67.00
308479	10,5	21	11	50	39.00
308480	10,5	21	11	100	67.00
308481	10,5	21	12	50	47.00
308482	10,5	21	12	100	79.00
308483	10,5	21	13	50	47.00
308484	10,5	21	13	100	79.00
308485	10,5	21	14	50	47.00
308486	10,5	21	14	100	79.00
308487	10,5	21	15	50	51.00
308488	10,5	21	15	100	90.00
308489	10,5	21	16	50	51.00
308490	10,5	21	16	100	90.00
308491	10,5	21	17	50	58.00
308492	10,5	21	17	100	99.00
308493	10,5	21	18	50	58.00
308494	10,5	21	18	100	99.00
308495	10,5	21	19	25	34.00
308496	10,5	21	19	50	58.00
308497	10,5	21	20	25	34.00
308498	10,5	21	20	50	58.00
308499	10,5	21	21	25	37.00
308500	10,5	21	21	50	63.00
308501	10,5	21	22	25	37.00
308502	10,5	21	22	50	63.00
308503	10,5	21	23	25	37.00
308504	10,5	21	23	50	63.00
308505	10,5	21	24	25	42.00
308506	10,5	21	24	50	71.00
308507	10,5	21	25	25	42.00
308508	10,5	21	25	50	71.00
308509	10,5	21	26	25	45.00
308510	10,5	21	26	50	78.00
308511	10,5	21	27	25	45.00
308512	10,5	21	27	50	78.00
308513	10,5	21	28	25	45.00
308514	10,5	21	28	50	78.00
308515	10,5	21	29	25	48.00
308516	10,5	21	29	50	80.00
308517	10,5	21	30	25	48.00
308518	10,5	21	30	50	80.00
308519	10,5	30	1	25	35.00
308520	10,5	30	1	50	60.00
308521	10,5	30	2	25	26.00
308522	10,5	30	2	50	43.00
308523	10,5	30	3	25	26.00
308524	10,5	30	3	50	43.00
308525	10,5	30	4	25	38.00
308526	10,5	30	4	50	65.00
308527	10,5	30	5	25	38.00
308528	10,5	30	5	50	65.00
308529	10,5	30	6	25	47.00
308530	10,5	30	6	50	78.00
308531	10,5	30	7	25	47.00
308532	10,5	30	7	50	78.00
308533	10,5	30	8	25	58.00
308534	10,5	30	8	50	97.00
308535	10,5	30	9	25	58.00
308536	10,5	30	9	50	97.00
308537	10,5	30	10	20	50.00
308538	10,5	30	10	40	83.00
308539	10,5	30	11	20	50.00
308540	10,5	30	11	40	83.00
308541	10,5	30	12	20	56.00
308542	10,5	30	12	40	93.00
308543	10,5	30	13	20	56.00
308544	10,5	30	13	40	93.00
308545	10,5	30	14	20	61.00
308546	10,5	30	14	40	102.00
308547	10,5	30	15	20	61.00
308548	10,5	30	15	40	102.00
308549	10,5	30	16	10	28.00
308550	10,5	30	16	20	51.00
308551	10,5	30	17	10	28.00
308552	10,5	30	17	20	51.00
308553	10,5	30	18	10	32.00
308554	10,5	30	18	20	57.00
308555	10,5	30	19	10	32.00
308556	10,5	30	19	20	57.00
308557	10,5	30	20	10	32.00
308558	10,5	30	20	20	57.00
308559	10,5	30	21	10	34.00
308560	10,5	30	21	20	59.00
308561	10,5	30	22	10	34.00
308562	10,5	30	22	20	59.00
308563	10,5	30	23	10	36.00
308564	10,5	30	23	20	65.00
308565	10,5	30	24	10	36.00
308566	10,5	30	24	20	65.00
308567	10,5	30	25	10	38.00
308568	10,5	30	25	20	68.00
308569	10,5	30	26	10	38.00
308570	10,5	30	26	20	68.00
308571	10,5	30	27	10	40.00
308572	10,5	30	27	20	72.00
308573	10,5	30	28	10	40.00
308574	10,5	30	28	20	72.00
308575	10,5	30	29	10	47.00
308576	10,5	30	29	20	83.00
308577	10,5	30	30	10	47.00
308578	10,5	30	30	20	83.00
