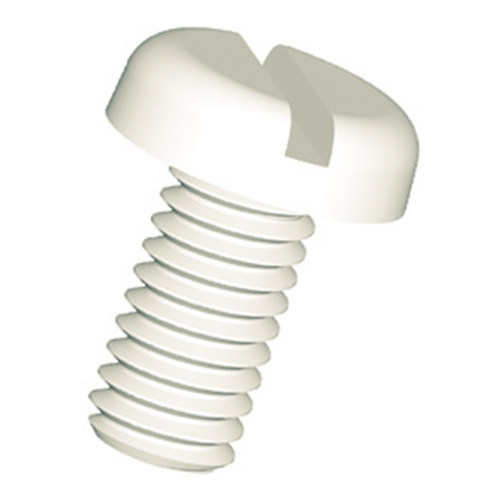

Slotted Pan Head Screw (DIN 85) made of PVDF

Technical specification Material: PVDF (polyvinylidene fluoride) Colour:... more

Technical specification

Material: PVDF (polyvinylidene fluoride)

Colour: natural, slightly translucent

Regulations: DIN 85, ISO 1580

General Information High-quality technical plastic for chemical apparatus and machine... more

General Information

High-quality technical plastic for chemical apparatus and machine building, especially in the petrochemical, metallurgical, pharmaceutical, food processing, paper and textile industry as well as in the nuclear technology.

Chemical features:

Resistant to alcohols, fats and oils, alkalis, acids and halogens; limited resistance to oxidizing acids; poor resistance to ketones, amines, pyridine, dimethyl formamide, hot alkalis and fuming sulfuric acid.

Material specification:

PVDF has similar properties than the related PTFE (temperature range -60 °C to +150 °C)

PVDF is vastly superior to all other fluoropolymers concerning stability, stiffness and creep strength as well as resistance to high-energy radiation, but sliding and electrical insulating properties are a little weaker.

Excellent resistance to UV, aging and weather

Good abrasion resistance

Good dielectric strength

Good dimensional stability due to strong hardness

High stability and impact resistance even at low temperatures

Low dissipation factor

Can not be solvent cemented

Water resistant

Flame resistant

Physiologically safe

Meets highest purity requirements

Material: PVDF (polyvinylidene fluoride)

Colour: natural, slightly translucent

Density: 1.76 g/cm3 (DIN ISO/IEC 1183)

Temperature range: -40 to +150 °C, for a short time +160 °C

Melting point: +175 °C (ASTM 03418)

Elastic modulus: 2,500 MPa (ISO 527)

Yield stress: 57 N/mm2 (DIN 53455)

Tearing strength: 50 N/mm2 (DIN 53455)

Elongation at break: 12 % (DIN 53455)

Coefficient of sliding friction against steel (dry): approx. 0.20 - 0.35

Water absorption: <0.04 % (ISO 62), storage in water

Shore hardness D: 79° (ASTM D2240)

Impact resistance: 300 - 450 kJ/m2 (DIN 53448)

Volume resistivity: 1013 Ohm x cm (IEC 60093)

Dielectric strength: 40 kV/mm (IEC 60093)

Flammability: hardly inflammable, self-extinguishing

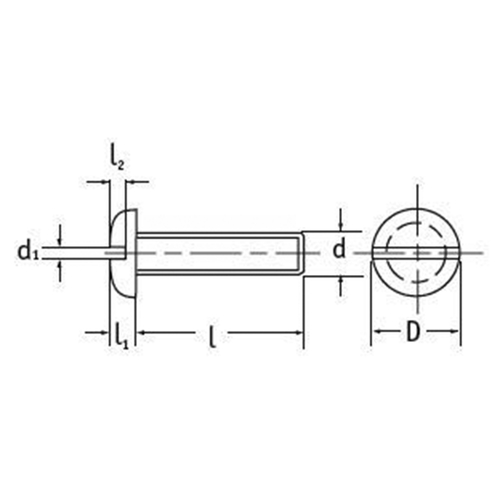

Item Image External thread Gewindelänge
mm
D
mm
l1
mm
d1
mm
l2
mm
Einheit
Stück
Price
Euro*
Buy
334955
M5 x 0,8 6 9,5 3 1,2 1,2 25 52.00
334956
M5 x 0,8 6 9,5 3 1,2 1,2 50 88.00
334957
M5 x 0,8 8 9,5 3 1,2 1,2 25 52.00
334958
M5 x 0,8 8 9,5 3 1,2 1,2 50 88.00
334959
M5 x 0,8 10 9,5 3 1,2 1,2 25 52.00
334960
M5 x 0,8 10 9,5 3 1,2 1,2 50 88.00
334961
M5 x 0,8 12 9,5 3 1,2 1,2 25 52.00
334962
M5 x 0,8 12 9,5 3 1,2 1,2 50 88.00
334963
M5 x 0,8 16 9,5 3 1,2 1,2 25 52.00
334964
M5 x 0,8 16 9,5 3 1,2 1,2 50 88.00
334965
M5 x 0,8 20 9,5 3 1,2 1,2 25 54.00
334966
M5 x 0,8 20 9,5 3 1,2 1,2 50 90.00
334967
M5 x 0,8 25 9,5 3 1,2 1,2 25 54.00
334968
M5 x 0,8 25 9,5 3 1,2 1,2 50 90.00
334969
M5 x 0,8 30 9,5 3 1,2 1,2 25 54.00
334970
M5 x 0,8 30 9,5 3 1,2 1,2 50 90.00
334971
M5 x 0,8 40 9,5 3 1,2 1,2 25 54.00
334972
M5 x 0,8 40 9,5 3 1,2 1,2 50 90.00
334973
M6 x 1 6 12 3,6 1,6 1,4 10 52.00
334974
M6 x 1 6 12 3,6 1,6 1,4 25 110.00
334975
M6 x 1 8 12 3,6 1,6 1,4 10 52.00
334976
M6 x 1 8 12 3,6 1,6 1,4 25 110.00
334977
M6 x 1 10 12 3,6 1,6 1,4 10 52.00
334978
M6 x 1 10 12 3,6 1,6 1,4 25 110.00
334979
M6 x 1 12 12 3,6 1,6 1,4 10 52.00
334980
M6 x 1 12 12 3,6 1,6 1,4 25 110.00
334981
M6 x 1 16 12 3,6 1,6 1,4 10 54.00
334982
M6 x 1 16 12 3,6 1,6 1,4 25 114.00
334983
M6 x 1 20 12 3,6 1,6 1,4 10 54.00
334984
M6 x 1 20 12 3,6 1,6 1,4 25 114.00
334985
M6 x 1 25 12 3,6 1,6 1,4 10 54.00
334986
M6 x 1 25 12 3,6 1,6 1,4 25 114.00
334987
M6 x 1 30 12 3,6 1,6 1,4 10 58.00
334988
M6 x 1 30 12 3,6 1,6 1,4 25 122.00
334989
M6 x 1 40 12 3,6 1,6 1,4 10 58.00
334990
M6 x 1 40 12 3,6 1,6 1,4 25 122.00
334991
M6 x 1 50 12 3,6 1,6 1,4 10 58.00
334992
M6 x 1 50 12 3,6 1,6 1,4 25 122.00
334993
M6 x 1 60 12 3,6 1,6 1,4 10 58.00
334994
M6 x 1 60 12 3,6 1,6 1,4 25 122.00
334995
M6 x 1 80 12 3,6 1,6 1,4 10 65.00
334996
M6 x 1 80 12 3,6 1,6 1,4 25 137.00
334997
M8 x 1,25 10 16 4,8 2 1,9 10 65.00
334998
M8 x 1,25 10 16 4,8 2 1,9 25 137.00
334999
M8 x 1,25 16 16 4,8 2 1,9 10 69.00
335000
M8 x 1,25 16 16 4,8 2 1,9 25 144.00
335001
M8 x 1,25 20 16 4,8 2 1,9 10 69.00
335002
M8 x 1,25 20 16 4,8 2 1,9 25 144.00
335003
M8 x 1,25 25 16 4,8 2 1,9 10 69.00
335004
M8 x 1,25 25 16 4,8 2 1,9 25 144.00
335005
M8 x 1,25 30 16 4,8 2 1,9 10 71.00
335006
M8 x 1,25 30 16 4,8 2 1,9 25 150.00
335007
M8 x 1,25 35 16 4,8 2 1,9 10 71.00
335008
M8 x 1,25 35 16 4,8 2 1,9 25 150.00
335009
M8 x 1,25 40 16 4,8 2 1,9 10 71.00
335010
M8 x 1,25 40 16 4,8 2 1,9 25 150.00
335011
M8 x 1,25 50 16 4,8 2 1,9 10 75.00
335012
M8 x 1,25 50 16 4,8 2 1,9 25 159.00
335013
M8 x 1,25 60 16 4,8 2 1,9 10 75.00
335014
M8 x 1,25 60 16 4,8 2 1,9 25 159.00
335015
M8 x 1,25 80 16 4,8 2 1,9 10 75.00
335016
M8 x 1,25 80 16 4,8 2 1,9 25 159.00
335017
M10 x 1,5 16 20 6 2,5 2,4 10 105.00
335018
M10 x 1,5 16 20 6 2,5 2,4 25 229.00
335019
M10 x 1,5 20 20 6 2,5 2,4 10 105.00
335020
M10 x 1,5 20 20 6 2,5 2,4 25 229.00
335021
M10 x 1,5 30 20 6 2,5 2,4 10 105.00
335022
M10 x 1,5 30 20 6 2,5 2,4 25 229.00
335023
M10 x 1,5 40 20 6 2,5 2,4 10 112.00
335024
M10 x 1,5 40 20 6 2,5 2,4 25 238.00
335025
M10 x 1,5 50 20 6 2,5 2,4 10 112.00
335026
M10 x 1,5 50 20 6 2,5 2,4 25 238.00
335027
M10 x 1,5 60 20 6 2,5 2,4 10 112.00
335028
M10 x 1,5 60 20 6 2,5 2,4 25 238.00
335029
M10 x 1,5 70 20 6 2,5 2,4 10 116.00
335030
M10 x 1,5 70 20 6 2,5 2,4 25 244.00
335031
M10 x 1,5 80 20 6 2,5 2,4 10 116.00
335032
M10 x 1,5 80 20 6 2,5 2,4 25 244.00
