Masterflex®-Pump Head with Short Shaft

Preview: Masterflex®-Pump Head with Short Shaft Preview: Masterflex®-Pump Head with Short Shaft
Masterflex®-Pump Head with Short Shaft
Masterflex®-Pump Head with Short Shaft

Description General Information
Description
Product specification The pump heads made of glass-clear Lexan ® polycarbonate consist... more
Close menu

Product specification

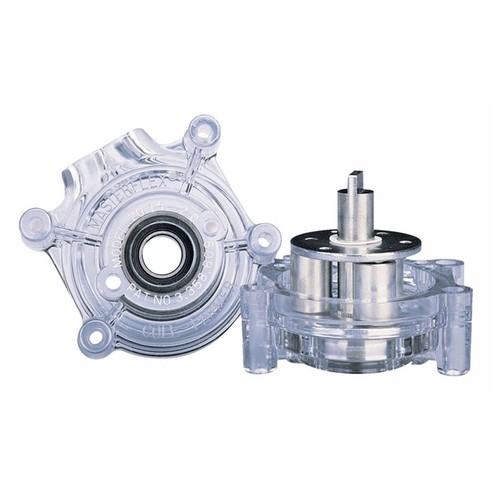

The pump heads made of glass-clear Lexan® polycarbonate consist of two identical housing parts with fitted in maintenance-free ball bearings, a pipe identical for all housing dimensions, and the screw joints.

The pump heads are suitable for the THOMAFLUID® peristaltic pumps Cat. No. 90411 and 333900.

It can be connected in series with multiple heads in a row.

General Information
more
Close menu
No additional information available.
Item Image Tubing inside Ø
mm
 Schlauch Außen-Ø
mm
 Einheit
Stück
 max. FL bei 1 UpM
ml/min.
 max. FL bei 5 UpM
ml/min.
 max. FL bei 17 UpM
ml/min.
 max. FL bei 50 UpM
ml/min.
 max. FL bei 100 UpM
ml/min.
 Price
Euro* 		Buy
97023
0,8 4 1 0,06 0,36 1,2 3,6 6 464.00
97024
1,6 4,8 1 0,21 1,3 4,2 13 21 464.00
97026
3,2 6,4 1 0,8 4,8 16 48 80 464.00
97025
4,8 9,5 1 1,7 10 34 150 170 860.00
97027
6,4 9,5 1 2,8 17 46 170 280 464.00
97028
7,9 11,1 1 3,8 23 76 230 380 464.00
