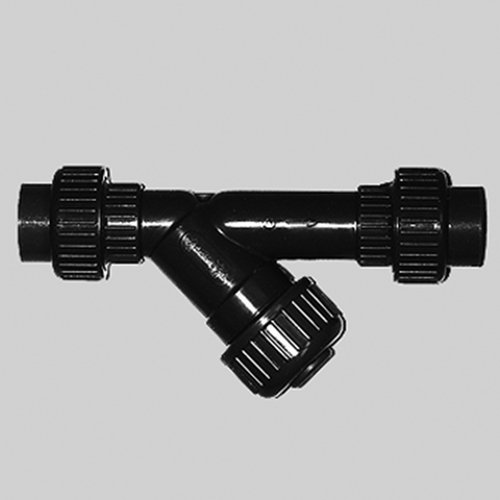

The strainers are developed for mounting in PVC-U piping.

All valve parts are made of PVC-U. The material does not contain plasticizers and meets the recommendations of the Federal Health Office (Federal Health Gazette 1964, No. 23).

Technical specification

Connection set: Screw joint with cementing socket, PVC-U connecting nuts, insert parts, screw-in components and EPDM O-rings on both sides.

Sieve cage: PVC-U

Sieve: ETFE (ethylene-tetrafluoroethylene) mesh size 0.5 mm; others on request

General Information Use in process engineering and technology, chemical industry, transport... more

Close menu

General Information

Use in process engineering and technology, chemical industry, transport of chemicals, desulfurization and denitrification systems, sewage purification, water purification, environmental technology, hygiene technology and sanitary engineering.

In the above mentioned areas they serve as safety and cleaning devices on containers, piping and pump systems.

THOMAFLUID^®-strainers made of PVC-U, PP or PVDF are indispensable wherever the transport of soiled media is required. They reliably prevent operating troubles by catching contaminations from the medium. The strainers serve for plant protection ensuring avoidance of dirt deposits. They are metal-free, thus preventing media oxidation. The use of high-quality materials in housing and screen ensures break resistance and corrosion resistance. The disassembly without using tools allows a quick and easy cleaning. The strainers are of simple construction, thus maintenance-free and feature a long service life.

Strainers protect sensitive components used in plants and sanitary engineering against contamination. The dirt is filtered out of the medium by a filter element (screen tube) with accordingly defined filtration rating.

Leak-free cleaning of liquid and gaseous media.

All medium-contacting parts are made of plastics with high resistance to chemicals. They are particularly suitable for applications where aggressive media are to be conveyed and blocked.

The connection of PVC fittings to piping is effected at the first application by adhesive bonding of the connections with the pipe, in the case of PP and PVDF fittings connection and pipe are welded together. Once the fittings are fixed to pipes, they can be easily removed from the pipe by disconnecting the screw joint.

Strainer flat-seat valve with soft elastomer gasket

Strainer O-ring serves for sealing of the housing upper part

PVC-U (rigid polyvinyl chloride): Resistant to most alkalis, acids, salt solutions and water-miscible organic compounds. Not resistant to aromatic and chlorinated hydrocarbons.

Polybutene: Resistant to aqueous solutions of acids, salts, alkalis and a lot of organic solvents. Not resistant to concentrated, oxidizing acids.

PVDF (polyvinylidene fluoride): Resistant to acids, salt solutions, aliphatic and aromatic (chlorinated) hydrocarbons, halogenes and alkohols, but only of limited resistance to ketones, esters, ethers, and not usable for organic bases and alkalis.

PTFE (polytetrafluoroethylene): PTFE is resistant to most chemicals.

FPM (fluorinated rubber): High chemical resistance to all kinds of solvents. Not suitable for hot steam, organic acids and strong bases.

PP (polypropylene): Resistant to aqueous solutions of acids, salts, alkalis and a lot of organic solvents. Not resistant to concentrated, oxidizing acids.

FEP (fluoroethylene-propylene) and ETFE (ethylene-tetrafluoroethylene): FEP and ETFE are resistant to most chemicals.

Material of housing: PVC-U, PP, PVDF (injection-molded)

Temperature range:

PVC-U up to +60 °C; Polybuton up to +90 °C; PVDF up to +100 °C; PTFE up to +250 °C; FPM up to +150 °C; PP up to +90 °C; FEP and ETFE up to +150 °C

Connection: The screw joints on both sides contain O-seals, insert parts and cap nuts. The fittings are supplied as complete unit with the screw joint. They are fitted with end fittings for fastening to pipes.

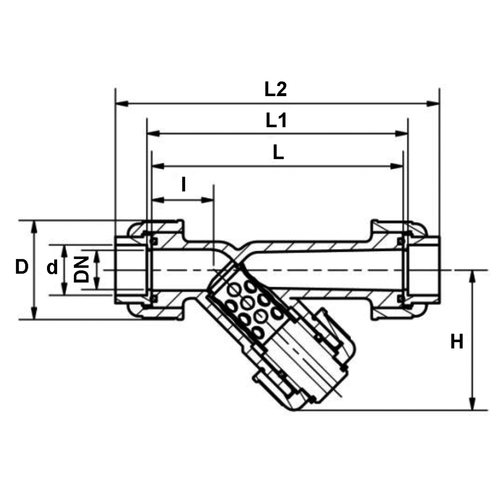

Item	d mm	NW mm	External thread	H mm	l mm	L mm	L1 mm	L2 mm	Maschenweite µm	Einheit Stück	Price Euro*
303436	20	15	G 1/2"	75	36	130	140	168	500	1	162.00
303437	20	15	G 1/2"	75	36	130	140	168	1.000	1	162.00
303438	20	15	G 1/2"	75	36	130	140	168	1.500	1	162.00
303439	20	15	G 1/2"	75	36	130	140	168	2.000	1	162.00
303440	25	20	G 3/4"	80	36	150	160	192	500	1	170.00
303441	25	20	G 3/4"	80	36	150	160	192	1.000	1	170.00
303442	25	20	G 3/4"	80	36	150	160	192	1.500	1	170.00
303443	25	20	G 3/4"	80	36	150	160	192	2.000	1	170.00
303444	32	25	G 1"	90	41	160	170	206	500	1	195.00
303445	32	25	G 1"	90	41	160	170	206	1.000	1	195.00
303446	32	25	G 1"	90	41	160	170	206	1.500	1	195.00
303447	32	25	G 1"	90	41	160	170	206	2.000	1	195.00
303448	40	32	G 1 1/4"	110	45	180	190	230	500	1	232.00
303449	40	32	G 1 1/4"	110	45	180	190	230	1.000	1	232.00
303450	40	32	G 1 1/4"	110	45	180	190	230	1.500	1	232.00
303451	40	32	G 1 1/4"	110	45	180	190	230	2.000	1	232.00
303452	50	40	G 1 1/2"	128	51	200	210	256	500	1	280.00
303453	50	40	G 1 1/2"	128	51	200	210	256	1.000	1	280.00
303454	50	40	G 1 1/2"	128	51	200	210	256	1.500	1	280.00
303455	50	40	G 1 1/2"	128	51	200	210	256	2.000	1	280.00
303456	63	50	G 2"	150	60	230	240	294	500	1	324.00
303457	63	50	G 2"	150	60	230	240	294	1.000	1	324.00
303458	63	50	G 2"	150	60	230	240	294	1.500	1	324.00
303459	63	50	G 2"	150	60	230	240	294	2.000	1	324.00
