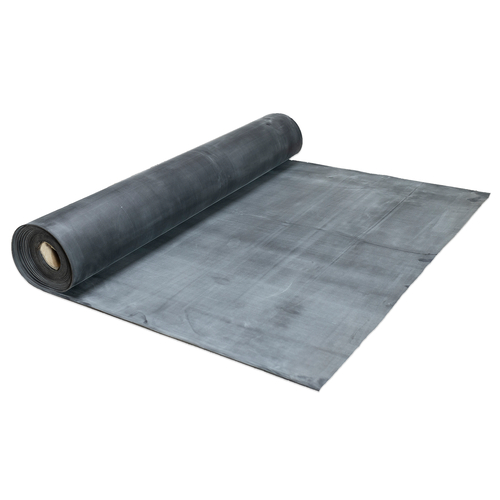

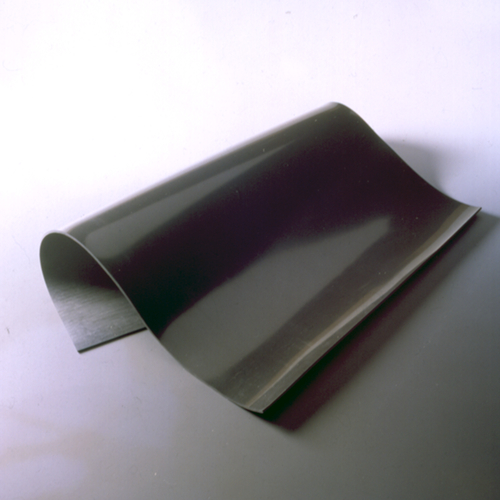

Butyl IIR Plate - Shore 60°

Product specification Very good resistance to weather, aging, and ozone Outstanding damping... more

Product specification

Very good resistance to weather, aging, and ozone

Outstanding damping capacity

High abrasion resistance

Good elongation at break

Good thermal resistance

Lowest permeability for air, gases, and steam

Gas diffusion approx. 10 times lower as with comparable natural rubber (CR) quality

Good dielectrical properties

Good resistance to hot water, hot steam

Average to acids, and alkalis

Poor resistance to fuel and mineral oils

Chemical features:

Butyl rubber is obtained by copolymerizing isobutylene with defined proportions of isoprene and vulcanized with sulfur.

Mixing of IIR and other elastomers is not possible.

Resistance to aging and weather decreases with increasing isoprene component.

Technical specification

Material: IIR (butyl rubber / isobutylene-isoprene rubber)

Colour: black

Shore hardness A: 60° ±5° (DIN ISO 7619-1)

Temperature range: -40 to +80 °C

Density: 1.1 - 1.25 g/cm3

Elongation at break: 600 % (DIN 53504)

Tearing strength: 13 MPa (DIN 53504)

Compression set: 35 % at +100 °C / 22 h

Volume resistivity: 5 x 106 Ohm x cm

Tolerance: DIN ISO 3302-1 E2

No additional information available.
Item Image Thickness
mm
Abmessung
mm
Einheit
Stück
Price
Euro*
Buy
19524
1 700 x 700 1 63.00
19525
1,5 700 x 700 1 82.00
19526
2 700 x 700 1 89.00
19527
3 700 x 700 1 109.00
19528
4 700 x 700 1 126.00
19529
5 700 x 700 1 147.00
19530
6 700 x 700 1 166.00
19531
1 1400 x 1400 1 114.00
19532
1,5 1400 x 1400 1 143.00
19533
2 1400 x 1400 1 166.00
19534
3 1400 x 1400 1 219.00
19535
4 1400 x 1400 1 272.00
19536
5 1400 x 1400 1 295.00
19537
6 1400 x 1400 1 328.00
