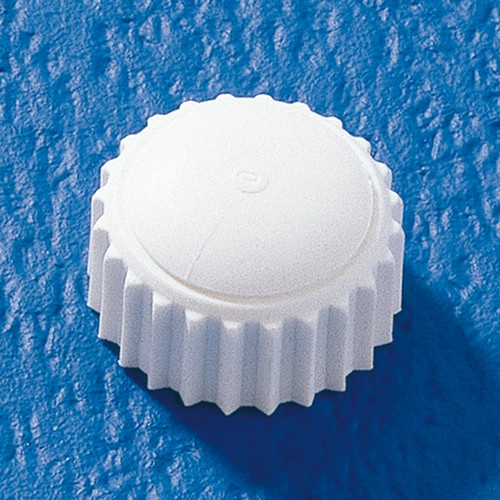

Cap Nut with Coarse Knurl made of PA - glass fibre reinforced

Technical specification Material: PA 6.6 (polyamide 66), glass fibre reinforced (25 %)... more

Technical specification

Material: PA 6.6 (polyamide 66), glass fibre reinforced (25 %)

Colour: white

General Information Chemical features: Good resistance to mineral lubricants, aromatic and... more

General Information

Chemical features:

Good resistance to mineral lubricants, aromatic and aliphatic hydrocarbons, gasoline, trichloroethylene, perchloroethylene, acetone and alkohols

Material specification:

Dimensionally stable and impact resistant

Suitable for heavy-duty and power transmission applications

Glass fibre reinforced polyamides have excellent impact resistance combined with a high stiffness and strength

Extremely robust to mechanical load

UV light and weather: medium resistance

Material: PA 6.6 (polyamide 6.6), glass fibre reinforced (25 %)

Density: 1.36 g/cm³

Temperature range: -40 to +120 °C, for a short time +240 °C

Tensile strength: 170 / 120 MPa (dry / humid) (ISO 527)

Bending strength: 210 MPa (ISO 178)

Elongation at break: 4 % (ISO 527)

Elastic modulus: 7,000 MPa (ISO 527)

Impact resistance (Charpy): 75 kJ/m² (ISO 179/1eU)

Notch impact strength (Izod): 12 kJ/m² (ISO 180/1A)

Melting point: +260 °C (ISO 11357)

Water absorption: 1.9 %; 6.0 % during storage in water (ISO 62)

Dielectric strength: 85 kV/mm (IEC 60243-1)

Volume resistivity: 10¹² Ohm x m (IEC 60093)

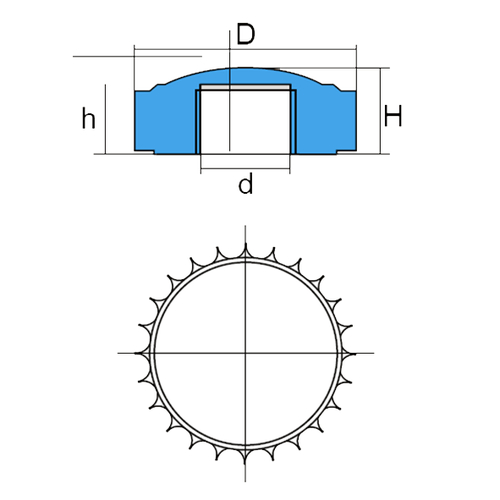

Item	Internal thread	D mm	h mm	H mm	Einheit Stück	Price Euro*
306054	M3 x 0,5	8	3	4	50	52.00
306055	M3 x 0,5	8	3	4	100	88.00
306056	M4 x 0,7	10	4,2	5,5	50	52.00
306057	M4 x 0,7	10	4,2	5,5	100	88.00
306058	M5 x 0,8	13	5,2	6,5	25	33.00
306059	M5 x 0,8	13	5,2	6,5	50	55.00
306060	M6 x 1	12,5	6	7,5	25	33.00
306061	M6 x 1	12,5	6	7,5	50	55.00
306062	M8 x 1,25	17,5	8,3	10	25	48.00
306063	M8 x 1,25	17,5	8,3	10	50	80.00
306064	M10 x 1,5	21,5	10	12,5	25	48.00
306065	M10 x 1,5	21,5	10	12,5	50	80.00
