Product specification

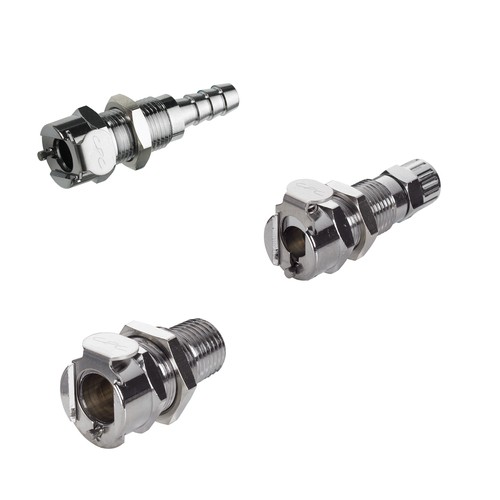

Female coupling part. With port or shut-off and hose nozzle; external thread or pipe screwed fitting for control panel mounting. Can be combined with all male coupling parts of nominal width 3.2 mm.

General Information Quick-Disconnect Coupling The two-part metal connectors are made of... more

Close menu

General Information Quick-Disconnect Coupling

The two-part metal connectors are made of high-quality steel or brass and available in two designs: shutting-off on one side and shutting-off on both sides. Coupling (female part) and nipple (male part) of the same design only can be combined with each other.

General Information Quick-Disconnect Couplings made of Chromium-Plated Brass

THOMAFLUID^®-quick-release coupling systems are excellently suitable for connecting and disconnecting of tubing, apparatuses etc. The quick-release couplings are easily to operate and connecting as well as disconnecting can be done with only one hand. The coupling socket is self-locking, when the plug nozzle are plugged in. For disconnecting, a short thumb pressure on the lock is sufficient and the nipple can be easily withdrawn. All nipples are fitted with an easily interchangeable, dependable sealing O-ring.

A complete operable THOMAFLUID^®-quick-release coupling consists of a coupling part and a nipple part; both parts can be fitted with valves. A completely one-side shutting-off quick-release coupling consists of a coupling part with shut-off and a nipple part with port or a coupling part with port and a nipple part with shut-off. To get a both sides locking coupling, both, a coupling part and a nipple part with shut-off each have to be obtained.

Material:

Valve body: chromium-plated brass

Gasket: NBR (butadiene-acrylonitrile-rubber)

Spring and shut-off: stainless steel

Valve: POM (polyacetal resin, polyoxymethylene)

Colour: silver

Nominal width: 3.2 and 6.4 mm

Plug diameter: approx. 8,0 mm at NW 3,2, approx. 11.2 mm at NW 6,4

Temperature range: -40 to +80 °C

Max. operating pressure: from vacuum up to 17 bar

Information: Contains the following substance which has been identified as a SVHC according to REACH article 33: Lead (Pb); CAS: 7439-92-1 EG-Number: 231-100-4

Item	Image	Connection	Ventil	Länge mm	Schott-Ø mm	Einheit Stück	Price Euro*
10331	Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel	Tülle 3,2 mm	ohne	42	13	1	56.00

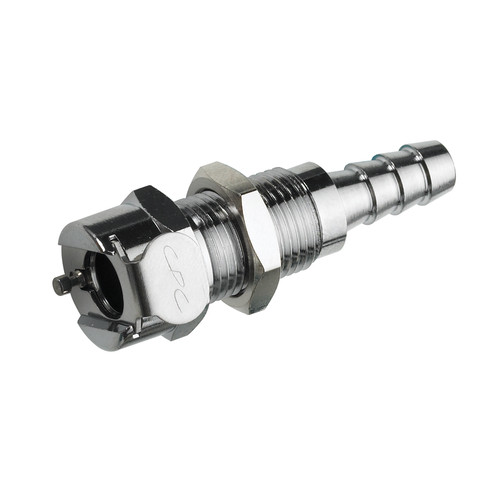

10332	Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel	Tülle 4,8 mm	ohne	47	13	1	56.00
10333	Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel	Tülle 6,4 mm	ohne	49	13	1	56.00
10313	Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel	Rohr 4 mm	ohne	43	13	1	68.00
10314	Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel	Rohr 6,4 mm	ohne	45	13	1	68.00

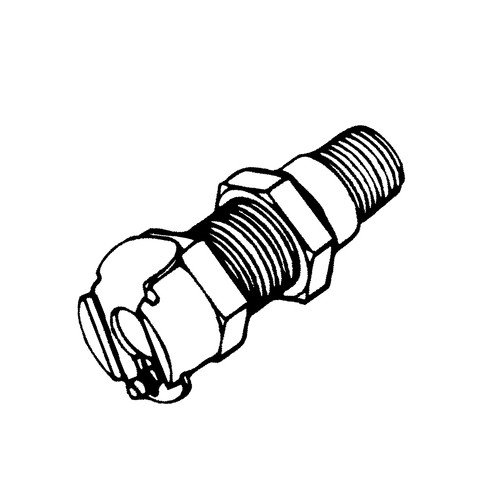

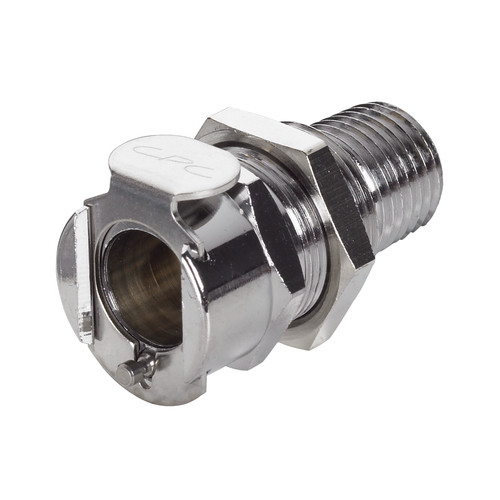

10327	Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel	A-Gewinde NPT 1/8"	ohne	32	13	1	56.00

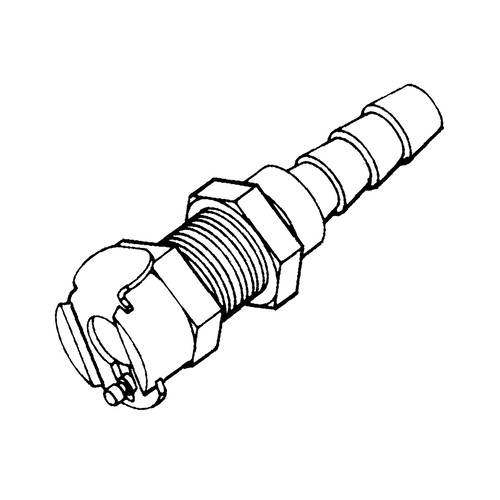

10337	Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel	Tülle 3,2 mm	mit	42	13	1	61.00
10338	Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel	Tülle 4,8 mm	mit	47	13	1	61.00

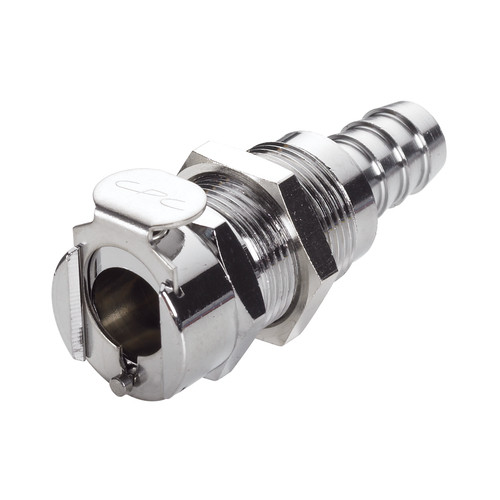

10339	Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel	Tülle 6,4 mm	mit	49	13	1	61.00

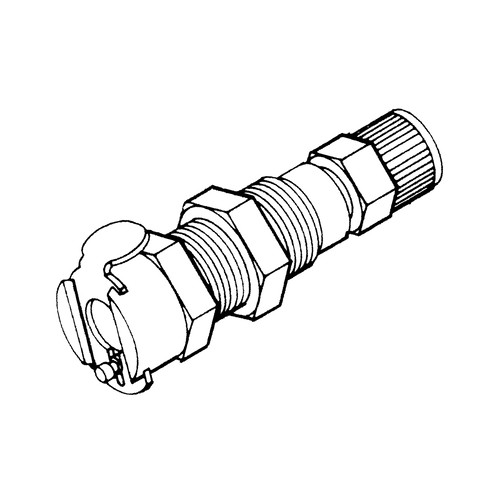

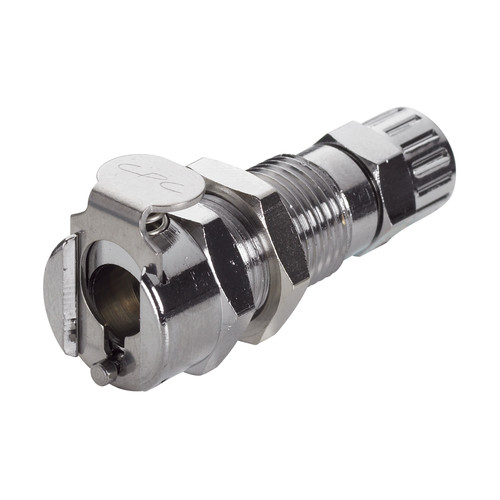

10317	Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel	Rohr 4 mm	mit	43	13	1	73.00
10318	Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel	Rohr 6,4 mm	mit	45	13	1	73.00
10329	Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm - Control Panel	A-Gewinde NPT 1/8"	mit	32	13	1	65.00
