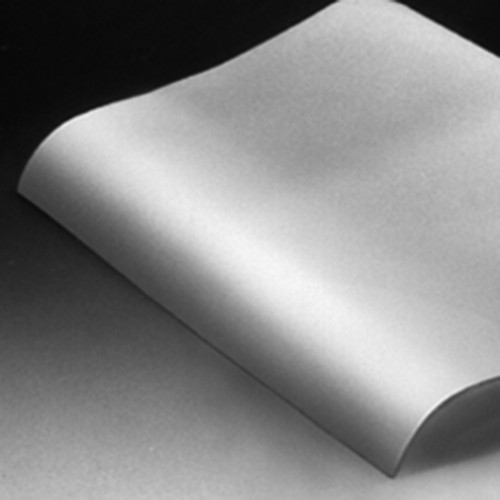

PES Film

PES Film
Description General Information
Description
Product specification Moderate UV resistance Good resistance to alcohols, halogenes, fats... more
Close menu

Product specification

Moderate UV resistance

Good resistance to alcohols, halogenes, fats and oils, acids, alkalis, not stable to conc. acids, ketones, aromatic hydrocarbons

Technical specification

Material: PES (polyether-sulfone)

Colour: amber

Density: 1.37 g/cm3

Temperature range: -100 to +190 °C, for a short time +220 °C

Dielectric strength: 232 kV/mm

Permeability:

for carbon-dioxide: 2.4 x 10-10 cm2 x s-1/cm Hg

for oxygen: 5.4 x 10-11 cm2 x s-1/cm Hg

Water absorption: 0.4 - 2.0 % in 24 h

General Information
more
Close menu
No additional information available.
Item Image Thickness
mm
 Gewicht
g
 Abmessung
mm
 Einheit
Stück
 Price
Euro* 		Buy
48939
0,25 3,4 100 x 100 1 120.00
48940
0,25 7,7 150 x 150 1 170.00
48941
0,25 30,8 300 x 300 1 280.00
