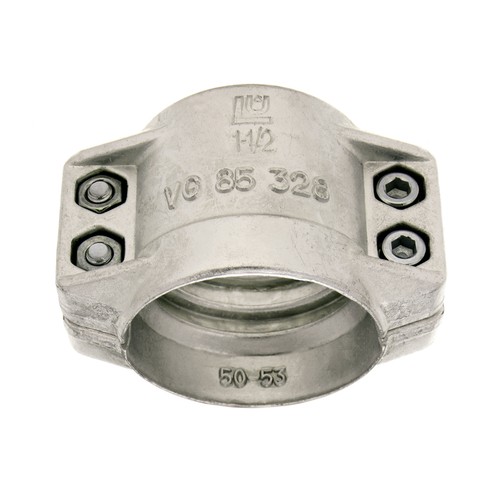

Forged Safety Clamp made of Aluminium for Thread Hose Stems

Product specification Robust safety clamps of high quality forged aluminium. Safe and easily... more

Product specification

Robust safety clamps of high quality forged aluminium.

Safe and easily removable hose assembly of forged safety clamps and hose fittings.

Hose stem wetted with lubricant is pressed into straight-cut hose.

Clamp halves are put in retaining collar around the hose and clamped with care in a vice.

Socket head cap screws are tightened regularly (rightly dimensioned hoses keep a small slit between clamp halves).

No additional information available.

Item	Tubing inside Ø mm	Schlauch Außen-Ø mm	NW mm	Schrauben	Länge mm	Breite mm	Einheit Stück	Price Euro*
330483	19	30 - 33	20	M6x20	50	63	2	43.00
330484	25	36 - 39	25	M6x20	50	69	2	45.00
330485	32	43 - 46	32	M6x20	50	76	2	48.00
330486	38	50 - 53	40	M6x20	50	83	2	50.00
330487	50	63 - 67	50	M8x25	56	102	2	60.00
330488	63	78 - 82	65	M8x25	74	120	2	82.00
330489	75	89 - 93	80	M8x25	76	132	2	90.00
