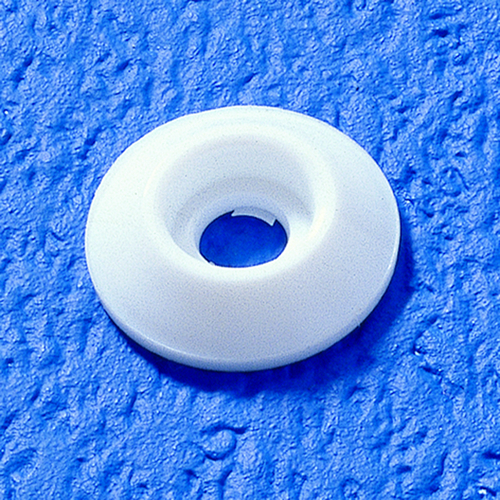

Metric Finishing Washer made of PA for Cheese Head Screws - conical cross-section and retaining lips

Metric Finishing Washer made of PA for Cheese Head Screws - conical cross-section and retaining lips

Product specification High-quality surface With retaining lips for safe pre-assembly of... more

Close menu

Product specification

High-quality surface

With retaining lips for safe pre-assembly of screws

Excellent protection from damage

Good insulation effect

Protect sensitive materials, such as lacquer, enamel, glass, textiles, ceramics

Outstandingly suited for furniture industry, car body and apparatus construction, yacht construction

Technical specification

Material: PA 6.6 (polyamide 66)

Colour: black or white

General Information Good coefficient of sliding friction High mechanical stability and... more

Close menu

General Information

Good coefficient of sliding friction

High mechanical stability and fatigue strength

Excellent resilience

Impact resistant

Resistant to abrasion

Resistant to cold

Chemical features:

Good resistance to weak alkalis, but only moderate resistance to strong alkalis; resistant to aromatic and aliphatic hydrocarbons, fuels, mineral oils and mineral lubricants; suitable for alkohols, esters, ketones, ethers and amines.

Material specification:

The polyamides are universal materials for mechanical functional parts

The temperature resistance of polyamide (from -30 to +100 °C, for a short time +120 °C) allows use in many industries

Connecting parts made of polyamide and similar plastics protect from rust and corrosion damage

Insulating properties and an amazingly high tensile strength

PA can also be used in the food processing industry and in medical fields

Resistant to corrosion and abrasion

Non-toxic and unmagnetic

Vibration-damping

PA 6.6 features the same chemical resistance as PA 6

PA 6.6 has a higher hardness, abrasion resistance, and a little higher operating temperature than PA 6

However, PA 6.6 is a little less impact resistant compared to PA 6

Material: PA 6.6 (polyamide 6.6)

Colour: natural

Density: 1.14 g/cm³ (DIN 53479)

Temperature range: -30 to +100 °C

Melting temperature: +255 °C (DIN 53736)

Yield stress: 83 N/mm² (ISO 527)

Elongation at break: 30 % (DIN 53455)

Bending strength: 115 N/mm² (DIN 53452)

Elastic modulus: 3,000 N/mm² (DIN 53457)

Impact resistance (Charpy): without break (DIN 53453)

Notch impact strength (Izod): 60 J/m (ASTM D 256)

Coefficient of sliding friction against steel (dry): 0.35 - 0.42

Dielectric loss factor (at 1 MHz): 0.025 (DIN 53483)

Volume resistivity: 10¹⁵ Ohm x cm (DIN 53482)

Surface resistance: approx. 10¹⁴ Ohm (DIN 53482)

Comparative track. index (CTI): >600 V (IEC 112)

Dielectric strength: approx. 40 kV/mm (DIN 53481)

Water absorption (saturation): approx. 8.5 % (DIN 53495)

Moisture absorption (s.c.a.-saturation): approx. 2.9 % (DIN 53714)

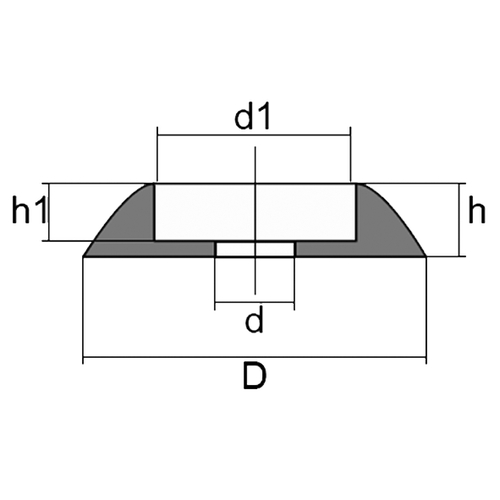

Item	For thread	d mm	d1 mm	D mm	h mm	h1 mm	Farbe	Einheit Stück	Price Euro*
309128	M3	3,2	5,5	14	2,8	1,7	weiß	50	24.00
309129	M3	3,2	5,5	14	2,8	1,7	weiß	100	41.00
309130	M3	3,2	5,5	14	2,8	1,7	schwarz	50	24.00
309131	M3	3,2	5,5	14	2,8	1,7	schwarz	100	41.00
309132	M4	4,3	7	16	3,5	2,3	weiß	50	24.00
309133	M4	4,3	7	16	3,5	2,3	weiß	100	41.00
309134	M4	4,3	7	16	3,5	2,3	schwarz	50	24.00
309135	M4	4,3	7	16	3,5	2,3	schwarz	100	41.00
309136	M5	5,3	8,5	18	4	2,7	weiß	50	26.00
309137	M5	5,3	8,5	18	4	2,7	weiß	100	45.00
309138	M5	5,3	8,5	18	4	2,7	schwarz	50	26.00
309139	M5	5,3	8,5	18	4	2,7	schwarz	100	45.00
309140	M6	6,4	10	22	4,9	3,5	weiß	50	28.00
309141	M6	6,4	10	22	4,9	3,5	weiß	100	45.00
309142	M6	6,4	10	22	4,9	3,5	schwarz	50	28.00
309143	M6	6,4	10	22	4,9	3,5	schwarz	100	45.00
