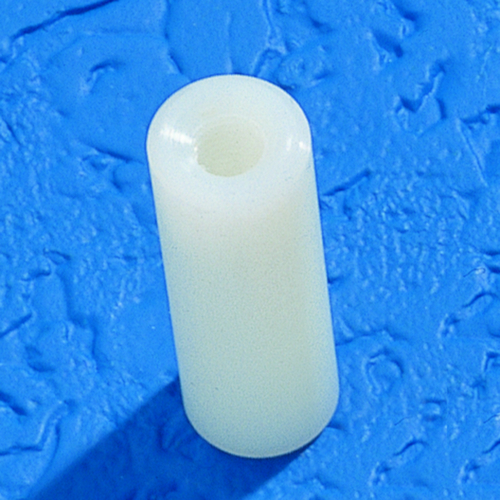

Spacer made of POM - internal thread | Reichelt Chemietechnik

Preview: Spacer made of POM - internal thread

Product specification Universal fastening elements for machine construction, electronics and... more

Close menu

Product specification

Universal fastening elements for machine construction, electronics and electrical engineering

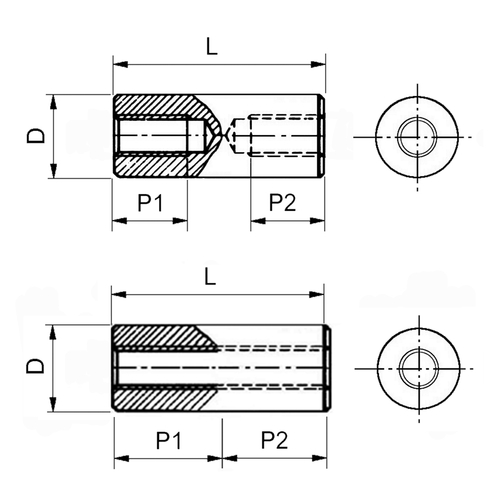

Up to 20 mm length through thread, from 25 mm onwards 2 blind threads

Chemical features:

Well suited for solvents, petrol, mineral oils and fats, alcohols and hydraulic fluids

Resistant to weak acids and alkalis

Sensitive to UV radiation, the material loses its surface gloss and embrittles when exposed to direct sunlight over longer time periods

Material properties:

POM features an interesting combination of strong hardness with dimensional stability and nevertheless high impact resistance

Shatter-proof

High toughness and hardness even at low temperatures

Very good resilience

Good resistance to stress cracking

Very good sliding and wear behavior, low friction values and good abrasion resistance

High fatigue strength with changing stress conditions (spring effect)

High dimensional stability under heat

Very high dimensional stability, thus preferred material for precision, machine and apparatus construction; suitable for narrow tolerances

Good electrical properties

Approved for food

The material features low moisture absorption, thus well suited as insulating part and for storage in humid environments

Resistant to mildew and suitable for storage in earth

Weldable; bondable only after pretreatment

Technical specification

Material: POM (polyoxymethylene)

Colour: natural

Density: 1.41 g/cm³ (DIN 53479)

Temperature range: -50 to +90 °C, for a short time +140 °C

Tensile modulus: 3,000 N/mm² (DIN 53457)

Tensile strength: 70 N/mm² (DIN 53455)

Elongation at break: 40 % (ISO 527)

Ball pressure hardness (30 s): 174 MPa (ISO 2039-1)

Notch impact strength: 7 - 8 kJ/m² (DIN 53453)

Water absorption: 0.7 % (10 d, +25 °C)

Coefficient of thermal conductivity: 0.37 W/m * K (DIN 52612)

Flammability rating: UL 94 HB

Oxygen index: 15 % (ASTM D 2863)

Dielectric strength: approx. 30 kV/mm at 1.5 mm thickness (DIN 53481)

Volume resistivity: approx. 10¹⁵ Ohm x cm (DIN 53482)

Surface resistance: approx. 10¹⁵ Ohm (DIN 53482)

Close menu

No additional information available.

Item	Internal thread	P1 mm	P2 mm	L mm	D mm	Einheit Stück	Price Euro*
310492	M3 x 0,5	2,5	2,5	5	6	25	54.00
310493	M3 x 0,5	2,5	2,5	5	6	50	90.00
310494	M3 x 0,5	3	3	6	6	25	54.00
310495	M3 x 0,5	3	3	6	6	50	90.00
310496	M3 x 0,5	4	4	8	6	25	54.00
310497	M3 x 0,5	4	4	8	6	50	90.00
310498	M3 x 0,5	5	5	10	6	20	49.00
310499	M3 x 0,5	5	5	10	6	40	81.00
310500	M3 x 0,5	6	6	12	6	20	49.00
310501	M3 x 0,5	6	6	12	6	40	81.00
310502	M3 x 0,5	7,5	7,5	15	6	20	59.00
310503	M3 x 0,5	7,5	7,5	15	6	40	99.00
310504	M3 x 0,5	9	9	18	6	20	59.00
310505	M3 x 0,5	9	9	18	6	40	99.00
310506	M3 x 0,5	10	10	20	6	10	33.00
310507	M3 x 0,5	10	10	20	6	20	55.00
310508	M3 x 0,5	10	10	25	6	10	41.00
310509	M3 x 0,5	10	10	25	6	20	70.00
310510	M3 x 0,5	10	10	30	6	10	41.00
310511	M3 x 0,5	10	10	30	6	20	70.00
310512	M3 x 0,5	10	10	35	6	10	47.00
310513	M3 x 0,5	10	10	35	6	20	78.00
310514	M3 x 0,5	10	10	40	6	10	47.00
310515	M3 x 0,5	10	10	40	6	20	78.00
310516	M3 x 0,5	10	10	45	6	10	50.00
310517	M3 x 0,5	10	10	45	6	20	84.00
310518	M3 x 0,5	10	10	50	6	10	50.00
310519	M3 x 0,5	10	10	50	6	20	84.00
310520	M3 x 0,5	10	10	55	6	10	55.00
310521	M3 x 0,5	10	10	55	6	20	91.00
310522	M3 x 0,5	10	10	60	6	10	55.00
310523	M3 x 0,5	10	10	60	6	20	91.00
310524	M4 x 0,7	2,5	2,5	5	8	25	55.00
310525	M4 x 0,7	2,5	2,5	5	8	50	93.00
310526	M4 x 0,7	3	3	6	8	25	64.00
310527	M4 x 0,7	3	3	6	8	50	106.00
310528	M4 x 0,7	4	4	8	8	25	64.00
310529	M4 x 0,7	4	4	8	8	50	106.00
310530	M4 x 0,7	5	5	10	8	25	64.00
310531	M4 x 0,7	5	5	10	8	50	106.00
310532	M4 x 0,7	6	6	12	8	10	32.00
310533	M4 x 0,7	6	6	12	8	20	52.00
310534	M4 x 0,7	7,5	7,5	15	8	10	32.00
310535	M4 x 0,7	7,5	7,5	15	8	20	52.00
310536	M4 x 0,7	9	9	18	8	10	34.00
310537	M4 x 0,7	9	9	18	8	20	55.00
310538	M4 x 0,7	10	10	20	8	10	34.00
310539	M4 x 0,7	10	10	20	8	20	55.00
310540	M4 x 0,7	10	10	25	8	10	43.00
310541	M4 x 0,7	10	10	25	8	20	71.00
310542	M4 x 0,7	10	10	30	8	10	43.00
310543	M4 x 0,7	10	10	30	8	20	71.00
310544	M4 x 0,7	10	10	35	8	10	50.00
310545	M4 x 0,7	10	10	35	8	20	81.00
310546	M4 x 0,7	10	10	40	8	10	50.00
310547	M4 x 0,7	10	10	40	8	20	81.00
310548	M4 x 0,7	10	10	45	8	10	55.00
310549	M4 x 0,7	10	10	45	8	20	89.00
310550	M4 x 0,7	10	10	50	8	10	55.00
310551	M4 x 0,7	10	10	50	8	20	89.00
310552	M4 x 0,7	10	10	55	8	10	60.00
310553	M4 x 0,7	10	10	55	8	20	99.00
310554	M4 x 0,7	10	10	60	8	10	60.00
310555	M4 x 0,7	10	10	60	8	20	99.00
310556	M5 x 0,8	2,5	2,5	5	10	10	36.00
310557	M5 x 0,8	2,5	2,5	5	10	20	58.00
310558	M5 x 0,8	3	3	6	10	10	36.00
310559	M5 x 0,8	3	3	6	10	20	58.00
310560	M5 x 0,8	4	4	8	10	10	36.00
310561	M5 x 0,8	4	4	8	10	20	58.00
310562	M5 x 0,8	5	5	10	10	10	39.00
310563	M5 x 0,8	5	5	10	10	20	65.00
310564	M5 x 0,8	6	6	12	10	10	39.00
310565	M5 x 0,8	6	6	12	10	20	65.00
310566	M5 x 0,8	7,5	7,5	15	10	10	43.00
310567	M5 x 0,8	7,5	7,5	15	10	20	74.00
310568	M5 x 0,8	9	9	18	10	10	43.00
310569	M5 x 0,8	9	9	18	10	20	74.00
310570	M5 x 0,8	10	10	20	10	10	48.00
310571	M5 x 0,8	10	10	20	10	20	78.00
310572	M5 x 0,8	10	10	25	10	10	48.00
310573	M5 x 0,8	10	10	25	10	20	78.00
310574	M5 x 0,8	10	10	30	10	10	51.00
310575	M5 x 0,8	10	10	30	10	20	82.00
310576	M5 x 0,8	10	10	35	10	10	51.00
310577	M5 x 0,8	10	10	35	10	20	82.00
310578	M5 x 0,8	10	10	40	10	10	56.00
310579	M5 x 0,8	10	10	40	10	20	90.00
310580	M5 x 0,8	10	10	45	10	10	56.00
310581	M5 x 0,8	10	10	45	10	20	90.00
310582	M5 x 0,8	10	10	50	10	10	61.00
310583	M5 x 0,8	10	10	50	10	20	99.00
310584	M5 x 0,8	10	10	55	10	10	61.00
310585	M5 x 0,8	10	10	55	10	20	99.00
310586	M5 x 0,8	10	10	60	10	10	65.00
310587	M5 x 0,8	10	10	60	10	20	103.00
