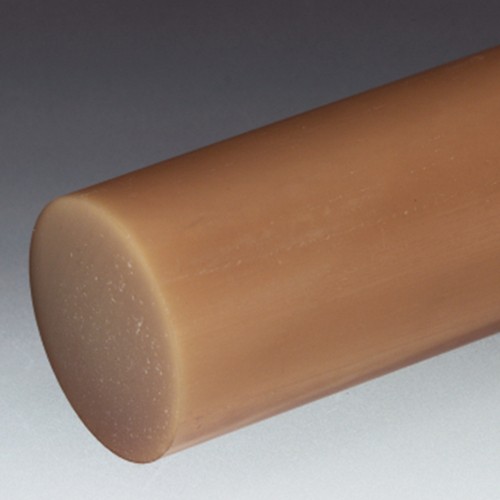

Vulkollan®-Solid Rod - Shore 70°

Vulkollan®-Solid Rod - Shore 70°
Product specification High-performance polyurethane elastomer Constant elastomer quality due... more

Product specification

High-performance polyurethane elastomer

Constant elastomer quality due to closely specified quality control

Excellent mechanical wear resistance

Very good resistance to abrasion

Remarkable elasticity over the complete hardness range

Good tear propagation resistance

High self-damping

Low compression set

Only relatively suitable for slipping functions

Free of plasticizers

Very good resistance to ozone, UV, and high-energy radiation

Good resistance to weather and aging

Good resistance to many oils, fats, petrols, and different solvents

Conditionally resistant to acids and alkalis

Technical specification

Material: PUR (Vulkollan® D 15); PUR (polyester polyol and naphthylene-1,5-diisocyanate (Desmodur 15)) as well as with additional, special chain elongators

Colour: natural

Shore hardness A: 70° +5/-10° (DIN 53505)

Temperature range: -25 to +80 °C

Density: 1.24 g/cm3 (DIN 53479)

Tearing strength: 40 MPa (DIN 53504)

Elongation at break: 620 % (DIN 53504)

Tension:

at 100 % elongation: 3 MPa

at 300 % elongation: 7 MPa

Tear propagation resistance: 25 N/mm (DIN 53507)

Abrasion: 50 mm2 (DIN 53516)

Compression set:

20 % at 24 h / +70 °C

10 % at 72 h / +23 °C

No additional information available.
Item Image Outside Ø
mm
Tolerance
mm
Length
mm
Unit
piece
Price
Euro*
Buy
301269
6 ±0,25 250 1 49.00
301270
6 ±0,25 500 1 90.00
301271
8 ±0,30 250 1 57.00
301272
8 ±0,30 500 1 103.00
301273
10 ±0,30 250 1 62.00
301274
10 ±0,30 500 1 110.00
301275
12 ±0,40 250 1 64.00
301276
12 ±0,40 500 1 116.00
301277
14 ±0,40 250 1 70.00
301278
14 ±0,40 500 1 123.00
301279
16 ±0,40 250 1 75.00
301280
16 ±0,40 500 1 131.00
301281
18 ±0,50 250 1 80.00
301282
18 ±0,50 500 1 139.00
301283
20 ±0,50 250 1 87.00
301284
20 ±0,50 500 1 151.00
301285
25 ±0,50 250 1 90.00
301286
25 ±0,50 500 1 156.00
301287
30 ±0,60 250 1 95.00
301288
30 ±0,60 500 1 169.00
301289
35 ±0,60 250 1 113.00
301290
35 ±0,60 500 1 195.00
301291
40 ±0,60 250 1 136.00
301292
40 ±0,60 500 1 228.00
301293
45 ±0,80 250 1 146.00
301294
45 ±0,80 500 1 243.00
301295
50 ±0,80 250 1 151.00
301296
50 ±0,80 500 1 233.00
301297
55 ±0,80 250 1 177.00
301298
55 ±0,80 500 1 271.00
301299
60 ±0,80 250 1 192.00
301300
60 ±0,80 500 1 300.00
301301
65 ±1,00 250 1 210.00
301302
65 ±1,00 500 1 315.00
301303
70 ±1,00 250 1 228.00
301304
70 ±1,00 500 1 333.00
301305
75 ±1,00 250 1 254.00
301306
75 ±1,00 500 1 371.00
301307
80 ±1,00 250 1 259.00
301308
80 ±1,00 500 1 374.00
301309
90 ±1,00 250 1 277.00
301310
90 ±1,00 500 1 381.00
301311
100 ±1,00 250 1 341.00
301312
100 ±1,00 500 1 473.00
