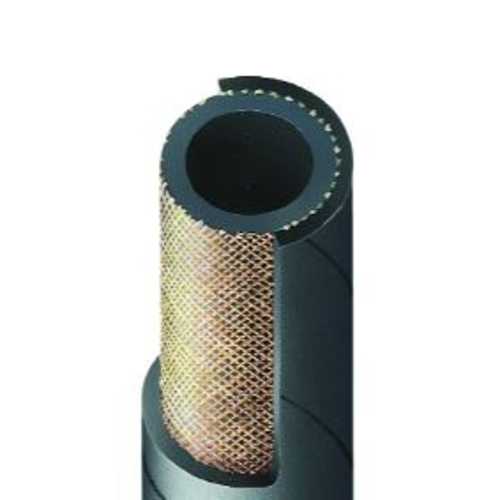

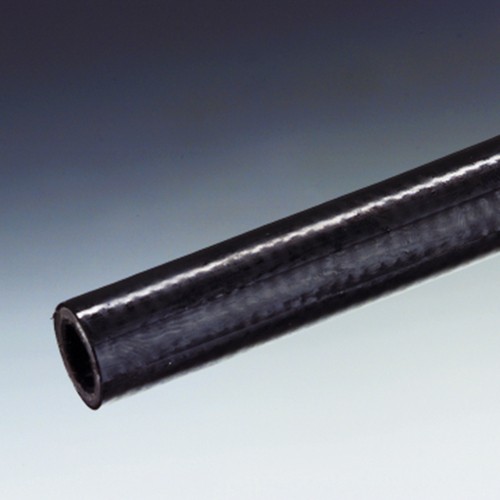

PA Double-Wall Jacket High-Pressure Chemical Tubing - 1 insert
Product specification
High-pressure hydraulic tubing for hardly inflammable hydraulic liquids on phosphate-ester base, liquids on mineral oil and glycol base, mineral lubricants, cooling liquids, water up to +70 °C, dyes, various solvents, fuels, carbonic acid, compressed air, nitrogen, and natural gas.
High mechanical stability
Excellent abrasion resistance
High fatigue strength
Good impact toughness
Good coefficient of sliding friction
Good temperature resistance
Very good abrasion resistance and mechanical stability of the jacket
UV-resistant
Technical specification
Material:
Liner: PA 11 (polyamide 11)
Colour: black
Temperature range: -40 to +100 °C; water max. +65 °C
Insert: synthetic fibres
Bursting pressure: 4-fold dynamic operating pressure
Regulations: SAE100 R7
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|
13087 |
|
3,2 | 8,6 | 172 | 13 | 5 | 125.00 | |
13088 |
|
3,2 | 8,6 | 172 | 13 | 10 | 225.00 | |
13089 |
|
4,8 | 10,9 | 207 | 19 | 5 | 127.00 | |
13090 |
|
4,8 | 10,9 | 207 | 19 | 10 | 231.00 | |
13091 |
|
6,4 | 13 | 207 | 32 | 5 | 143.00 | |
13092 |
|
6,4 | 13 | 207 | 32 | 10 | 264.00 | |
13093 |
|
7,9 | 15,1 | 172 | 44 | 5 | 162.00 | |
13094 |
|
7,9 | 15,1 | 172 | 44 | 10 | 297.00 | |
13095 |
|
9,5 | 16,8 | 155 | 51 | 3 | 121.00 | |
13096 |
|
9,5 | 16,8 | 155 | 51 | 5 | 167.00 | |
13097 |
|
12,7 | 20,8 | 138 | 76 | 3 | 165.00 | |
13098 |
|
12,7 | 20,8 | 138 | 76 | 5 | 253.00 | |
13099 |
|
19 | 27,2 | 86 | 127 | 1 | 88.00 | |
13100 |
|
19 | 27,2 | 86 | 127 | 3 | 228.00 |
