Product specification
For connection of tubing of varying diameters
Technical specification
Material: chromium-nickel-steel
Colour: black

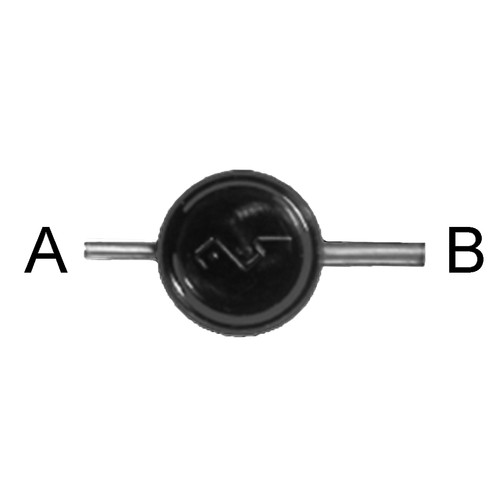

| Item | Image |
Tubing inside Ø (A) mm
|
NW (A) mm
|
Schlauch Innen-Ø (B) mm
|
NW (B) mm
|
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
Tubing inside Ø (A) mm
|
NW (A) mm
|
Schlauch Innen-Ø (B) mm
|
NW (B) mm
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|
| 946301 |
|
0,9 | 0,6 | 1,6 | 1,2 | 1 | 22.00 | |
| 946302 |
|
0,9 | 0,6 | 1,6 | 1,2 | 3 | 55.00 | |
| 946321 |
|
0,9 | 0,6 | 3,8 | 3 | 1 | 22.00 | |
| 946322 |
|
0,9 | 0,6 | 3,8 | 3 | 3 | 55.00 | |
| 946341 |
|
1,6 | 1,2 | 3,8 | 3 | 1 | 22.00 | |
| 946342 |
|
1,6 | 1,2 | 3,8 | 3 | 3 | 55.00 | |
| 946351 |
|
1,6 | 1,2 | 5,1 | 4,4 | 1 | 22.00 | |
| 946352 |
|
1,6 | 1,2 | 5,1 | 4,4 | 3 | 55.00 | |
| 946361 |
|
2,4 | 1,8 | 3,8 | 3 | 1 | 22.00 | |
| 946362 |
|
2,4 | 1,8 | 3,8 | 3 | 3 | 55.00 | |
| 946371 |
|
2,4 | 1,8 | 5,1 | 4,4 | 1 | 22.00 | |
| 946372 |
|
2,4 | 1,8 | 5,1 | 4,4 | 3 | 55.00 | |
| 946381 |
|
3,8 | 3 | 5,1 | 4,4 | 1 | 22.00 | |
| 946382 |
|
3,8 | 3 | 5,1 | 4,4 | 3 | 55.00 |
