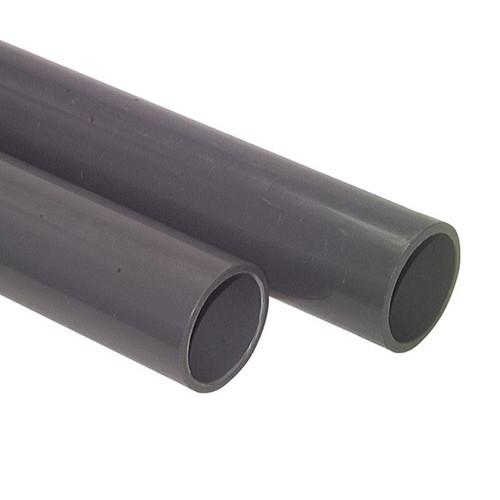

PVC-U Pressure Pipe

Preview: PVC-U Pressure Pipe Preview: PVC-U Pressure Pipe
PVC-U Pressure Pipe
PVC-U Pressure Pipe


Description General Information
Description
Technical specification Material: PVC-U (rigid polyvinyl chloride), free of... more
Close menu

Technical specification

Material: PVC-U (rigid polyvinyl chloride), free of plasticizers, without filler

Colour: grey, according to RAL 7011

Temperature range: -15 to +60 °C

Density: 1.42 g/cm3 (ISO 1183)

Yield stress: 50 MPa (EN ISO 527)

Tensile modulus: 3,000 MPa (EN ISO 527)

Notch impact strength: 6 kJ/m2 at +23 °C (DIN EN ISO 179)

Vicat softening temperature: >78 °C (ISO 306)

Thermal coefficient of expansion: 0.08 mm/mK (DIN 53752)

Thermal conductivity: 0.15 W/m * K (DIN 52612)

Water absorption: 0.1 % at +23 °C (DIN 53495)

Volume resistivity: 1013 Ohm * m (IEC 60093)

Flammability rating: UL 94 V-0 (IEC 60695)

Max. operating pressure: 10 bar and 16 bar respectively

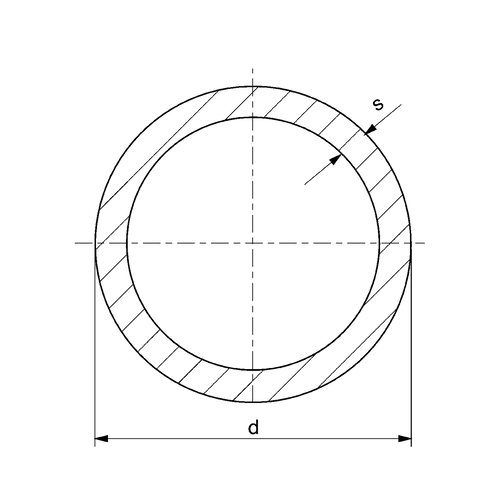

Design: plain-end pipes

Media: For transport of fluid media (not for pressurized gas)

General Information
more
Close menu
No additional information available.
