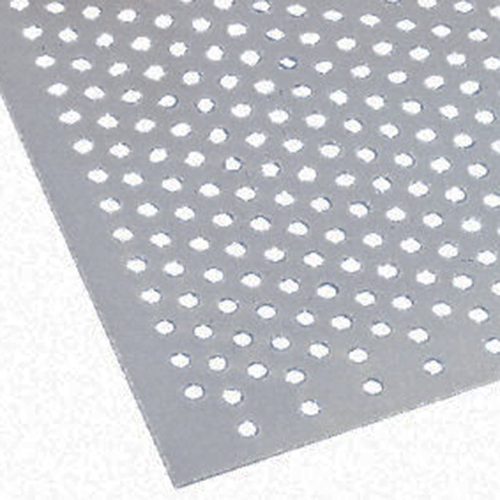

Perforated Plate made of PP - light-beige

Product specification Plate made of perforated PP (polypropylene) with different kinds of... more

Product specification

Plate made of perforated PP (polypropylene) with different kinds of perforations

High bending strength

Extremely good impact toughness and notch impact strength

Highest fatigue resistance also at higher temperatures

Best temperature resistance

Good chemical properties, particularly to oils, petrols and acids

Ideal material for use as structural plate in a corrosive environment, for electrical and thermal insulations, also usable for mechanical separation (separation lattice) in chemical pans, battery boxes, covers etc.

Technical specification

Material: PP (polypropylene)

Colour: light-beige

Temperature range: -5 to +100 °C, for a short time +120 °C

Density: 0.91 g/cm3 (DIN 53479)

Tearing strength: 36 MPa (DIN 53455)

Notch impact strength: 8 kJ/m2 (DIN 53455)

Rockwell hardness: 75 Mpa (DIN 53456)

Tensile modulus: 1,350 Mpa (DIN 53457)

Volume resistivity: >1016 Ohm x cm (DIN 53482)

Surface resistivity: 1013 Ohm/cm2 (DIN 53482)

Dielectric strength: 70 kV/mm (DIN 53481)

Thickness: 2 mm

No additional information available.

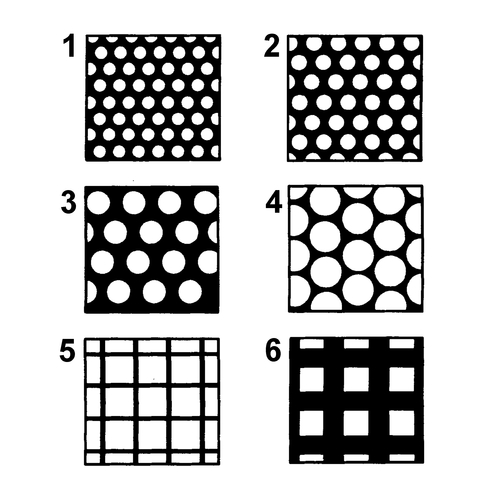

Item Image Design Offene Fläche
%
Stärke
mm
Abmessung
mm
Einheit
Stück
Price
Euro*
Buy
300537
1: 60°, Ø 3,0 mm 33 2 500 x 500 1 107.00
300538
2: 60°, Ø 4,8 mm 50 2 500 x 500 1 107.00
300539
3: 60°, Ø 6,4 mm 43 2 500 x 500 1 107.00
300540
4: 60°, Ø 8,0 mm 68 2 500 x 500 1 107.00
300541
5: quadratisch, 4,7 x 4,7 mm 35 2 500 x 500 1 107.00
