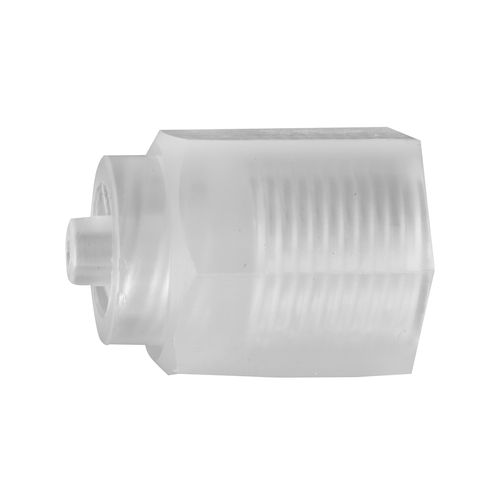

Luer-Lock Adapter (Male) with Female Thread

Product specification Male luer-lock adapter with female thread The connector is suitable... more

Product specification

Male luer-lock adapter with female thread

The connector is suitable for max. 10 bar (at +20 ° C)

General Information The connections used in Series EMP-L are manufactured with a Luer-Lock... more

General Information

The connections used in Series EMP-L are manufactured with a Luer-Lock thread according to DIN EN 20594-1 or ISO 594 (male or female). Common tubes, pipes, G- or UNF-threads can thus be combined.

Available in PP, PVDF or PFA (high-quality materials) for chemically demanding applications

On request: all materials are available also electrically conductive

Threads are seamless according to DIN 13090 and offer various connection options

PP (Polypropylene)

Extremely good impact toughness and notch impact strength

Higher hardness and stiffness as well as better resilience than PE

Thermoforming possible

Very good dielectrical properties

Good resistance to alcohols, ketones, conc. acids and alkalis

Not stable to aromatic hydrocarbons, fats and oils, halogenes

Autoclavable

Resistant to hydrolysis

Physiologically safe

Regulatory compliance to FDA 21 CFR 177.1520, RoHS, BPA-free, DEHP-free, BSE/ADI-free

Colour: grey

Density: 0.90 g/cm3

Temperature range: +5 to +90 °C

Shore hardness D: 72°

Water absorption: <0.05 %

Tensile strength: 25 - 40 N/mm2

Elongation at break: 800 %

Surface resistance: >1013 Ohm

Melt flow index MFR: 0.3 g/10 min.

PVDF (Polyvinylidene fluoride)

High-quality technical plastic for chemical apparatus and machine building, especially in the petrochemical, metallurgical, pharmaceutical, food processing, paper and textile industry as well as in the nuclear technology.

High impact toughness even at low temperatures

Good breakdown strength

Low dielectric loss factor

Highest mechanical stability and stiffness

Meeting highest purity requirements

Comply with the guidelines from FDA and USP class VI, additionally PVDF has the KTW approval. Up to +150 °C it is non-toxic and since it has a similar property to glass it is a no-culture medium for microorganisms.

Can be treated by autoclave (absolute sterile) and sterilized with gamma-rays without losing its mechanical qualities

Outstanding resistance to UV, weather and aging

Flame-resistant

High thermal stability

Resistant to alcohols, fats and oils, halogenes, alkalis, acids

Not stable to aromatic hydrocarbons, ketones, amines, pyridine, dimethylformamide, hot alkalis, fuming sulfuric acid

Colour: nature, slightly translucent

Density: 1.75 g/cm3

Temperature range: -40 to +140 °C

Shore hardness D: 79°

Water absorption: <0.04 %

Tensile strength: 38 - 50 N/mm2

Surface resistance: >1013 Ohm

Melt flow index MFR: 6 g/10 min.

PFA (Perfluoroalkoxy)

High-quality technical plastic for chemical apparatus and machine construction as well as electrical engineering

Chemical, thermal and dielectrical properties practically such as PTFE, but suitable for thermoplastic processing (welding, die casting, deep drawing). Lower medium diffusion, better transparency, larger hardness and better dimensional stability (lower tendency to cold flow) compared to PTFE.

Highest temperature resistance of all meltable fluorinated plastics

Very high dimensional stability in heat

Very high resistance to media

Very good pressure resistance

Low friction coefficient

Can be treated by autoclave (absolute sterile)

Comply with the guidelines from FDA and USP class VI.

Excellent resistance to weather

Flame-resistant

Colour: milky, translucent

Density: 2.10 g/cm3

Temperature range: -200 to +200 °C (highest dimensional stability in heat)

Shore hardness D: 60° to 65°

Coefficient of sliding friction: 0.2 - 0.3 (dynamic against steel, dry)

Tensile strength: 27 to 32 N/mm2 at +23 °C

Water absorption: <0.03 %

Dielectric constant: 2,1

Surface resistance: >1017 Ohm

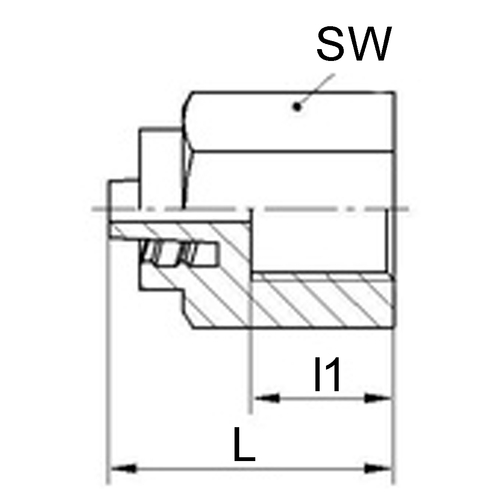

Item Image Internal thread l1
mm
L
mm
SW
mm
Werkstoff Einheit
Stück
Price
Euro*
Buy
158430
G 1/8" 10 20 14 PP 1 13.00
158431
G 1/8" 10 20 14 PVDF 1 18.00
158432
G 1/8" 10 20 14 PFA 1 41.00
158433
UNF 1/4"-28 10 20 14 PP 1 17.00
158434
UNF 1/4"-28 10 20 14 PVDF 1 24.00
158435
UNF 1/4"-28 10 20 14 PFA 1 52.00
