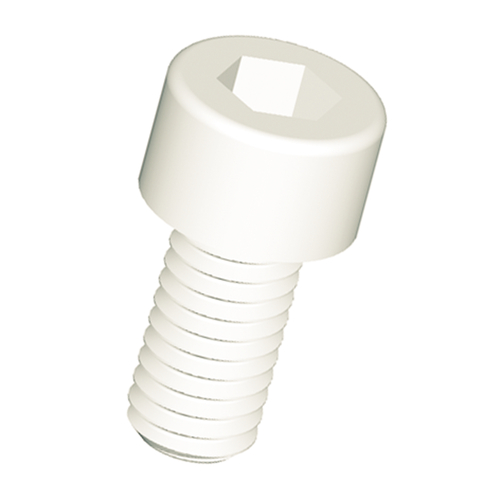

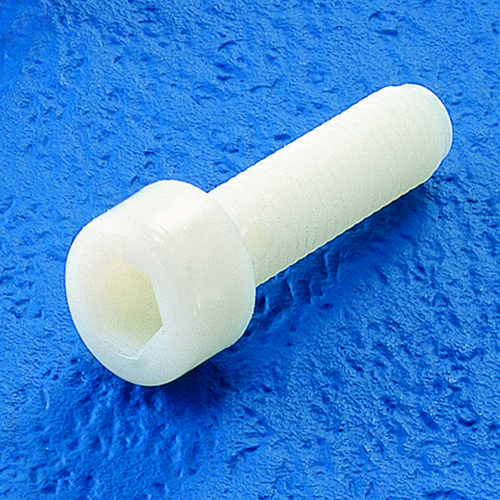

Hexagon Socket Head Cap Screw (DIN 912) made of PP

Hexagon Socket Head Cap Screw (DIN 912) made of PP

Technical specification Material: PP (polypropylene) Colour: natural... more

Close menu

Technical specification

Material: PP (polypropylene)

Colour: natural

Regulations: DIN 912, ISO 4762, NFE 27161, NFE 25125

General Information Resistant to corrosion, abrasion and to most chemicals Extremely good... more

Close menu

General Information

Resistant to corrosion, abrasion and to most chemicals

Extremely good impact toughness and notch impact strength

High surface hardness

Resistant to hydrolysis

Insulating against moisture and electricity

This material should not be used at freezing temperatures, because of embrittlement at temperatures below 0 °C

Chemical features:

Good resistance to alcohols, ketones, alkalis and acids (except strong and oxidizing acids); resistant to fats and oils, including mineral oils and fuels.

Material specification:

PP is a universally usable standard plastic with excellent properties

PP is sterilizable and has good electrical properties

Weldable; bondable only after pretreatment

PP is similar to PE (polyethylene), but more fat- and oil-resistant, and also features a higher hardness and stiffness than HDPE as well as a better resilience; its impact strength is, however, lower

UV radiation and weather: limited resistance

Material: PP (polypropylene)

Colour: natural

Density: 0.90 g/cm³ (DIN 53479)

Temperature range: 0 to +100 °C

Elastic modulus: 1,350 N/mm² (ISO 527)

Yield stress: 30 N/mm² (ISO 527-1)

Tearing strength: 25 - 40 N/mm² (DIN 53455)

Elongation at break: 70 % (DIN 53455)

Impact resistance: without break (DIN 53453)

Notch impact strength: 7 kJ/m² (DIN 53453)

Ball pressure hardness: 70 N/mm² (DIN 53456)

Coefficient of sliding friction against steel (dry): approx. 0.30 - 0.40

Thermal conductivity: 0.22 W/m * K (DIN 52612)

Shore hardness D: 70° (DIN 53505)

Volume resistivity: 10¹⁷ Ohm x cm (DIN 53482)

Surface resistance: 10¹³ Ohm (DIN 53482)

Dielectric constant: 2.27 at 50 Hz (DIN 53483)

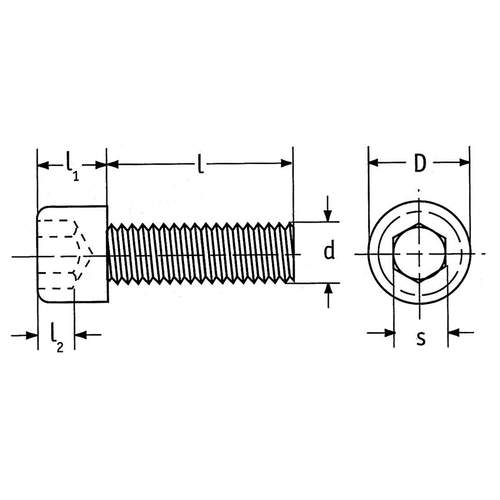

Item	External thread	Gewindelänge mm	D mm	l1 mm	l2 mm	SW mm	Einheit Stück	Price Euro*
337103	M6 x 1	6	10	6	3	5	50	69.00
337104	M6 x 1	6	10	6	3	5	100	116.00
337105	M6 x 1	8	10	6	3	5	50	69.00
337106	M6 x 1	8	10	6	3	5	100	116.00
337107	M6 x 1	10	10	6	3	5	50	73.00
337108	M6 x 1	10	10	6	3	5	100	120.00
337109	M6 x 1	12	10	6	3	5	50	73.00
337110	M6 x 1	12	10	6	3	5	100	120.00
337111	M6 x 1	16	10	6	3	5	50	73.00
337112	M6 x 1	16	10	6	3	5	100	120.00
337113	M6 x 1	20	10	6	3	5	50	78.00
337114	M6 x 1	20	10	6	3	5	100	131.00
337117	M6 x 1	25	10	6	3	5	50	78.00
337118	M6 x 1	25	10	6	3	5	100	131.00
337119	M6 x 1	30	10	6	3	5	50	78.00
337120	M6 x 1	30	10	6	3	5	100	131.00
337121	M6 x 1	40	10	6	3	5	50	82.00
337122	M6 x 1	40	10	6	3	5	100	140.00
337123	M6 x 1	50	10	6	3	5	50	82.00
337124	M6 x 1	50	10	6	3	5	100	140.00
337125	M6 x 1	60	10	6	3	5	50	82.00
337126	M6 x 1	60	10	6	3	5	100	140.00
337127	M8 x 1,25	10	13	8	4	6	50	82.00
337128	M8 x 1,25	10	13	8	4	6	100	140.00
337129	M8 x 1,25	16	13	8	4	6	50	88.00
337130	M8 x 1,25	16	13	8	4	6	100	148.00
337131	M8 x 1,25	20	13	8	4	6	50	88.00
337132	M8 x 1,25	20	13	8	4	6	100	148.00
337133	M8 x 1,25	25	13	8	4	6	50	88.00
337134	M8 x 1,25	25	13	8	4	6	100	148.00
337135	M8 x 1,25	30	13	8	4	6	50	90.00
337136	M8 x 1,25	30	13	8	4	6	100	155.00
337139	M8 x 1,25	40	13	8	4	6	50	90.00
337140	M8 x 1,25	40	13	8	4	6	100	155.00
337141	M8 x 1,25	50	13	8	4	6	50	101.00
337142	M8 x 1,25	50	13	8	4	6	100	172.00
337143	M8 x 1,25	60	13	8	4	6	50	101.00
337144	M8 x 1,25	60	13	8	4	6	100	172.00
337145	M8 x 1,25	70	13	8	4	6	50	101.00
337146	M8 x 1,25	70	13	8	4	6	100	172.00
337147	M8 x 1,25	80	13	8	4	6	50	101.00
337148	M8 x 1,25	80	13	8	4	6	100	172.00
337149	M10 x 1,5	16	16	10	5	8	50	101.00
337150	M10 x 1,5	16	16	10	5	8	100	172.00
337151	M10 x 1,5	20	16	10	5	8	50	101.00
337152	M10 x 1,5	20	16	10	5	8	100	172.00
337153	M10 x 1,5	30	16	10	5	8	50	101.00
337154	M10 x 1,5	30	16	10	5	8	100	172.00
337155	M10 x 1,5	40	16	10	5	8	25	67.00
337156	M10 x 1,5	40	16	10	5	8	50	116.00
337157	M10 x 1,5	50	16	10	5	8	25	67.00
337158	M10 x 1,5	50	16	10	5	8	50	116.00
337159	M10 x 1,5	60	16	10	5	8	25	67.00
337160	M10 x 1,5	60	16	10	5	8	50	116.00
337161	M10 x 1,5	70	16	10	5	8	25	67.00
337162	M10 x 1,5	70	16	10	5	8	50	116.00
337163	M10 x 1,5	80	16	10	5	8	25	67.00
337164	M10 x 1,5	80	16	10	5	8	50	116.00
337165	M12 x 1,75	20	18	12	6	10	25	67.00
337166	M12 x 1,75	20	18	12	6	10	50	116.00
337167	M12 x 1,75	30	18	12	6	10	25	67.00
337168	M12 x 1,75	30	18	12	6	10	50	116.00
337169	M12 x 1,75	40	18	12	6	10	25	78.00
337170	M12 x 1,75	40	18	12	6	10	50	135.00
337171	M12 x 1,75	50	18	12	6	10	25	78.00
337172	M12 x 1,75	50	18	12	6	10	50	135.00
337173	M12 x 1,75	60	18	12	6	10	25	78.00
337174	M12 x 1,75	60	18	12	6	10	50	135.00
337175	M12 x 1,75	70	18	12	6	10	25	78.00
337176	M12 x 1,75	70	18	12	6	10	50	135.00
337177	M12 x 1,75	80	18	12	6	10	25	78.00
337178	M12 x 1,75	80	18	12	6	10	50	135.00
