Pneumatic Diaphragm Pump made of PTFE

Pneumatic Diaphragm Pump made of PTFE
Description General Information
Description
Application area Universal delivery pump made of PTFE for corrosive media in laboratory and... more
Close menu

Application area

Universal delivery pump made of PTFE for corrosive media in laboratory and plant.

Product specification

A-Series pumps are oscillating displacement pumps with pneumatic drive, can be infinitely controlled via the air volume. The series comprises two pump sizes with maximum delivery volumes of 10 and 25 l/min. The pumps are dry-running and overloading safe, self-priming and maintenance-free.

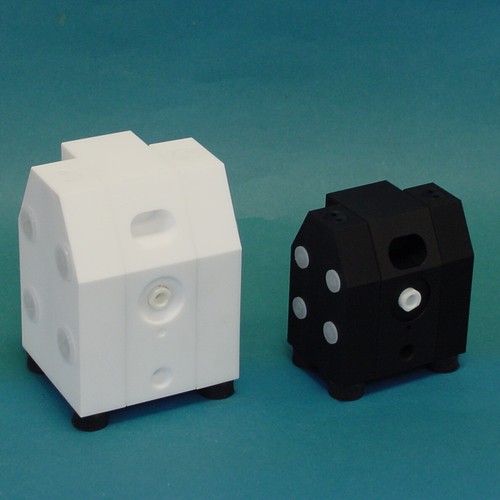

Housing material: solid PTFE or PTFE conductive. PTFE is resistant to corrosion by virtually all media. The conductive version permits use of the pump in explosion-hazard areas and for inflammable liquids.

The pumps can be fitted with ball valves or cylinder valves. Ball valves (PTFE) are unsusceptible to solid-containing media, cylinder valves (PTFE) allow very good dry priming values. PTFE is used as medium-contacting diaphragm material.

Technical specification

Material:

PTFE (tetrafluorethylene), white

PTFE (tetrafluorethylene, conductive), black

Max. driving air pressure: 7 bar

Max. operating temperature: +100 °C

Pipe connection: internal thread R 1/8"

General Information
more
Close menu
No additional information available.
Item Image Max. delivery rate
l/min.
 Ventilsystem max. Saughöhe (befüllt)
mWS
 Werkstoff Pumpenkopf Einheit
Stück
 Abmessung LxBxH
mm
 Innengewinde max. Feststoff-Korngröße
mm
 Gewicht
kg
 Price
Euro* 		Buy
333629
10 Kugel 9 PTFE 1 90 x 113 x 129 NPT 1/4" 2 2 4,012.00
333630
10 Zylinder 9 PTFE 1 90 x 113 x 129 NPT 1/4" 2 4,012.00
333631
10 Kugel 9 PTFE (leitfähig) 1 90 x 113 x 129 NPT 1/4" 2 2 4,308.00
333632
10 Zylinder 9 PTFE (leitfähig) 1 90 x 113 x 129 NPT 1/4" 2 4,308.00
333633
25 Kugel 9 PTFE 1 110 x 127 x 169 NPT 3/8" 3 4 5,980.00
333634
25 Zylinder 9 PTFE 1 110 x 127 x 169 NPT 3/8" 4 5,980.00
333635
25 Kugel 9 PTFE (leitfähig) 1 110 x 127 x 169 NPT 3/8" 3 4 6,460.00
333636
25 Zylinder 9 PTFE (leitfähig) 1 110 x 127 x 169 NPT 3/8" 4 6,460.00
