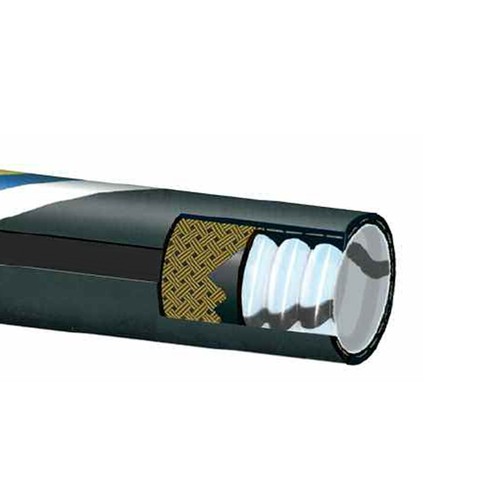

PTFE Corrugated Chemical Pipe with smooth jacket

Application area Pharmaceutical technology, pharmaceutical production, food industry,... more

Application area

Pharmaceutical technology, pharmaceutical production, food industry, petrochemical industry, process chemistry, chemical industry, basic materials industry

Product specification

Universal chemical resistance

Exceptional flexibility due to helically wound PTFE liner

Extremely small bending radii

Steaming out (open system) admissable

Liner physiologically absolutely safe, non leaching, non discolouring

Free from plasticizers, latex and silicone

Jacket is electrically dissipative, abrasion-resistant and hardly inflammable.

For use in explosion-hazardous areas

With patented Ω-guide spirals

Seamlessly extruded

Very good antiadhesive properties

UV- and ozone-resistant

Technical specification

Material:

Liner: PTFE (polytetrafluoroethylene, DuPont62 virginal)

Jacket: EPDM (ethylene-propylene-diene rubber), electrically conductive

Insert: intermed. layer made of EPDM (ethylene-propylene-diene rubber), electrically conductive

Reinforcements: high temp. resistant aramide braid

Colour of liner: transparent

Temperature range: -20 to +150 °C

Max. operating pressure: 16 bar at +20 °C

Bursting pressure: 64 bar at +20 °C

Vacuum resistance: 0.9 bar at +20 °C

Volume resistivity: <10⁹ Ohm (inside and outside)

Steaming out: max. 30 min. up to +180 °C

Regulations: liner conforming to FDA

Close menu

No additional information available.

Item	Inside Ø mm	Außen-Ø mm	min. Biegeradius mm	für Artikel¹	Einheit m	Price Euro*
351132	20	35	40	351144	1	244.00
351133	20	35	40	351144	3	664.00
351134	20	35	40	351144	5	998.00
351135	25	41	60	351145	1	287.00
351136	25	41	60	351145	3	779.00
351137	25	41	60	351145	5	1,169.00
351138	40	58	80	351146	1	523.00
351139	40	58	80	351146	3	1,426.00
351140	40	58	80	351146	5	2,138.00
351141	50	72	100	351147	1	572.00
351142	50	72	100	351147	3	1,561.00
351143	50	72	100	351147	5	2,342.00
