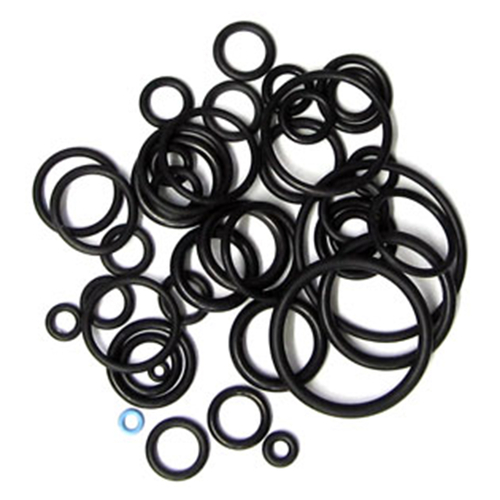

High-Performance NBR O-Rings - imperial

No additional information available.
General Information O-Rings These O-Ring materials are specially developed for use in the... more

General Information O-Rings

These O-Ring materials are specially developed for use in the food processing, pharmaceutical, petrochemical and chemical industries, as well as in technological processes

Design: O-Rings are vulcanised in moulds

Method of operation: O-Rings are double-acting sealing elements. The initial squeeze acting in a radial or axial direction due to the installation gives the O-Ring its initial sealing capability. These forces are superimposed by the system pressure to create the total sealing force which increases with increasing system pressure. Under pressure, the O-Ring behaves in a similar way to a fluid with high surface tension. The pressure is transmitted uniformly to all directions (see Figure Sealing forces).

Compared with other sealing elements, the O-Ring has a wide range of advantages: Inexpensive, allows low cost solutions; simple, one-piece groove design reduces hardware and design costs; compact design allows smaller hardware; easy, foolproof installation reduces risk; applicable to a wide range of sealing problems, static, dynamic, single or double acting; wide compound choice for compatibility with most fluids

Most common applications: Sealing of static machine parts against liquid or gaseous media; as a radial static seal, e.g. for bushings, covers, pipes, cylinders; as an axial static seal, e.g. for flanges, plates, caps; as a dynamic sealing element at axial, rotating and oscillating movements

Branch-specific sealing solutions: Approvals and conformities in the food processing industry: ADI free, FDA, 3-A; Sanitary Standards; pharmaceutical industry: ADI free, USP Class VI

Petrochemical industry: ex. decompression

Chemistry: permeation density and chemical stability

Dimensions: Inched ARP 001 - 932; Metric ID 3 - 193 mm; Cord thickness 1 - 8 mm

Manufacturing: According to the latest standards, with an optimal tool park, for quick and flexible handling, the traceability of materials is guaranteed, all parts go through a quality check before packaging

Usual application areas for elastomers regarding temperature and polarity of the used media

Approvals and certificates in the food, pharmaceutical and drinking water industries (see list of approvals)

Usual cleaning media for continuous plants in the food and pharmaceutical industries (see list of cleaning products)

General Information NBR

Very good choice for applications involving mechanical load, as well as in mineral oils, fats and waxes, motor oils and fuels

Well suited for use in:

CIP / SIP media for continuous plants in the food, beverage and pharmaceutical industries

CIP (Cleaning in Place) = diluted acids or bases combined with cleaning additives

SIP (Sterilization in Place) = disinfectants, steam, oxidizing media (e.g. hypochlorite) and / or polar organic solvents (e.g. acetic acid)

Should not be used in concentrated acids (e.g. nitric or formic acid), concentrated oxidizing media (e.g. peracetic acid), aromatic and chlorinated hydrocarbons

Good abrasion resistance

Good thermal resistance

The level of ACN is tailored to the specific application, so that the optimal balance of chemical resistance and low-temperature flexibility is achieved

Good resistance to mineral oil and fuels, outstanding resistance to vegetable and animal oils, silicones, diluted acids and bases at room temperature

In aromatic and chlorinated hydrocarbons NBR is prone to swelling

Material: butadiene-acrylonitrile-rubber

Color: black

Crosslinking: peroxidic

Shore hardness A: 70° ±5 (test plate) (DIN 53505)

Temperature range: -20 to +100 °C

Density: approx. 1.17 g/cm3 (DIN EN ISO 1183)

Rebound elasticity: 28 % (DIN 53512)

Modulus at 100 % elongation: 5.5 N/mm2 (DIN 53504)

Tensile strength: 18.5 N/mm2 (DIN 53504)

Elongation at break: 240 % (DIN 53504)

Tear propagation resistance: 10 N/mm (DIN 53515)

Compression set: 20 % at +100 °C / 22 h / 25 %

Sterilization temperature: +121 °C (for perishable foods)

Cleaning temperature: +82 °C (for perishable foods)

Regulations:

For the food processing industry: conforming to FDA (CFR 21 §177.2600)

Free from animal derived ingredients (ADI free)

For perishable foods: 3-A Sanitary Standards Class II

For the drinking water industry: Germany (DVGW), KTW, W270, GB (WRAS)

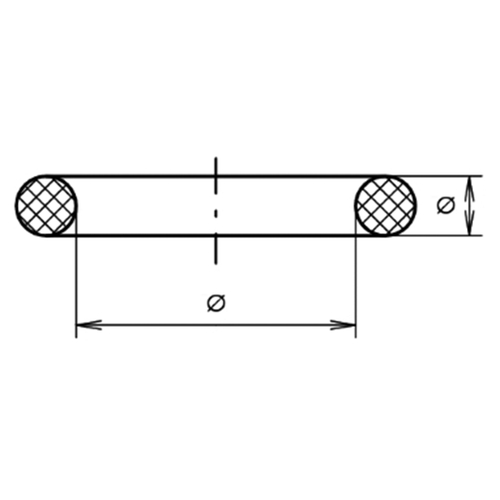

Item Image Inside Ø
mm
Schnur Ø
mm
Einheit
Stück
Price
Euro*
Buy
403850
0,74 1,02 10 50.00
403851
0,74 1,02 20 84.00
403852
1,07 1,27 10 50.00
403853
1,07 1,27 20 84.00
403854
4,2 1,42 10 50.00
403855
4,2 1,42 20 84.00
403856
1,42 1,52 10 50.00
403857
1,42 1,52 20 84.00
403858
6,07 1,63 10 50.00
403859
6,07 1,63 20 84.00
403860
7,65 1,63 10 50.00
403861
7,65 1,63 20 84.00
403862
1,78 1,78 10 50.00
403863
1,78 1,78 20 84.00
403864
2,57 1,78 10 50.00
403865
2,57 1,78 20 84.00
403866
2,9 1,78 10 50.00
403867
2,9 1,78 20 84.00
403868
3,68 1,78 10 50.00
403869
3,68 1,78 20 84.00
403870
4,47 1,78 10 50.00
403871
4,47 1,78 20 84.00
403872
5,28 1,78 10 50.00
403873
5,28 1,78 20 84.00
403874
6,07 1,78 10 50.00
403875
6,07 1,78 20 84.00
403876
7,65 1,78 10 50.00
403877
7,65 1,78 20 84.00
403878
9,25 1,78 10 50.00
403879
9,25 1,78 20 84.00
403880
10,82 1,78 10 58.00
403881
10,82 1,78 20 101.00
403882
12,42 1,78 10 58.00
403883
12,42 1,78 20 101.00
403884
14 1,78 10 58.00
403885
14 1,78 20 101.00
403886
15,6 1,78 10 58.00
403887
15,6 1,78 20 101.00
403888
17,17 1,78 10 58.00
403889
17,17 1,78 20 101.00
403890
18,77 1,78 10 58.00
403891
18,77 1,78 20 101.00
403892
20,35 1,78 10 58.00
403893
20,35 1,78 20 101.00
403894
21,95 1,78 10 58.00
403895
21,95 1,78 20 101.00
403896
23,52 1,78 10 58.00
403897
23,52 1,78 20 101.00
403898
25,12 1,78 10 58.00
403899
25,12 1,78 20 101.00
403900
26,7 1,78 10 71.00
403901
26,7 1,78 20 120.00
403902
28,3 1,78 10 71.00
403903
28,3 1,78 20 120.00
403904
29,87 1,78 10 71.00
403905
29,87 1,78 20 120.00
403906
31,47 1,78 10 71.00
403907
31,47 1,78 20 120.00
403908
33,05 1,78 10 71.00
403909
33,05 1,78 20 120.00
403910
34,65 1,78 10 71.00
403911
34,65 1,78 20 120.00
403912
37,82 1,78 10 71.00
403913
37,82 1,78 20 120.00
403914
41 1,78 10 86.00
403915
41 1,78 20 146.00
403916
44,17 1,78 10 86.00
403917
44,17 1,78 20 146.00
403918
47,35 1,78 10 86.00
403919
47,35 1,78 20 146.00
403920
50,52 1,78 10 86.00
403921
50,52 1,78 20 146.00
403922
53,7 1,78 10 86.00
403923
53,7 1,78 20 146.00
403924
56,87 1,78 10 97.00
403925
56,87 1,78 20 163.00
403926
60,05 1,78 10 97.00
403927
60,05 1,78 20 163.00
403928
63,22 1,78 10 97.00
403929
63,22 1,78 20 163.00
403930
66,4 1,78 10 97.00
403931
66,4 1,78 20 163.00
403932
69,57 1,78 10 97.00
403933
69,57 1,78 20 163.00
403934
72,75 1,78 10 122.00
403935
72,75 1,78 20 206.00
403936
75,92 1,78 10 122.00
403937
75,92 1,78 20 206.00
403938
82,27 1,78 10 122.00
403939
82,27 1,78 20 206.00
403940
88,62 1,78 10 122.00
403941
88,62 1,78 20 206.00
403942
94,97 1,78 10 122.00
403943
94,97 1,78 20 206.00
403944
101,32 1,78 10 137.00
403945
101,32 1,78 20 232.00
403946
107,67 1,78 10 137.00
403947
107,67 1,78 20 232.00
403948
114,02 1,78 10 137.00
403949
114,02 1,78 20 232.00
403950
120,37 1,78 10 137.00
403951
120,37 1,78 20 232.00
403952
126,72 1,78 10 137.00
403953
126,72 1,78 20 232.00
403954
133,07 1,78 10 137.00
403955
133,07 1,78 20 232.00
403956
8,92 1,83 10 65.00
403957
8,92 1,83 20 112.00
403958
10,52 1,83 10 130.00
403959
10,52 1,83 20 224.00
403960
11,89 1,98 10 65.00
403961
11,89 1,98 20 112.00
403962
13,46 2,08 10 130.00
403963
13,46 2,08 20 224.00
403964
16,36 2,21 10 65.00
403965
16,36 2,21 20 112.00
403966
17,93 2,46 10 65.00
403967
17,93 2,46 20 112.00
403968
19,18 2,46 10 65.00
403969
19,18 2,46 20 112.00
403970
21,92 2,46 10 65.00
403971
21,92 2,46 20 112.00
403972
1,24 2,62 10 69.00
403973
1,24 2,62 20 120.00
403974
2,06 2,62 10 69.00
403975
2,06 2,62 20 120.00
403976
2,84 2,62 10 69.00
403977
2,84 2,62 20 120.00
403978
3,63 2,62 10 69.00
403979
3,63 2,62 20 120.00
403980
4,42 2,62 10 69.00
403981
4,42 2,62 20 120.00
403982
5,23 2,62 10 69.00
403983
5,23 2,62 20 120.00
403984
6,02 2,62 10 69.00
403985
6,02 2,62 20 120.00
403986
7,59 2,62 10 69.00
403987
7,59 2,62 20 120.00
403988
9,19 2,62 10 69.00
403989
9,19 2,62 20 120.00
403990
10,77 2,62 10 69.00
403991
10,77 2,62 20 120.00
403992
12,37 2,62 10 69.00
403993
12,37 2,62 20 120.00
403994
13,94 2,62 10 69.00
403995
13,94 2,62 20 120.00
403996
15,54 2,62 10 69.00
403997
15,54 2,62 20 120.00
403998
17,12 2,62 10 69.00
403999
17,12 2,62 20 120.00
404000
18,72 2,62 10 69.00
404001
18,72 2,62 20 120.00
404002
20,29 2,62 10 69.00
404003
20,29 2,62 20 120.00
404004
21,89 2,62 10 69.00
404005
21,89 2,62 20 120.00
404006
23,47 2,62 10 69.00
404007
23,47 2,62 20 120.00
404008
25,07 2,62 10 80.00
404009
25,07 2,62 20 137.00
404010
26,64 2,62 10 80.00
404011
26,64 2,62 20 137.00
404012
28,24 2,62 10 80.00
404013
28,24 2,62 20 137.00
404014
29,82 2,62 10 80.00
404015
29,82 2,62 20 137.00
404016
31,42 2,62 10 80.00
404017
31,42 2,62 20 137.00
404018
32,99 2,62 10 80.00
404019
32,99 2,62 20 137.00
404020
34,59 2,62 10 80.00
404021
34,59 2,62 20 137.00
404022
36,17 2,62 10 80.00
404023
36,17 2,62 20 137.00
404024
37,77 2,62 10 80.00
404025
37,77 2,62 20 137.00
404026
39,34 2,62 10 80.00
404027
39,34 2,62 20 137.00
404028
40,94 2,62 10 88.00
404029
40,94 2,62 20 155.00
404030
42,52 2,62 10 88.00
404031
42,52 2,62 20 155.00
404032
44,12 2,62 10 88.00
404033
44,12 2,62 20 155.00
404034
45,69 2,62 10 88.00
404035
45,69 2,62 20 155.00
404036
47,29 2,62 10 88.00
404037
47,29 2,62 20 155.00
404038
48,9 2,62 10 88.00
404039
48,9 2,62 20 155.00
404040
50,47 2,62 10 88.00
404041
50,47 2,62 20 155.00
404042
52,07 2,62 10 88.00
404043
52,07 2,62 20 155.00
404044
53,64 2,62 10 88.00
404045
53,64 2,62 20 155.00
404046
55,25 2,62 10 105.00
404047
55,25 2,62 20 176.00
404048
56,82 2,62 10 105.00
404049
56,82 2,62 20 176.00
404050
58,42 2,62 10 105.00
404051
58,42 2,62 20 176.00
404052
59,99 2,62 10 105.00
404053
59,99 2,62 20 176.00
404054
61,6 2,62 10 105.00
404055
61,6 2,62 20 176.00
404056
63,17 2,62 10 105.00
404057
63,17 2,62 20 176.00
404058
64,77 2,62 10 120.00
404059
64,77 2,62 20 202.00
404060
66,34 2,62 10 120.00
404061
66,34 2,62 20 202.00
404062
67,95 2,62 10 120.00
404063
67,95 2,62 20 202.00
404064
69,52 2,62 10 120.00
404065
69,52 2,62 20 202.00
404066
71,12 2,62 10 120.00
404067
71,12 2,62 20 202.00
404068
72,69 2,62 10 120.00
404069
72,69 2,62 20 202.00
404070
75,87 2,62 10 152.00
404071
75,87 2,62 20 253.00
404072
82,22 2,62 10 152.00
404073
82,22 2,62 20 253.00
404074
88,57 2,62 10 152.00
404075
88,57 2,62 20 253.00
404076
94,92 2,62 10 152.00
404077
94,92 2,62 20 253.00
404078
101,27 2,62 10 152.00
404079
101,27 2,62 20 253.00
404080
107,62 2,62 5 125.00
404081
107,62 2,62 10 217.00
404082
113,97 2,62 5 125.00
404083
113,97 2,62 10 217.00
404084
120,32 2,62 5 125.00
404085
120,32 2,62 10 217.00
404086
126,67 2,62 5 125.00
404087
126,67 2,62 10 217.00
404088
133,02 2,62 5 125.00
404089
133,02 2,62 10 217.00
404090
139,37 2,62 5 142.00
404091
139,37 2,62 10 247.00
404092
145,72 2,62 5 142.00
404093
145,72 2,62 10 247.00
404094
152,07 2,62 5 142.00
404095
152,07 2,62 10 247.00
404096
158,42 2,62 5 159.00
404097
158,42 2,62 10 277.00
404098
164,77 2,62 5 159.00
404099
164,77 2,62 10 277.00
404100
171,12 2,62 5 159.00
404101
171,12 2,62 10 277.00
404102
177,47 2,62 5 167.00
404103
177,47 2,62 10 287.00
404104
183,82 2,62 5 167.00
404105
183,82 2,62 10 287.00
404106
190,17 2,62 5 167.00
404107
190,17 2,62 10 287.00
404108
196,52 2,62 5 172.00
404109
196,52 2,62 10 289.00
404110
202,87 2,62 5 172.00
404111
202,87 2,62 10 289.00
404112
209,22 2,62 5 172.00
404113
209,22 2,62 10 289.00
404114
215,57 2,62 5 208.00
404115
215,57 2,62 10 341.00
404116
221,92 2,62 5 208.00
404117
221,92 2,62 10 341.00
404118
228,27 2,62 5 208.00
404119
228,27 2,62 10 341.00
404120
234,62 2,62 5 208.00
404121
234,62 2,62 10 341.00
404122
240,97 2,62 5 208.00
404123
240,97 2,62 10 341.00
404124
247,32 2,62 5 208.00
404125
247,32 2,62 10 341.00
404126
23,47 2,95 10 90.00
404127
23,47 2,95 20 157.00
404128
25,04 2,95 10 90.00
404129
25,04 2,95 20 157.00
404130
26,59 2,95 10 90.00
404131
26,59 2,95 20 157.00
404132
29,74 2,95 10 90.00
404133
29,74 2,95 20 157.00
404134
34,42 2,95 10 90.00
404135
34,42 2,95 20 157.00
404136
37,47 3 10 90.00
404137
37,47 3 20 157.00
404138
43,69 3 10 110.00
404139
43,69 3 20 202.00
404140
53,09 3 10 110.00
404141
53,09 3 20 202.00
404142
59,36 3 10 110.00
404143
59,36 3 20 202.00
404144
4,34 3,53 10 80.00
404145
4,34 3,53 20 131.00
404146
5,94 3,53 10 80.00
404147
5,94 3,53 20 131.00
404148
7,52 3,53 10 80.00
404149
7,52 3,53 20 131.00
404150
9,12 3,53 10 80.00
404151
9,12 3,53 20 131.00
404152
10,69 3,53 10 80.00
404153
10,69 3,53 20 131.00
404154
12,29 3,53 10 80.00
404155
12,29 3,53 20 131.00
404156
13,87 3,53 10 80.00
404157
13,87 3,53 20 131.00
404158
15,47 3,53 10 80.00
404159
15,47 3,53 20 131.00
404160
17,04 3,53 10 80.00
404161
17,04 3,53 20 131.00
404162
18,64 3,53 10 80.00
404163
18,64 3,53 20 131.00
404164
20,22 3,53 10 80.00
404165
20,22 3,53 20 131.00
404166
21,82 3,53 10 80.00
404167
21,82 3,53 20 131.00
404168
23,39 3,53 10 80.00
404169
23,39 3,53 20 131.00
404170
24,99 3,53 10 80.00
404171
24,99 3,53 20 131.00
404172
26,57 3,53 10 93.00
404173
26,57 3,53 20 159.00
404174
28,17 3,53 10 93.00
404175
28,17 3,53 20 159.00
404176
29,74 3,53 10 93.00
404177
29,74 3,53 20 159.00
404178
31,34 3,53 10 93.00
404179
31,34 3,53 20 159.00
404180
32,92 3,53 10 93.00
404181
32,92 3,53 20 159.00
404182
34,52 3,53 10 93.00
404183
34,52 3,53 20 159.00
404184
36,09 3,53 10 93.00
404185
36,09 3,53 20 159.00
404186
37,69 3,53 10 93.00
404187
37,69 3,53 20 159.00
404188
40,87 3,53 10 110.00
404189
40,87 3,53 20 185.00
404190
44,04 3,53 10 110.00
404191
44,04 3,53 20 185.00
404192
47,22 3,53 10 110.00
404193
47,22 3,53 20 185.00
404194
50,39 3,53 10 110.00
404195
50,39 3,53 20 185.00
404196
53,57 3,53 10 110.00
404197
53,57 3,53 20 185.00
404198
56,74 3,53 10 126.00
404199
56,74 3,53 20 210.00
404200
59,92 3,53 10 126.00
404201
59,92 3,53 20 210.00
404202
63,09 3,53 10 126.00
404203
63,09 3,53 20 210.00
404204
66,27 3,53 10 126.00
404205
66,27 3,53 20 210.00
404206
69,44 3,53 5 97.00
404207
69,44 3,53 10 167.00
404208
72,62 3,53 5 97.00
404209
72,62 3,53 10 167.00
404210
75,79 3,53 5 97.00
404211
75,79 3,53 10 167.00
404212
78,97 3,53 5 97.00
404213
78,97 3,53 10 167.00
404214
82,14 3,53 5 97.00
404215
82,14 3,53 10 167.00
404216
85,32 3,53 5 97.00
404217
85,32 3,53 10 167.00
404218
88,49 3,53 5 105.00
404219
88,49 3,53 10 185.00
404220
91,67 3,53 5 105.00
404221
91,67 3,53 10 185.00
404222
94,84 3,53 5 105.00
404223
94,84 3,53 10 185.00
404224
98,02 3,53 5 120.00
404225
98,02 3,53 10 210.00
404226
101,19 3,53 5 120.00
404227
101,19 3,53 10 210.00
404228
104,37 3,53 5 120.00
404229
104,37 3,53 10 210.00
404230
107,54 3,53 5 125.00
404231
107,54 3,53 10 214.00
404232
110,72 3,53 5 125.00
404233
110,72 3,53 10 214.00
404234
113,89 3,53 5 125.00
404235
113,89 3,53 10 214.00
404236
117,07 3,53 5 127.00
404237
117,07 3,53 10 217.00
404238
120,24 3,53 5 127.00
404239
120,24 3,53 10 217.00
404240
123,42 3,53 5 127.00
404241
123,42 3,53 10 217.00
404242
126,59 3,53 5 135.00
404243
126,59 3,53 10 227.00
404244
129,77 3,53 5 135.00
404245
129,77 3,53 10 227.00
404246
132,94 3,53 5 135.00
404247
132,94 3,53 10 227.00
404248
136,12 3,53 5 140.00
404249
136,12 3,53 10 234.00
404250
139,29 3,53 5 140.00
404251
139,29 3,53 10 234.00
404252
142,47 3,53 5 140.00
404253
142,47 3,53 10 234.00
404254
145,64 3,53 5 146.00
404255
145,64 3,53 10 249.00
404256
148,82 3,53 5 146.00
404257
148,82 3,53 10 249.00
404258
151,99 3,53 5 146.00
404259
151,99 3,53 10 249.00
404260
158,34 3,53 5 155.00
404261
158,34 3,53 10 259.00
404262
164,69 3,53 5 155.00
404263
164,69 3,53 10 259.00
404264
171,04 3,53 5 155.00
404265
171,04 3,53 10 259.00
404266
177,39 3,53 5 174.00
404267
177,39 3,53 10 287.00
404268
183,74 3,53 5 174.00
404269
183,74 3,53 10 287.00
404270
190,09 3,53 5 174.00
404271
190,09 3,53 10 287.00
404272
196,44 3,53 5 182.00
404273
196,44 3,53 10 300.00
404274
202,79 3,53 5 182.00
404275
202,79 3,53 10 300.00
404276
209,14 3,53 5 182.00
404277
209,14 3,53 10 300.00
404278
215,49 3,53 5 202.00
404279
215,49 3,53 10 328.00
404280
221,84 3,53 5 202.00
404281
221,84 3,53 10 328.00
404282
228,19 3,53 5 202.00
404283
228,19 3,53 10 328.00
404284
234,54 3,53 5 202.00
404285
234,54 3,53 10 328.00
404286
240,89 3,53 5 202.00
404287
240,89 3,53 10 328.00
404288
247,24 3,53 5 202.00
404289
247,24 3,53 10 328.00
404290
253,59 3,53 5 210.00
404291
253,59 3,53 10 334.00
404292
266,29 3,53 5 210.00
404293
266,29 3,53 10 334.00
404294
278,99 3,53 5 210.00
404295
278,99 3,53 10 334.00
404296
291,69 3,53 5 234.00
404297
291,69 3,53 10 369.00
404298
304,39 3,53 5 234.00
404299
304,39 3,53 10 369.00
404300
329,79 3,53 5 234.00
404301
329,79 3,53 10 369.00
404302
355,19 3,53 5 298.00
404303
355,19 3,53 10 467.00
404304
380,59 3,53 5 298.00
404305
380,59 3,53 10 467.00
404306
405,26 3,53 5 298.00
404307
405,26 3,53 10 467.00
404308
430,66 3,53 5 324.00
404309
430,66 3,53 10 501.00
404310
456,06 3,53 5 324.00
404311
456,06 3,53 10 501.00
404312
10,46 5,33 10 99.00
404313
10,46 5,33 20 170.00
404314
12,07 5,33 10 99.00
404315
12,07 5,33 20 170.00
404316
13,64 5,33 10 99.00
404317
13,64 5,33 20 170.00
404318
15,24 5,33 10 99.00
404319
15,24 5,33 20 170.00
404320
16,81 5,33 10 99.00
404321
16,81 5,33 20 170.00
404322
18,42 5,33 10 99.00
404323
18,42 5,33 20 170.00
404324
19,99 5,33 10 99.00
404325
19,99 5,33 20 170.00
404326
21,59 5,33 10 99.00
404327
21,59 5,33 20 170.00
404328
23,16 5,33 10 99.00
404329
23,16 5,33 20 170.00
404330
24,77 5,33 10 99.00
404331
24,77 5,33 20 170.00
404332
26,34 5,33 10 110.00
404333
26,34 5,33 20 185.00
404334
27,94 5,33 10 110.00
404335
27,94 5,33 20 185.00
404336
29,51 5,33 10 110.00
404337
29,51 5,33 20 185.00
404338
31,12 5,33 10 110.00
404339
31,12 5,33 20 185.00
404340
32,69 5,33 10 127.00
404341
32,69 5,33 20 210.00
404342
34,29 5,33 10 127.00
404343
34,29 5,33 20 210.00
404344
37,47 5,33 10 127.00
404345
37,47 5,33 20 210.00
404346
40,64 5,33 10 127.00
404347
40,64 5,33 20 210.00
404348
43,82 5,33 10 148.00
404349
43,82 5,33 20 244.00
404350
46,99 5,33 10 148.00
404351
46,99 5,33 20 244.00
404352
50,17 5,33 10 148.00
404353
50,17 5,33 20 244.00
404354
53,34 5,33 5 112.00
404355
53,34 5,33 10 193.00
404356
56,52 5,33 5 112.00
404357
56,52 5,33 10 193.00
404358
59,69 5,33 5 112.00
404359
59,69 5,33 10 193.00
404360
62,87 5,33 5 127.00
404361
62,87 5,33 10 219.00
404362
66,04 5,33 5 127.00
404363
66,04 5,33 10 219.00
404364
69,22 5,33 5 127.00
404365
69,22 5,33 10 219.00
404366
72,39 5,33 5 140.00
404367
72,39 5,33 10 242.00
404368
75,57 5,33 5 140.00
404369
75,57 5,33 10 242.00
404370
78,74 5,33 5 140.00
404371
78,74 5,33 10 242.00
404372
81,92 5,33 5 144.00
404373
81,92 5,33 10 247.00
404374
85,09 5,33 5 144.00
404375
85,09 5,33 10 247.00
404376
88,27 5,33 5 144.00
404377
88,27 5,33 10 247.00
404378
91,44 5,33 5 157.00
404379
91,44 5,33 10 270.00
404380
94,62 5,33 5 157.00
404381
94,62 5,33 10 270.00
404382
97,79 5,33 5 157.00
404383
97,79 5,33 10 270.00
404384
100,97 5,33 5 172.00
404385
100,97 5,33 10 292.00
404386
104,14 5,33 5 172.00
404387
104,14 5,33 10 292.00
404388
107,32 5,33 5 172.00
404389
107,32 5,33 10 292.00
404390
110,49 5,33 5 178.00
404391
110,49 5,33 10 302.00
404392
113,67 5,33 5 178.00
404393
113,67 5,33 10 302.00
404394
116,84 5,33 5 178.00
404395
116,84 5,33 10 302.00
404396
120,02 5,33 5 193.00
404397
120,02 5,33 10 324.00
404398
123,19 5,33 5 193.00
404399
123,19 5,33 10 324.00
404400
126,37 5,33 5 193.00
404401
126,37 5,33 10 324.00
404402
129,54 5,33 5 193.00
404403
129,54 5,33 10 324.00
404404
132,72 5,33 5 193.00
404405
132,72 5,33 10 324.00
404406
135,89 5,33 5 200.00
404407
135,89 5,33 10 332.00
404408
139,07 5,33 5 200.00
404409
139,07 5,33 10 332.00
404410
142,24 5,33 5 200.00
404411
142,24 5,33 10 332.00
404412
145,42 5,33 5 200.00
404413
145,42 5,33 10 332.00
404414
148,59 5,33 5 200.00
404415
148,59 5,33 10 332.00
404416
151,77 5,33 5 206.00
404417
151,77 5,33 10 339.00
404418
158,12 5,33 5 206.00
404419
158,12 5,33 10 339.00
404420
164,47 5,33 5 206.00
404421
164,47 5,33 10 339.00
404422
170,82 5,33 5 206.00
404423
170,82 5,33 10 339.00
404424
177,17 5,33 5 232.00
404425
177,17 5,33 10 379.00
404426
183,52 5,33 5 232.00
404427
183,52 5,33 10 379.00
404428
189,87 5,33 5 232.00
404429
189,87 5,33 10 379.00
404430
196,22 5,33 5 232.00
404431
196,22 5,33 10 379.00
404432
202,57 5,33 5 247.00
404433
202,57 5,33 10 401.00
404434
208,92 5,33 5 247.00
404435
208,92 5,33 10 401.00
404436
215,27 5,33 5 247.00
404437
215,27 5,33 10 401.00
404438
221,62 5,33 5 247.00
404439
221,62 5,33 10 401.00
404440
227,97 5,33 5 257.00
404441
227,97 5,33 10 411.00
404442
234,32 5,33 5 257.00
404443
234,32 5,33 10 411.00
404444
240,67 5,33 5 257.00
404445
240,67 5,33 10 411.00
404446
247,02 5,33 5 257.00
404447
247,02 5,33 10 411.00
404448
253,37 5,33 5 292.00
404449
253,37 5,33 10 465.00
404450
266,07 5,33 5 292.00
404451
266,07 5,33 10 465.00
404452
278,77 5,33 5 292.00
404453
278,77 5,33 10 465.00
404454
291,47 5,33 5 304.00
404455
291,47 5,33 10 473.00
404456
304,17 5,33 5 304.00
404457
304,17 5,33 10 473.00
404458
329,57 5,33 5 304.00
404459
329,57 5,33 10 473.00
404460
354,97 5,33 5 328.00
404461
354,97 5,33 10 508.00
404462
380,37 5,33 5 351.00
404463
380,37 5,33 10 544.00
404464
405,26 5,33 5 373.00
404465
405,26 5,33 10 583.00
404466
430,66 5,33 5 399.00
404467
430,66 5,33 10 608.00
404468
456,06 5,33 5 399.00
404469
456,06 5,33 10 608.00
404470
481,41 5,33 5 420.00
404471
481,41 5,33 10 645.00
404472
506,81 5,33 5 448.00
404473
506,81 5,33 10 685.00
404474
532,21 5,33 5 434.00
404475
532,21 5,33 10 636.00
404476
557,61 5,33 5 434.00
404477
557,61 5,33 10 636.00
404478
582,68 5,33 5 465.00
404479
582,68 5,33 10 681.00
404480
608,08 5,33 5 465.00
404481
608,08 5,33 10 681.00
404482
633,48 5,33 5 491.00
404483
633,48 5,33 10 717.00
404484
658,88 5,33 5 491.00
404485
658,88 5,33 10 717.00
404486
113,67 6,99 5 182.00
404487
113,67 6,99 10 302.00
404488
116,84 6,99 5 182.00
404489
116,84 6,99 10 302.00
404490
120,02 6,99 5 182.00
404491
120,02 6,99 10 302.00
404492
123,19 6,99 5 197.00
404493
123,19 6,99 10 326.00
404494
126,37 6,99 5 197.00
404495
126,37 6,99 10 326.00
404496
129,54 6,99 5 197.00
404497
129,54 6,99 10 326.00
404498
132,72 6,99 5 210.00
404499
132,72 6,99 10 351.00
404500
135,89 6,99 5 210.00
404501
135,89 6,99 10 351.00
404502
139,07 6,99 5 210.00
404503
139,07 6,99 10 351.00
404504
142,24 6,99 5 227.00
404505
142,24 6,99 10 373.00
404506
145,42 6,99 5 227.00
404507
145,42 6,99 10 373.00
404508
148,59 6,99 5 227.00
404509
148,59 6,99 10 373.00
404510
151,77 6,99 5 227.00
404511
151,77 6,99 10 373.00
404512
158,12 6,99 5 227.00
404513
158,12 6,99 10 373.00
404514
164,47 6,99 5 227.00
404515
164,47 6,99 10 373.00
404516
170,82 6,99 5 255.00
404517
170,82 6,99 10 416.00
404518
177,17 6,99 5 255.00
404519
177,17 6,99 10 416.00
404520
183,52 6,99 5 255.00
404521
183,52 6,99 10 416.00
404522
189,87 6,99 5 270.00
404523
189,87 6,99 10 433.00
404524
196,22 6,99 5 270.00
404525
196,22 6,99 10 433.00
404526
202,57 6,99 5 270.00
404527
202,57 6,99 10 433.00
404528
215,27 6,99 5 270.00
404529
215,27 6,99 10 433.00
404530
227,97 6,99 5 302.00
404531
227,97 6,99 10 480.00
404532
240,67 6,99 5 302.00
404533
240,67 6,99 10 480.00
404534
253,37 6,99 5 302.00
404535
253,37 6,99 10 480.00
404536
266,07 6,99 5 345.00
404537
266,07 6,99 10 516.00
404538
278,77 6,99 5 345.00
404539
278,77 6,99 10 516.00
404540
291,47 6,99 5 345.00
404541
291,47 6,99 10 516.00
404542
304,17 6,99 5 360.00
404543
304,17 6,99 10 559.00
404544
316,87 6,99 5 360.00
404545
316,87 6,99 10 559.00
404546
329,57 6,99 5 388.00
404547
329,57 6,99 10 604.00
404548
342,27 6,99 5 388.00
404549
342,27 6,99 10 604.00
404550
354,97 6,99 5 377.00
404551
354,97 6,99 10 564.00
404552
367,67 6,99 5 377.00
404553
367,67 6,99 10 564.00
404554
380,37 6,99 5 377.00
404555
380,37 6,99 10 564.00
404556
393,07 6,99 5 410.00
404557
393,07 6,99 10 615.00
404558
405,26 6,99 5 410.00
404559
405,26 6,99 10 615.00
404560
417,96 6,99 5 410.00
404561
417,96 6,99 10 615.00
404562
430,66 6,99 5 423.00
404563
430,66 6,99 10 620.00
404564
443,36 6,99 5 423.00
404565
443,36 6,99 10 620.00
404566
456,06 6,99 5 423.00
404567
456,06 6,99 10 620.00
404568
468,76 6,99 5 447.00
404569
468,76 6,99 10 655.00
404570
481,46 6,99 5 447.00
404571
481,46 6,99 10 655.00
404572
494,16 6,99 5 437.00
404573
494,16 6,99 10 624.00
404574
506,86 6,99 5 437.00
404575
506,86 6,99 10 624.00
404576
532,26 6,99 5 483.00
404577
532,26 6,99 10 692.00
404578
557,66 6,99 5 483.00
404579
557,66 6,99 10 692.00
404580
582,68 6,99 5 521.00
404581
582,68 6,99 10 745.00
404582
608,08 6,99 5 521.00
404583
608,08 6,99 10 745.00
404584
633,48 6,99 5 565.00
404585
633,48 6,99 10 807.00
404586
658,88 6,99 5 565.00
404587
658,88 6,99 10 807.00
Similar products
