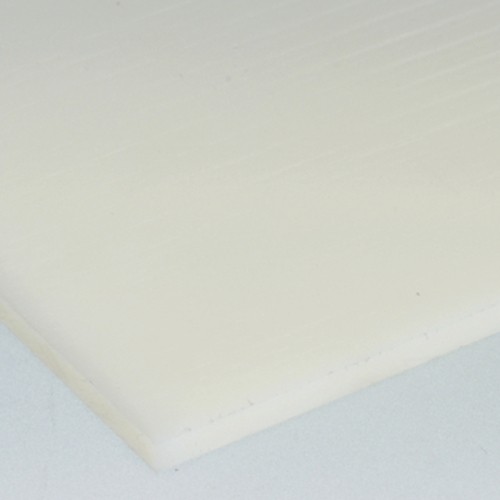

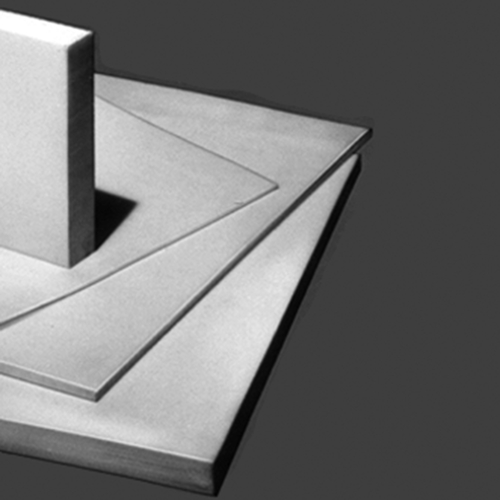

Plate made of PA

Product specification Good mechanical stability Good impact toughness Good abrasion... more

Product specification

Good mechanical stability

Good impact toughness

Good abrasion resistance

Good coefficient of sliding friction

Good temperature resistance

Good resistance to aging

High humidity absorbency causing dimensional alteration

High-quality technical plastic for sliding functions in machine construction

Very good chemical resistance to oils and petrols, but limited stability to acids and alkalis

Application for food

Good resistance to UV

Technical specification

Material: PA 6 (polyamide 6)

Colour: natural

Temperature range: -40 to +85 °C, for a short time +180 °C

Melting point: +220 °C (ISO 11357)

Thermal conductivity: 0,23 W/m * K (DIn 52612)

Heat stability: +75 °C (DIN EN ISO 75)

Density: 1.41 g/cm3

Dielectric constant: 3.9 (50 Hz) (IEC 60250)

Dielectric loss factor: 0.02 (50 Hz) (IEC 60250)

Volume resistivity: 1015 Ohm x cm

Surface resistivity: 1013 Ohm (IEC 60093)

Dielectric strength: 20 kV/mm

Comparative tracking index CTI: 600 (test solution A IEC 60112)

Yield stress: 75 MPa (DIN EN ISO 527)

Tearing strength: >50 % (DIN EN ISO 527)

Tensile modulus: 3,200 MPa (DIN EN ISO 527)

Notch impact strength (Charpy): >3 KJ/m2

Ball pressure hardness: 160 N/mm2 (DIN EN ISO 2039-1)

Shore hardness D: 82° (DIN ISO 7619-1)

Moisture uptake: 3 % (DIN EN ISO 62), saturation value at +23 °C and 50 % RH

Flammability rating (UL 94): HB

Tolerance: DIN ISO 3302-1 E2

Regulations: BgVV food approval

No additional information available.
Item Image Thickness
mm
Abmessung
mm
Einheit
Stück
Price
Euro*
Buy
300016
0,2 500 x 500 1 47.00
300018
0,3 500 x 500 1 55.00
300019
0,4 500 x 500 1 59.00
300020
0,5 500 x 500 1 63.00
300021
1 500 x 500 1 67.00
300022
1,5 500 x 500 1 70.00
300023
2 500 x 500 1 78.00
300024
2,5 500 x 500 1 85.00
300025
3 500 x 500 1 93.00
300026
0,2 1000 x 1000 1 71.00
300028
0,3 1000 x 1000 1 82.00
300029
0,4 1000 x 1000 1 95.00
300030
0,5 1000 x 1000 1 102.00
300031
1 1000 x 1000 1 111.00
300032
1,5 1000 x 1000 1 122.00
300033
2 1000 x 1000 1 139.00
300034
2,5 1000 x 1000 1 154.00
300035
3 1000 x 1000 1 168.00
