General Information O-Rings These O-Ring materials are specially developed for use in the... more

Close menu

General Information O-Rings

These O-Ring materials are specially developed for use in the food processing, pharmaceutical, petrochemical and chemical industries, as well as in technological processes

Design: O-Rings are vulcanised in moulds

Method of operation: O-Rings are double-acting sealing elements. The initial squeeze acting in a radial or axial direction due to the installation gives the O-Ring its initial sealing capability. These forces are superimposed by the system pressure to create the total sealing force which increases with increasing system pressure. Under pressure, the O-Ring behaves in a similar way to a fluid with high surface tension. The pressure is transmitted uniformly to all directions (see Figure Sealing forces).

Compared with other sealing elements, the O-Ring has a wide range of advantages: Inexpensive, allows low cost solutions; simple, one-piece groove design reduces hardware and design costs; compact design allows smaller hardware; easy, foolproof installation reduces risk; applicable to a wide range of sealing problems, static, dynamic, single or double acting; wide compound choice for compatibility with most fluids

Most common applications: Sealing of static machine parts against liquid or gaseous media; as a radial static seal, e.g. for bushings, covers, pipes, cylinders; as an axial static seal, e.g. for flanges, plates, caps; as a dynamic sealing element at axial, rotating and oscillating movements

Branch-specific sealing solutions: Approvals and conformities in the food processing industry: ADI free, FDA, 3-A; Sanitary Standards; pharmaceutical industry: ADI free, USP Class VI

Petrochemical industry: ex. decompression

Chemistry: permeation density and chemical stability

Dimensions: Inched ARP 001 - 932; Metric ID 3 - 193 mm; Cord thickness 1 - 8 mm

Manufacturing: According to the latest standards, with an optimal tool park, for quick and flexible handling, the traceability of materials is guaranteed, all parts go through a quality check before packaging

Usual application areas for elastomers regarding temperature and polarity of the used media

Approvals and certificates in the food, pharmaceutical and drinking water industries (see list of approvals)

Usual cleaning media for continuous plants in the food and pharmaceutical industries (see list of cleaning products)

General Information FPM

Very well suited for use in:

mineral oils, fats and waxes, motor oils and fuels, animal and vegetable fats, aliphatic and aromatic hydrocarbons, amines, hydraulic fluids, essential oils, and in high-temperature applications

Well suited for use in:

CIP / SIP media for continuous plants in the food, beverage and pharmaceutical industries

CIP (Cleaning in Place) = diluted acids or bases combined with cleaning additives

SIP (Sterilization in Place) = disinfectants, steam, oxidizing media (e.g. hypochlorite) and / or polar organic solvents (e.g. acetic acid)

Should not be used in concentrated acids (e.g. nitric or formic acid), concentrated oxidizing media (e.g. peracetic acid)

Outstanding temperature resistance

Very good resistance to ozone, oxygen, aging, and weather

Excellent resistance in mineral oils and fats

Low permeability to gas

Very good resistance in nonpolar media

Shows significant swelling in polar solvents and ketones

Material: FPM (fluorinated rubber)

Color: red or black

Crosslinking: bisphenolic

Shore hardness A: 75° ±5 (test plate) (DIN 53505)

Temperature range: -15 to +200 °C

IRHD: 70 +5 / -8 (o-ring) (DIN ISO 48 M)

Tensile strength: 15.7 N/mm² (DIN53504)

Elongation at break: 160 % (DIN 53504)

Volume resistivity: >10⁹ Ohm

Surface resistance: >10⁹ Ohm

Compression set: 15 % at +175 °C / 24 h / 25 %

Sterilization temperature: +149 °C (perishable foods); +121 °C (pharmacy)

Cleaning temperature: +82 °C (perishable foods)

Regulations:

For the food processing industry: conforming to FDA (CFR 21 Part 77.2600)

Free from animal derived ingredients (ADI free)

For perishable foods: 3-A Sanitary Standards Class II

For the pharmacy: USP Plastic Class VI at +121 °C

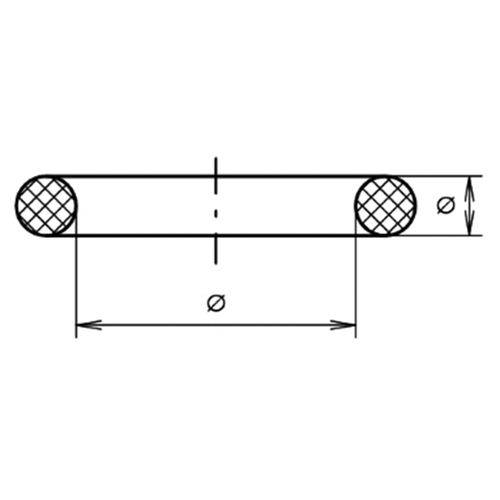

Item	Inside Ø mm	Schnur Ø mm	Einheit Stück	Price Euro*
401516	0,74	1,02	10	112.00
401517	0,74	1,02	20	189.00
401520	4,2	1,42	10	112.00
401521	4,2	1,42	20	189.00
401522	1,42	1,52	10	112.00
401523	1,42	1,52	20	189.00
401524	6,07	1,63	5	93.00
401525	6,07	1,63	10	159.00
401526	7,65	1,63	5	93.00
401527	7,65	1,63	10	159.00
401528	1,78	1,78	5	93.00
401529	1,78	1,78	10	159.00
401530	2,57	1,78	5	93.00
401531	2,57	1,78	10	159.00
401532	2,9	1,78	5	93.00
401533	2,9	1,78	10	159.00
401534	3,68	1,78	5	93.00
401535	3,68	1,78	10	159.00
401536	4,47	1,78	5	93.00
401537	4,47	1,78	10	159.00
401538	5,28	1,78	5	93.00
401539	5,28	1,78	10	159.00
401540	6,07	1,78	5	93.00
401541	6,07	1,78	10	159.00
401542	7,65	1,78	5	93.00
401543	7,65	1,78	10	159.00
401544	9,25	1,78	5	93.00
401545	9,25	1,78	10	159.00
401546	10,82	1,78	5	93.00
401547	10,82	1,78	10	159.00
401548	12,42	1,78	5	93.00
401549	12,42	1,78	10	159.00
401550	14	1,78	5	93.00
401551	14	1,78	10	159.00
401552	15,6	1,78	5	93.00
401553	15,6	1,78	10	159.00
401554	17,17	1,78	5	93.00
401555	17,17	1,78	10	159.00
401556	18,77	1,78	5	93.00
401557	18,77	1,78	10	159.00
401558	20,35	1,78	5	93.00
401559	20,35	1,78	10	159.00
401560	21,95	1,78	5	105.00
401561	21,95	1,78	10	182.00
401562	23,52	1,78	5	105.00
401563	23,52	1,78	10	182.00
401564	25,12	1,78	5	105.00
401565	25,12	1,78	10	182.00
401566	26,7	1,78	5	105.00
401567	26,7	1,78	10	182.00
401568	28,3	1,78	5	122.00
401569	28,3	1,78	10	210.00
401570	29,87	1,78	5	122.00
401571	29,87	1,78	10	210.00
401572	31,47	1,78	5	122.00
401573	31,47	1,78	10	210.00
401574	33,05	1,78	5	122.00
401575	33,05	1,78	10	210.00
401576	34,65	1,78	5	122.00
401577	34,65	1,78	10	210.00
401578	37,82	1,78	5	152.00
401579	37,82	1,78	10	262.00
401580	41	1,78	5	152.00
401581	41	1,78	10	262.00
401582	44,17	1,78	5	152.00
401583	44,17	1,78	10	262.00
401584	47,35	1,78	5	152.00
401585	47,35	1,78	10	262.00
401586	50,52	1,78	5	152.00
401587	50,52	1,78	10	262.00
401588	53,7	1,78	5	170.00
401589	53,7	1,78	10	292.00
401590	56,87	1,78	5	170.00
401591	56,87	1,78	10	292.00
401592	60,05	1,78	5	170.00
401593	60,05	1,78	10	292.00
401594	63,22	1,78	5	170.00
401595	63,22	1,78	10	292.00
401596	66,4	1,78	5	191.00
401597	66,4	1,78	10	328.00
401598	69,57	1,78	5	191.00
401599	69,57	1,78	10	328.00
401600	72,75	1,78	5	191.00
401601	72,75	1,78	10	328.00
401602	75,92	1,78	5	191.00
401603	75,92	1,78	10	328.00
401604	82,27	1,78	5	219.00
401605	82,27	1,78	10	371.00
401606	88,62	1,78	5	219.00
401607	88,62	1,78	10	371.00
401608	94,97	1,78	5	219.00
401609	94,97	1,78	10	371.00
401610	101,32	1,78	5	219.00
401611	101,32	1,78	10	371.00
401612	107,67	1,78	5	234.00
401613	107,67	1,78	10	391.00
401614	114,02	1,78	5	234.00
401615	114,02	1,78	10	391.00
401616	120,37	1,78	5	234.00
401617	120,37	1,78	10	391.00
401618	126,72	1,78	5	234.00
401619	126,72	1,78	10	391.00
401620	133,07	1,78	5	234.00
401621	133,07	1,78	10	391.00
401622	8,92	1,83	5	97.00
401623	8,92	1,83	10	167.00
401624	10,52	1,83	5	97.00
401625	10,52	1,83	10	167.00
401626	11,89	1,98	5	97.00
401627	11,89	1,98	10	167.00
401628	13,46	2,08	5	97.00
401629	13,46	2,08	10	167.00
401630	16,36	2,21	5	97.00
401631	16,36	2,21	10	167.00
401632	17,93	2,46	5	112.00
401633	17,93	2,46	10	191.00
401634	19,18	2,46	5	112.00
401635	19,18	2,46	10	191.00
401636	21,92	2,46	5	112.00
401637	21,92	2,46	10	191.00
401638	1,24	2,62	5	103.00
401639	1,24	2,62	10	178.00
401640	2,06	2,62	5	103.00
401641	2,06	2,62	10	178.00
401642	2,84	2,62	5	103.00
401643	2,84	2,62	10	178.00
401644	3,63	2,62	5	103.00
401645	3,63	2,62	10	178.00
401646	4,42	2,62	5	103.00
401647	4,42	2,62	10	178.00
401648	5,23	2,62	5	103.00
401649	5,23	2,62	10	178.00
401650	6,02	2,62	5	103.00
401651	6,02	2,62	10	178.00
401652	7,59	2,62	5	103.00
401653	7,59	2,62	10	178.00
401654	9,19	2,62	5	103.00
401655	9,19	2,62	10	178.00
401656	10,77	2,62	5	107.00
401657	10,77	2,62	10	191.00
401658	12,37	2,62	5	107.00
401659	12,37	2,62	10	191.00
401660	13,94	2,62	5	107.00
401661	13,94	2,62	10	191.00
401662	15,54	2,62	5	107.00
401663	15,54	2,62	10	191.00
401664	17,12	2,62	5	107.00
401665	17,12	2,62	10	191.00
401666	18,72	2,62	5	122.00
401667	18,72	2,62	10	212.00
401668	20,29	2,62	5	122.00
401669	20,29	2,62	10	212.00
401670	21,89	2,62	5	122.00
401671	21,89	2,62	10	212.00
401672	23,47	2,62	5	122.00
401673	23,47	2,62	10	212.00
401674	25,07	2,62	5	122.00
401675	25,07	2,62	10	212.00
401676	26,64	2,62	5	122.00
401677	26,64	2,62	10	212.00
401678	28,24	2,62	5	144.00
401679	28,24	2,62	10	249.00
401680	29,82	2,62	5	144.00
401681	29,82	2,62	10	249.00
401682	31,42	2,62	5	144.00
401683	31,42	2,62	10	249.00
401684	32,99	2,62	5	144.00
401685	32,99	2,62	10	249.00
401686	34,59	2,62	5	144.00
401687	34,59	2,62	10	249.00
401688	36,17	2,62	5	144.00
401689	36,17	2,62	10	249.00
401690	37,77	2,62	5	144.00
401691	37,77	2,62	10	249.00
401692	39,34	2,62	5	165.00
401693	39,34	2,62	10	283.00
401694	40,94	2,62	5	165.00
401695	40,94	2,62	10	283.00
401696	42,52	2,62	5	165.00
401697	42,52	2,62	10	283.00
401698	44,12	2,62	5	165.00
401699	44,12	2,62	10	283.00
401700	45,69	2,62	5	165.00
401701	45,69	2,62	10	283.00
401702	47,29	2,62	5	165.00
401703	47,29	2,62	10	283.00
401704	48,9	2,62	5	182.00
401705	48,9	2,62	10	313.00
401706	50,47	2,62	5	182.00
401707	50,47	2,62	10	313.00
401708	52,07	2,62	5	182.00
401709	52,07	2,62	10	313.00
401710	53,64	2,62	5	182.00
401711	53,64	2,62	10	313.00
401712	55,25	2,62	5	182.00
401713	55,25	2,62	10	313.00
401714	56,82	2,62	5	182.00
401715	56,82	2,62	10	313.00
401716	58,42	2,62	5	182.00
401717	58,42	2,62	10	313.00
401718	59,99	2,62	5	182.00
401719	59,99	2,62	10	313.00
401720	61,6	2,62	5	197.00
401721	61,6	2,62	10	334.00
401722	63,17	2,62	5	197.00
401723	63,17	2,62	10	334.00
401724	64,77	2,62	5	197.00
401725	64,77	2,62	10	334.00
401726	66,34	2,62	5	197.00
401727	66,34	2,62	10	334.00
401728	67,95	2,62	5	197.00
401729	67,95	2,62	10	334.00
401730	69,52	2,62	5	197.00
401731	69,52	2,62	10	334.00
401732	71,12	2,62	5	232.00
401733	71,12	2,62	10	386.00
401734	72,69	2,62	5	232.00
401735	72,69	2,62	10	386.00
401736	75,87	2,62	5	232.00
401737	75,87	2,62	10	386.00
401738	82,22	2,62	5	232.00
401739	82,22	2,62	10	386.00
401740	88,57	2,62	5	232.00
401741	88,57	2,62	10	386.00
401742	94,92	2,62	5	272.00
401743	94,92	2,62	10	446.00
401744	101,27	2,62	5	272.00
401745	101,27	2,62	10	446.00
401746	107,62	2,62	5	272.00
401747	107,62	2,62	10	446.00
401748	113,97	2,62	5	272.00
401749	113,97	2,62	10	446.00
401750	120,32	2,62	5	289.00
401751	120,32	2,62	10	464.00
401752	126,67	2,62	5	289.00
401753	126,67	2,62	10	464.00
401754	133,02	2,62	5	289.00
401755	133,02	2,62	10	464.00
401756	139,37	2,62	5	331.00
401757	139,37	2,62	10	529.00
401758	145,72	2,62	5	331.00
401759	145,72	2,62	10	529.00
401760	152,07	2,62	5	331.00
401761	152,07	2,62	10	529.00
401762	158,42	2,62	5	379.00
401763	158,42	2,62	10	600.00
401764	164,77	2,62	5	379.00
401765	164,77	2,62	10	600.00
401766	171,12	2,62	5	379.00
401767	171,12	2,62	10	600.00
401768	177,47	2,62	5	379.00
401769	177,47	2,62	10	600.00
401770	183,82	2,62	5	379.00
401771	183,82	2,62	10	600.00
401772	190,17	2,62	5	422.00
401773	190,17	2,62	10	655.00
401774	196,52	2,62	5	422.00
401775	196,52	2,62	10	655.00
401776	202,87	2,62	5	422.00
401777	202,87	2,62	10	655.00
401778	209,22	2,62	5	422.00
401779	209,22	2,62	10	655.00
401780	215,57	2,62	5	422.00
401781	215,57	2,62	10	655.00
401782	221,92	2,62	5	450.00
401783	221,92	2,62	10	647.00
401784	228,27	2,62	5	450.00
401785	228,27	2,62	10	647.00
401786	234,62	2,62	5	450.00
401787	234,62	2,62	10	647.00
401788	240,97	2,62	5	450.00
401789	240,97	2,62	10	647.00
401790	247,32	2,62	5	450.00
401791	247,32	2,62	10	647.00
401792	23,47	2,95	5	148.00
401793	23,47	2,95	10	255.00
401794	25,04	2,95	5	148.00
401795	25,04	2,95	10	255.00
401796	26,59	2,95	5	148.00
401797	26,59	2,95	10	255.00
401798	29,74	2,95	5	148.00
401799	29,74	2,95	10	255.00
401800	34,42	2,95	5	148.00
401801	34,42	2,95	10	255.00
401802	37,47	3	5	163.00
401803	37,47	3	10	279.00
401804	43,69	3	5	163.00
401805	43,69	3	10	279.00
401806	53,09	3	5	210.00
401807	53,09	3	10	354.00
401808	59,36	3	5	210.00
401809	59,36	3	10	354.00
401810	4,34	3,53	5	112.00
401811	4,34	3,53	10	193.00
401812	5,94	3,53	5	112.00
401813	5,94	3,53	10	193.00
401814	7,52	3,53	5	112.00
401815	7,52	3,53	10	193.00
401816	9,12	3,53	5	112.00
401817	9,12	3,53	10	193.00
401818	10,69	3,53	5	112.00
401819	10,69	3,53	10	193.00
401820	12,29	3,53	5	112.00
401821	12,29	3,53	10	193.00
401822	13,87	3,53	5	112.00
401823	13,87	3,53	10	193.00
401824	15,47	3,53	5	129.00
401825	15,47	3,53	10	223.00
401826	17,04	3,53	5	129.00
401827	17,04	3,53	10	223.00
401828	18,64	3,53	5	129.00
401829	18,64	3,53	10	223.00
401830	20,22	3,53	5	129.00
401831	20,22	3,53	10	223.00
401832	21,82	3,53	5	129.00
401833	21,82	3,53	10	223.00
401834	23,39	3,53	5	129.00
401835	23,39	3,53	10	223.00
401836	24,99	3,53	5	148.00
401837	24,99	3,53	10	257.00
401838	26,57	3,53	5	148.00
401839	26,57	3,53	10	257.00
401840	28,17	3,53	5	148.00
401841	28,17	3,53	10	257.00
401842	29,74	3,53	5	148.00
401843	29,74	3,53	10	257.00
401844	31,34	3,53	5	148.00
401845	31,34	3,53	10	257.00
401846	32,92	3,53	5	148.00
401847	32,92	3,53	10	257.00
401848	34,52	3,53	5	178.00
401849	34,52	3,53	10	304.00
401850	36,09	3,53	5	178.00
401851	36,09	3,53	10	304.00
401852	37,69	3,53	5	178.00
401853	37,69	3,53	10	304.00
401854	40,87	3,53	5	178.00
401855	40,87	3,53	10	304.00
401856	44,04	3,53	5	178.00
401857	44,04	3,53	10	304.00
401858	47,22	3,53	5	178.00
401859	47,22	3,53	10	304.00
401860	50,39	3,53	5	210.00
401861	50,39	3,53	10	347.00
401862	53,57	3,53	5	210.00
401863	53,57	3,53	10	347.00
401864	56,74	3,53	5	210.00
401865	56,74	3,53	10	347.00
401866	59,92	3,53	5	210.00
401867	59,92	3,53	10	347.00
401868	63,09	3,53	5	210.00
401869	63,09	3,53	10	347.00
401870	66,27	3,53	5	238.00
401871	66,27	3,53	10	390.00
401872	69,44	3,53	5	238.00
401873	69,44	3,53	10	390.00
401874	72,62	3,53	5	238.00
401875	72,62	3,53	10	390.00
401876	75,79	3,53	5	238.00
401877	75,79	3,53	10	390.00
401878	78,97	3,53	5	238.00
401879	78,97	3,53	10	390.00
401880	82,14	3,53	5	238.00
401881	82,14	3,53	10	390.00
401882	85,32	3,53	5	292.00
401883	85,32	3,53	10	476.00
401884	88,49	3,53	5	292.00
401885	88,49	3,53	10	476.00
401886	91,67	3,53	5	292.00
401887	91,67	3,53	10	476.00
401888	94,84	3,53	5	292.00
401889	94,84	3,53	10	476.00
401890	98,02	3,53	5	292.00
401891	98,02	3,53	10	476.00
401892	101,19	3,53	5	292.00
401893	101,19	3,53	10	476.00
401894	104,37	3,53	5	328.00
401895	104,37	3,53	10	523.00
401896	107,54	3,53	5	328.00
401897	107,54	3,53	10	523.00
401898	110,72	3,53	5	328.00
401899	110,72	3,53	10	523.00
401900	113,89	3,53	5	328.00
401901	113,89	3,53	10	523.00
401902	117,07	3,53	5	328.00
401903	117,07	3,53	10	523.00
401904	120,24	3,53	5	328.00
401905	120,24	3,53	10	523.00
401906	123,42	3,53	5	378.00
401907	123,42	3,53	10	605.00
401908	126,59	3,53	5	378.00
401909	126,59	3,53	10	605.00
401910	129,77	3,53	5	378.00
401911	129,77	3,53	10	605.00
401912	132,94	3,53	5	378.00
401913	132,94	3,53	10	605.00
401914	136,12	3,53	5	378.00
401915	136,12	3,53	10	605.00
401916	139,29	3,53	5	378.00
401917	139,29	3,53	10	605.00
401918	142,47	3,53	5	411.00
401919	142,47	3,53	10	650.00
401920	145,64	3,53	5	411.00
401921	145,64	3,53	10	650.00
401922	148,82	3,53	5	411.00
401923	148,82	3,53	10	650.00
401924	151,99	3,53	5	411.00
401925	151,99	3,53	10	650.00
401926	158,34	3,53	5	411.00
401927	158,34	3,53	10	650.00
401928	164,69	3,53	5	411.00
401929	164,69	3,53	10	650.00
401930	171,04	3,53	5	409.00
401931	171,04	3,53	10	625.00
401932	177,39	3,53	5	409.00
401933	177,39	3,53	10	625.00
401934	183,74	3,53	5	409.00
401935	183,74	3,53	10	625.00
401936	190,09	3,53	5	452.00
401937	190,09	3,53	10	691.00
401938	196,44	3,53	5	452.00
401939	196,44	3,53	10	691.00
401940	202,79	3,53	5	452.00
401941	202,79	3,53	10	691.00
401942	209,14	3,53	5	460.00
401943	209,14	3,53	10	690.00
401944	215,49	3,53	5	460.00
401945	215,49	3,53	10	690.00
401946	221,84	3,53	5	460.00
401947	221,84	3,53	10	690.00
401948	228,19	3,53	5	509.00
401949	228,19	3,53	10	763.00
401950	234,54	3,53	5	509.00
401951	234,54	3,53	10	763.00
401952	240,89	3,53	5	509.00
401953	240,89	3,53	10	763.00
401954	247,24	3,53	5	509.00
401955	247,24	3,53	10	763.00
401956	253,59	3,53	5	518.00
401957	253,59	3,53	10	760.00
401958	266,29	3,53	5	518.00
401959	266,29	3,53	10	760.00
401960	278,99	3,53	5	599.00
401961	278,99	3,53	10	878.00
401962	291,69	3,53	5	599.00
401963	291,69	3,53	10	878.00
401964	304,39	3,53	5	599.00
401965	304,39	3,53	10	878.00
401966	329,79	3,53	5	762.00
401967	329,79	3,53	10	1,118.00
401968	355,19	3,53	5	762.00
401969	355,19	3,53	10	1,118.00
401970	380,59	3,53	5	762.00
401971	380,59	3,53	10	1,118.00
401972	405,26	3,53	5	815.00
401973	405,26	3,53	10	1,195.00
401974	430,66	3,53	5	867.00
401975	430,66	3,53	10	1,273.00
401976	456,06	3,53	5	932.00
401977	456,06	3,53	10	1,367.00
401978	10,46	5,33	5	152.00
401979	10,46	5,33	10	264.00
401980	12,07	5,33	5	152.00
401981	12,07	5,33	10	264.00
401982	13,64	5,33	5	152.00
401983	13,64	5,33	10	264.00
401984	15,24	5,33	5	152.00
401985	15,24	5,33	10	264.00
401986	16,81	5,33	5	152.00
401987	16,81	5,33	10	264.00
401988	18,42	5,33	5	152.00
401989	18,42	5,33	10	264.00
401990	19,99	5,33	5	191.00
401991	19,99	5,33	10	330.00
401992	21,59	5,33	5	191.00
401993	21,59	5,33	10	330.00
401994	23,16	5,33	5	191.00
401995	23,16	5,33	10	330.00
401996	24,77	5,33	5	191.00
401997	24,77	5,33	10	330.00
401998	26,34	5,33	5	191.00
401999	26,34	5,33	10	330.00
402000	27,94	5,33	5	191.00
402001	27,94	5,33	10	330.00
402002	29,51	5,33	5	219.00
402003	29,51	5,33	10	366.00
402004	31,12	5,33	5	219.00
402005	31,12	5,33	10	366.00
402006	32,69	5,33	5	219.00
402007	32,69	5,33	10	366.00
402008	34,29	5,33	5	219.00
402009	34,29	5,33	10	366.00
402010	37,47	5,33	5	219.00
402011	37,47	5,33	10	366.00
402012	40,64	5,33	5	219.00
402013	40,64	5,33	10	366.00
402014	43,82	5,33	5	285.00
402015	43,82	5,33	10	467.00
402016	46,99	5,33	5	285.00
402017	46,99	5,33	10	467.00
402018	50,17	5,33	5	285.00
402019	50,17	5,33	10	467.00
402020	53,34	5,33	5	285.00
402021	53,34	5,33	10	467.00
402022	56,52	5,33	5	285.00
402023	56,52	5,33	10	467.00
402024	59,69	5,33	5	285.00
402025	59,69	5,33	10	467.00
402026	62,87	5,33	5	324.00
402027	62,87	5,33	10	516.00
402028	66,04	5,33	5	324.00
402029	66,04	5,33	10	516.00
402030	69,22	5,33	5	324.00
402031	69,22	5,33	10	516.00
402032	72,39	5,33	5	324.00
402033	72,39	5,33	10	516.00
402034	75,57	5,33	5	324.00
402035	75,57	5,33	10	516.00
402036	78,74	5,33	5	324.00
402037	78,74	5,33	10	516.00
402038	81,92	5,33	5	390.00
402039	81,92	5,33	10	625.00
402040	85,09	5,33	5	390.00
402041	85,09	5,33	10	625.00
402042	88,27	5,33	5	390.00
402043	88,27	5,33	10	625.00
402044	91,44	5,33	5	390.00
402045	91,44	5,33	10	625.00
402046	94,62	5,33	5	390.00
402047	94,62	5,33	10	625.00
402048	97,79	5,33	5	390.00
402049	97,79	5,33	10	625.00
402050	100,97	5,33	5	433.00
402051	100,97	5,33	10	683.00
402052	104,14	5,33	5	433.00
402053	104,14	5,33	10	683.00
402054	107,32	5,33	5	433.00
402055	107,32	5,33	10	683.00
402056	110,49	5,33	5	433.00
402057	110,49	5,33	10	683.00
402058	113,67	5,33	5	433.00
402059	113,67	5,33	10	683.00
402060	116,84	5,33	5	433.00
402061	116,84	5,33	10	683.00
402062	120,02	5,33	5	471.00
402063	120,02	5,33	10	732.00
402064	123,19	5,33	5	471.00
402065	123,19	5,33	10	732.00
402066	126,37	5,33	5	471.00
402067	126,37	5,33	10	732.00
402068	129,54	5,33	5	471.00
402069	129,54	5,33	10	732.00
402070	132,72	5,33	5	471.00
402071	132,72	5,33	10	732.00
402072	135,89	5,33	5	471.00
402073	135,89	5,33	10	732.00
402074	139,07	5,33	5	544.00
402075	139,07	5,33	10	848.00
402076	142,24	5,33	5	544.00
402077	142,24	5,33	10	848.00
402078	145,42	5,33	5	544.00
402079	145,42	5,33	10	848.00
402080	148,59	5,33	5	544.00
402081	148,59	5,33	10	848.00
402082	151,77	5,33	5	544.00
402083	151,77	5,33	10	848.00
402084	158,12	5,33	5	544.00
402085	158,12	5,33	10	848.00
402086	164,47	5,33	5	572.00
402087	164,47	5,33	10	874.00
402088	170,82	5,33	5	572.00
402089	170,82	5,33	10	874.00
402090	177,17	5,33	5	572.00
402091	177,17	5,33	10	874.00
402092	183,52	5,33	5	623.00
402093	183,52	5,33	10	953.00
402094	189,87	5,33	5	623.00
402095	189,87	5,33	10	953.00
402096	196,22	5,33	5	623.00
402097	196,22	5,33	10	953.00
402098	202,57	5,33	5	619.00
402099	202,57	5,33	10	929.00
402100	208,92	5,33	5	619.00
402101	208,92	5,33	10	929.00
402102	215,27	5,33	5	655.00
402103	215,27	5,33	10	983.00
402104	221,62	5,33	5	655.00
402105	221,62	5,33	10	983.00
402106	227,97	5,33	5	692.00
402107	227,97	5,33	10	1,037.00
402108	234,32	5,33	5	692.00
402109	234,32	5,33	10	1,037.00
402110	240,67	5,33	5	670.00
402111	240,67	5,33	10	1,074.00
402112	247,02	5,33	5	670.00
402113	247,02	5,33	10	1,074.00
402114	253,37	5,33	5	723.00
402115	253,37	5,33	10	1,060.00
402116	266,07	5,33	5	723.00
402117	266,07	5,33	10	1,060.00
402118	278,77	5,33	5	737.00
402119	278,77	5,33	10	1,051.00
402120	291,47	5,33	5	737.00
402121	291,47	5,33	10	1,051.00
402122	304,17	5,33	5	761.00
402123	304,17	5,33	10	1,088.00
402124	329,57	5,33	5	822.00
402125	329,57	5,33	10	1,174.00
402126	354,97	5,33	5	883.00
402127	354,97	5,33	10	1,262.00
402128	380,37	5,33	5	946.00
402129	380,37	5,33	10	1,352.00
402130	405,26	5,33	5	1,010.00
402131	405,26	5,33	10	1,442.00
402132	430,66	5,33	5	1,073.00
402133	430,66	5,33	10	1,533.00
402134	456,06	5,33	5	1,138.00
402135	456,06	5,33	10	1,625.00
402136	481,41	5,33	5	1,282.00
402137	481,41	5,33	10	1,831.00
402138	506,81	5,33	5	1,282.00
402139	506,81	5,33	10	1,831.00
402140	532,21	5,33	5	1,406.00
402141	532,21	5,33	10	2,009.00
402142	557,61	5,33	5	1,406.00
402143	557,61	5,33	10	2,009.00
402144	582,68	5,33	5	1,505.00
402145	582,68	5,33	10	2,149.00
402146	608,08	5,33	5	1,505.00
402147	608,08	5,33	10	2,149.00
402148	633,48	5,33	5	1,586.00
402149	633,48	5,33	10	2,267.00
402150	658,88	5,33	5	1,586.00
402151	658,88	5,33	10	2,267.00
402152	113,67	6,99	5	473.00
402153	113,67	6,99	10	737.00
402154	116,84	6,99	5	473.00
402155	116,84	6,99	10	737.00
402156	120,02	6,99	5	473.00
402157	120,02	6,99	10	737.00
402158	123,19	6,99	5	510.00
402159	123,19	6,99	10	792.00
402160	126,37	6,99	5	510.00
402161	126,37	6,99	10	792.00
402162	129,54	6,99	5	510.00
402163	129,54	6,99	10	792.00
402164	132,72	6,99	5	548.00
402165	132,72	6,99	10	850.00
402166	135,89	6,99	5	548.00
402167	135,89	6,99	10	850.00
402168	139,07	6,99	5	548.00
402169	139,07	6,99	10	850.00
402170	142,24	6,99	5	565.00
402171	142,24	6,99	10	863.00
402172	145,42	6,99	5	565.00
402173	145,42	6,99	10	863.00
402174	148,59	6,99	5	565.00
402175	148,59	6,99	10	863.00
402176	151,77	6,99	5	565.00
402177	151,77	6,99	10	863.00
402178	158,12	6,99	5	634.00
402179	158,12	6,99	10	972.00
402180	164,47	6,99	5	634.00
402181	164,47	6,99	10	972.00
402182	170,82	6,99	5	634.00
402183	170,82	6,99	10	972.00
402184	177,17	6,99	5	665.00
402185	177,17	6,99	10	998.00
402186	183,52	6,99	5	665.00
402187	183,52	6,99	10	998.00
402188	189,87	6,99	5	665.00
402189	189,87	6,99	10	998.00
402190	196,22	6,99	5	757.00
402191	196,22	6,99	10	1,130.00
402192	202,57	6,99	5	757.00
402193	202,57	6,99	10	1,130.00
402194	215,27	6,99	5	757.00
402195	215,27	6,99	10	1,130.00
402196	227,97	6,99	5	777.00
402197	227,97	6,99	10	1,109.00
402198	240,67	6,99	5	777.00
402199	240,67	6,99	10	1,109.00
402200	253,37	6,99	5	777.00
402201	253,37	6,99	10	1,109.00
402202	266,07	6,99	5	893.00
402203	266,07	6,99	10	1,276.00
402204	278,77	6,99	5	893.00
402205	278,77	6,99	10	1,276.00
402206	291,47	6,99	5	893.00
402207	291,47	6,99	10	1,276.00
402208	304,17	6,99	5	1,011.00
402209	304,17	6,99	10	1,443.00
402210	316,87	6,99	5	1,011.00
402211	316,87	6,99	10	1,443.00
402212	329,57	6,99	5	1,011.00
402213	329,57	6,99	10	1,443.00
402214	342,27	6,99	5	1,088.00
402215	342,27	6,99	10	1,553.00
402216	354,97	6,99	5	1,088.00
402217	354,97	6,99	10	1,553.00
402218	367,67	6,99	5	1,143.00
402219	367,67	6,99	10	1,633.00
402220	380,37	6,99	5	1,143.00
402221	380,37	6,99	10	1,633.00
402222	393,07	6,99	5	1,215.00
402223	393,07	6,99	10	1,736.00
402224	405,26	6,99	5	1,215.00
402225	405,26	6,99	10	1,736.00
402226	417,96	6,99	5	1,286.00
402227	417,96	6,99	10	1,837.00
402228	430,66	6,99	5	1,286.00
402229	430,66	6,99	10	1,837.00
402230	443,36	6,99	5	1,369.00
402231	443,36	6,99	10	1,956.00
402232	456,06	6,99	5	1,369.00
402233	456,06	6,99	10	1,956.00
402234	468,76	6,99	5	1,447.00
402235	468,76	6,99	10	2,068.00
402236	481,46	6,99	5	1,447.00
402237	481,46	6,99	10	2,068.00
402238	494,16	6,99	5	1,518.00
402239	494,16	6,99	10	2,168.00
402240	506,86	6,99	5	1,518.00
402241	506,86	6,99	10	2,168.00
402242	532,26	6,99	5	1,602.00
402243	532,26	6,99	10	2,288.00
402244	557,66	6,99	5	1,558.00
402245	557,66	6,99	10	2,158.00
402246	582,68	6,99	5	1,619.00
402247	582,68	6,99	10	2,242.00
402248	608,08	6,99	5	1,683.00
402249	608,08	6,99	10	2,330.00
402250	633,48	6,99	5	1,757.00
402251	633,48	6,99	10	2,433.00
402252	658,88	6,99	5	1,826.00
402253	658,88	6,99	10	2,528.00
