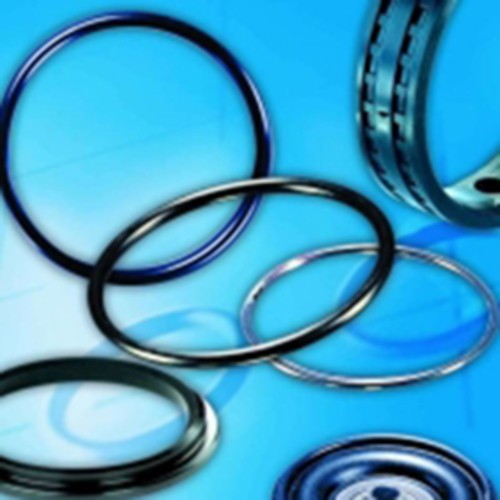

High-Performance FFKM O-Rings

Technical specification Material: FFKM (perfluoroelastomer) Crosslinking:... more

Close menu

Technical specification

Material: FFKM (perfluoroelastomer)

Crosslinking: peroxidic

Color: black

Shore hardness A: 75° ±5 (test plate) (DIN 53505)

Temperature range: -10 to +260 °C, for a short time +300 °C

Density: 1.95 g/cm³ (DIN EN ISO 1183)

Tensile modulus at 100 % elongation: 8.9 N/mm² (DIN 53504)

Tensile strength: 16.8 N/mm² (DIN 53504)

Elongation at break: 172 % (DIN 53504)

Compression set: 26 % at +200 °C / 70 h (DIN ISO 815 B)

Cold guide value: -1 °C (DIN 53765 DSC)

General Information O-Rings These O-Ring materials are specially developed for use in the... more

Close menu

General Information O-Rings

These O-Ring materials are specially developed for use in the food processing, pharmaceutical, petrochemical and chemical industries, as well as in technological processes

Design: O-Rings are vulcanised in moulds

Method of operation: O-Rings are double-acting sealing elements. The initial squeeze acting in a radial or axial direction due to the installation gives the O-Ring its initial sealing capability. These forces are superimposed by the system pressure to create the total sealing force which increases with increasing system pressure. Under pressure, the O-Ring behaves in a similar way to a fluid with high surface tension. The pressure is transmitted uniformly to all directions (see Figure Sealing forces).

Compared with other sealing elements, the O-Ring has a wide range of advantages: Inexpensive, allows low cost solutions; simple, one-piece groove design reduces hardware and design costs; compact design allows smaller hardware; easy, foolproof installation reduces risk; applicable to a wide range of sealing problems, static, dynamic, single or double acting; wide compound choice for compatibility with most fluids

Most common applications: Sealing of static machine parts against liquid or gaseous media; as a radial static seal, e.g. for bushings, covers, pipes, cylinders; as an axial static seal, e.g. for flanges, plates, caps; as a dynamic sealing element at axial, rotating and oscillating movements

Branch-specific sealing solutions: Approvals and conformities in the food processing industry: ADI free, FDA, 3-A; Sanitary Standards; pharmaceutical industry: ADI free, USP Class VI

Petrochemical industry: ex. decompression

Chemistry: permeation density and chemical stability

Dimensions: Inched ARP 001 - 932; Metric ID 3 - 193 mm; Cord thickness 1 - 8 mm

Manufacturing: According to the latest standards, with an optimal tool park, for quick and flexible handling, the traceability of materials is guaranteed, all parts go through a quality check before packaging

Usual application areas for elastomers regarding temperature and polarity of the used media

Approvals and certificates in the food, pharmaceutical and drinking water industries (see list of approvals)

Usual cleaning media for continuous plants in the food and pharmaceutical industries (see list of cleaning products)

General Information FFKM

Very well suited for use in:

static and dynamic applications, applications involving constant temperature changes, all fats, mineral oils and waxes, fuels, water and water steam, concentrated acids (e.g. nitric acid 60 %), amines (e.g. ethylenediamine), organic acids (e.g. acetic acid), ketones (e.g. methyl ethyl ketone), bases (e.g. caustic soda, potassium hydroxide), organic solvents (e.g. methanol), aromatic and chlorinated hydrocarbons

Extremely resistant to a variety of chemicals from different reactive, functional groups (comparable to PTFE)

FFKM offers the highest degree of fluorination among elastomers

High bond energy between carbon and fluorine atoms

No cold flow compared to PTFE

Highest temperature and media resistance combined with rubber-elastic properties

FFKM is suitable for use in polar and non-polar media, even in higher concentrations and at higher temperatures

Sealing solution for applications related to safety

Highly pure, proven material

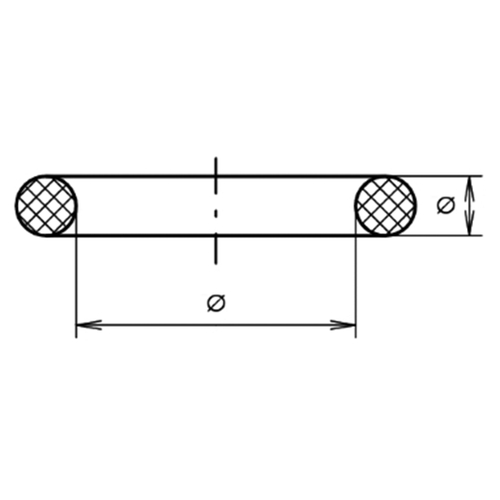

Item	Inside Ø mm	Schnur Ø mm	Einheit Stück	Price Euro*
405366	0,74	1,02	1	230.00
405367	0,74	1,02	3	566.00
405368	1,07	1,27	1	230.00
405369	1,07	1,27	3	566.00
405370	4,2	1,42	1	230.00
405371	4,2	1,42	3	566.00
405372	1,42	1,52	1	249.00
405373	1,42	1,52	3	559.00
405374	6,07	1,63	1	249.00
405375	6,07	1,63	3	602.00
405376	7,65	1,63	1	249.00
405377	7,65	1,63	3	602.00
405378	1,78	1,78	1	249.00
405379	1,78	1,78	3	602.00
405380	2,57	1,78	1	249.00
405381	2,57	1,78	3	602.00
405382	2,9	1,78	1	249.00
405383	2,9	1,78	3	602.00
405384	3,68	1,78	1	249.00
405385	3,68	1,78	3	602.00
405386	4,47	1,78	1	249.00
405387	4,47	1,78	3	602.00
405388	5,28	1,78	1	249.00
405389	5,28	1,78	3	602.00
405390	6,07	1,78	1	249.00
405391	6,07	1,78	3	602.00
405392	7,65	1,78	1	249.00
405393	7,65	1,78	3	602.00
405394	9,25	1,78	1	249.00
405395	9,25	1,78	3	602.00
405396	10,82	1,78	1	252.00
405397	10,82	1,78	3	622.00
405398	12,42	1,78	1	252.00
405399	12,42	1,78	3	622.00
405400	14	1,78	1	252.00
405401	14	1,78	3	622.00
405402	15,6	1,78	1	252.00
405403	15,6	1,78	3	622.00
405404	17,17	1,78	1	288.00
405405	17,17	1,78	3	708.00
405406	18,77	1,78	1	288.00
405407	18,77	1,78	3	708.00
405408	20,35	1,78	1	325.00
405409	20,35	1,78	3	801.00
405410	21,95	1,78	1	325.00
405411	21,95	1,78	3	801.00
405412	23,52	1,78	1	378.00
405413	23,52	1,78	3	924.00
405414	25,12	1,78	1	378.00
405415	25,12	1,78	3	924.00
405416	26,7	1,78	1	409.00
405417	26,7	1,78	3	1,011.00
405418	28,3	1,78	1	409.00
405419	28,3	1,78	3	1,011.00
405420	29,87	1,78	1	487.00
405421	29,87	1,78	3	1,184.00
405422	31,47	1,78	1	487.00
405423	31,47	1,78	3	1,184.00
405424	33,05	1,78	1	538.00
405425	33,05	1,78	3	1,308.00
405426	34,65	1,78	1	560.00
405427	34,65	1,78	3	1,336.00
405428	37,82	1,78	1	560.00
405429	37,82	1,78	3	1,336.00
405430	41	1,78	1	678.00
405431	41	1,78	3	1,632.00
405432	44,17	1,78	1	678.00
405433	44,17	1,78	3	1,632.00
405434	47,35	1,78	1	770.00
405435	47,35	1,78	3	1,840.00
405436	50,52	1,78	1	770.00
405437	50,52	1,78	3	1,840.00
405438	53,7	1,78	1	792.00
405439	53,7	1,78	3	1,845.00
405440	56,87	1,78	1	792.00
405441	56,87	1,78	3	1,845.00
405442	60,05	1,78	1	935.00
405443	60,05	1,78	3	2,184.00
405444	63,22	1,78	1	935.00
405445	63,22	1,78	3	2,184.00
405446	66,4	1,78	1	1,022.00
405447	66,4	1,78	3	2,299.00
405448	69,57	1,78	1	1,022.00
405449	69,57	1,78	3	2,299.00
405450	72,75	1,78	1	1,117.00
405451	72,75	1,78	3	2,506.00
405452	75,92	1,78	1	1,117.00
405453	75,92	1,78	3	2,506.00
405454	82,27	1,78	1	1,145.00
405455	82,27	1,78	3	2,531.00
405456	88,62	1,78	1	1,145.00
405457	88,62	1,78	3	2,531.00
405458	94,97	1,78	1	1,246.00
405459	94,97	1,78	3	2,747.00
405460	101,32	1,78	1	1,333.00
405461	101,32	1,78	3	2,946.00
405462	107,67	1,78	1	1,476.00
405463	107,67	1,78	3	3,256.00
405464	114,02	1,78	1	1,599.00
405465	114,02	1,78	3	3,528.00
405466	120,37	1,78	1	1,772.00
405467	120,37	1,78	3	3,920.00
405468	126,72	1,78	1	1,772.00
405469	126,72	1,78	3	3,920.00
405470	133,07	1,78	1	1,862.00
405471	133,07	1,78	3	4,110.00
405472	8,92	1,83	1	263.00
405473	8,92	1,83	3	638.00
405474	10,52	1,83	1	263.00
405475	10,52	1,83	3	638.00
405476	11,89	1,98	1	263.00
405477	11,89	1,98	3	638.00
405478	13,46	2,08	1	333.00
405479	13,46	2,08	3	809.00
405480	16,36	2,21	1	333.00
405481	16,36	2,21	3	809.00
405482	17,93	2,46	1	364.00
405483	17,93	2,46	3	893.00
405484	19,18	2,46	1	305.00
405485	19,18	2,46	3	742.00
405486	21,92	2,46	1	305.00
405487	21,92	2,46	3	742.00
405488	1,24	2,62	1	305.00
405489	1,24	2,62	3	742.00
405490	2,06	2,62	1	305.00
405491	2,06	2,62	3	742.00
405492	2,84	2,62	1	305.00
405493	2,84	2,62	3	742.00
405494	3,63	2,62	1	305.00
405495	3,63	2,62	3	742.00
405496	4,42	2,62	1	305.00
405497	4,42	2,62	3	742.00
405498	5,23	2,62	1	342.00
405499	5,23	2,62	3	820.00
405500	6,02	2,62	1	342.00
405501	6,02	2,62	3	820.00
405502	7,59	2,62	1	342.00
405503	7,59	2,62	3	820.00
405504	9,19	2,62	1	386.00
405505	9,19	2,62	3	949.00
405506	10,77	2,62	1	386.00
405507	10,77	2,62	3	949.00
405508	12,37	2,62	1	386.00
405509	12,37	2,62	3	949.00
405510	13,94	2,62	1	386.00
405511	13,94	2,62	3	949.00
405512	15,54	2,62	1	456.00
405513	15,54	2,62	3	1,117.00
405514	17,12	2,62	1	456.00
405515	17,12	2,62	3	1,117.00
405516	18,72	2,62	1	456.00
405517	18,72	2,62	3	1,117.00
405518	20,29	2,62	1	507.00
405519	20,29	2,62	3	1,240.00
405520	21,89	2,62	1	507.00
405521	21,89	2,62	3	1,240.00
405522	23,47	2,62	1	507.00
405523	23,47	2,62	3	1,240.00
405524	25,07	2,62	1	580.00
405525	25,07	2,62	3	1,425.00
405526	26,64	2,62	1	580.00
405527	26,64	2,62	3	1,425.00
405528	28,24	2,62	1	580.00
405529	28,24	2,62	3	1,425.00
405530	29,82	2,62	1	664.00
405531	29,82	2,62	3	1,593.00
405532	31,42	2,62	1	664.00
405533	31,42	2,62	3	1,593.00
405534	32,99	2,62	1	664.00
405535	32,99	2,62	3	1,593.00
405536	34,59	2,62	1	773.00
405537	34,59	2,62	3	1,851.00
405538	36,17	2,62	1	773.00
405539	36,17	2,62	3	1,860.00
405540	37,77	2,62	1	773.00
405541	37,77	2,62	3	1,851.00
405542	39,34	2,62	1	820.00
405543	39,34	2,62	3	1,918.00
405544	40,94	2,62	1	820.00
405545	40,94	2,62	3	1,918.00
405546	42,52	2,62	1	820.00
405547	42,52	2,62	3	1,918.00
405548	44,12	2,62	1	820.00
405549	44,12	2,62	3	1,918.00
405550	45,69	2,62	1	893.00
405551	45,69	2,62	3	2,083.00
405552	47,29	2,62	1	893.00
405553	47,29	2,62	3	2,083.00
405554	48,9	2,62	1	893.00
405555	48,9	2,62	3	2,083.00
405556	50,47	2,62	1	949.00
405557	50,47	2,62	3	2,215.00
405558	52,07	2,62	1	949.00
405559	52,07	2,62	3	2,215.00
405560	53,64	2,62	1	949.00
405561	53,64	2,62	3	2,215.00
405562	55,25	2,62	1	1,033.00
405563	55,25	2,62	3	2,414.00
405564	56,82	2,62	1	1,033.00
405565	56,82	2,62	3	2,414.00
405566	58,42	2,62	1	1,033.00
405567	58,42	2,62	3	2,414.00
405568	59,99	2,62	1	991.00
405569	59,99	2,62	3	2,237.00
405570	61,6	2,62	1	991.00
405571	61,6	2,62	3	2,237.00
405572	63,17	2,62	1	1,070.00
405573	63,17	2,62	3	2,397.00
405574	64,77	2,62	1	1,070.00
405575	64,77	2,62	3	2,397.00
405576	66,34	2,62	1	1,070.00
405577	66,34	2,62	3	2,397.00
405578	67,95	2,62	1	1,134.00
405579	67,95	2,62	3	2,495.00
405580	69,52	2,62	1	1,134.00
405581	69,52	2,62	3	2,495.00
405582	71,12	2,62	1	1,134.00
405583	71,12	2,62	3	2,495.00
405584	72,69	2,62	1	1,308.00
405585	72,69	2,62	3	2,890.00
405586	75,87	2,62	1	1,308.00
405587	75,87	2,62	3	2,890.00
405588	82,22	2,62	1	1,456.00
405589	82,22	2,62	3	3,217.00
405590	88,57	2,62	1	1,560.00
405591	88,57	2,62	3	3,447.00
405592	94,92	2,62	1	1,767.00
405593	94,92	2,62	3	3,900.00
405594	101,27	2,62	1	1,870.00
405595	101,27	2,62	3	4,130.00
405596	107,62	2,62	1	1,949.00
405597	107,62	2,62	3	4,306.00
405598	113,97	2,62	1	1,985.00
405599	113,97	2,62	3	4,382.00
405600	120,32	2,62	1	2,019.00
405601	120,32	2,62	3	4,463.00
405602	126,67	2,62	1	2,064.00
405603	126,67	2,62	3	4,558.00
405604	133,02	2,62	1	2,330.00
405605	133,02	2,62	3	5,144.00
405606	139,37	2,62	1	2,458.00
405607	139,37	2,62	3	5,435.00
405608	145,72	2,62	1	2,654.00
405609	145,72	2,62	3	5,869.00
405610	152,07	2,62	1	2,724.00
405611	152,07	2,62	3	6,023.00
405612	158,42	2,62	1	2,786.00
405613	158,42	2,62	3	6,160.00
405614	164,77	2,62	1	2,937.00
405615	164,77	2,62	3	6,490.00
405616	171,12	2,62	1	3,016.00
405617	171,12	2,62	3	6,661.00
405618	177,47	2,62	1	3,088.00
405619	177,47	2,62	3	6,818.00
405620	183,82	2,62	1	3,130.00
405621	183,82	2,62	3	6,919.00
405622	190,17	2,62	1	3,130.00
405623	190,17	2,62	3	6,919.00
405624	196,52	2,62	1	3,175.00
405625	196,52	2,62	3	7,014.00
405626	202,87	2,62	1	3,217.00
405627	202,87	2,62	3	7,115.00
405628	209,22	2,62	1	3,254.00
405629	209,22	2,62	3	7,190.00
405630	215,57	2,62	1	3,298.00
405631	215,57	2,62	3	7,286.00
405632	221,92	2,62	1	3,590.00
405633	221,92	2,62	3	7,930.00
405634	228,27	2,62	1	3,643.00
405635	228,27	2,62	3	8,047.00
405636	234,62	2,62	1	3,704.00
405637	234,62	2,62	3	8,182.00
405638	240,97	2,62	1	3,774.00
405639	240,97	2,62	3	8,338.00
405640	247,32	2,62	1	3,808.00
405641	247,32	2,62	3	8,546.00
405642	23,47	2,95	1	563.00
405643	23,47	2,95	3	1,380.00
405644	25,04	2,95	1	563.00
405645	25,04	2,95	3	1,380.00
405646	26,59	2,95	1	616.00
405647	26,59	2,95	3	1,481.00
405648	29,74	2,95	1	616.00
405649	29,74	2,95	3	1,481.00
405650	34,42	2,95	1	748.00
405651	34,42	2,95	3	1,739.00
405652	37,47	3	1	748.00
405653	37,47	3	3	1,739.00
405654	43,69	3	1	865.00
405655	43,69	3	3	2,033.00
405656	53,09	3	1	918.00
405657	53,09	3	3	2,069.00
405658	59,36	3	1	1,061.00
405659	59,36	3	3	2,380.00
405660	4,34	3,53	1	459.00
405661	4,34	3,53	3	1,126.00
405662	5,94	3,53	1	459.00
405663	5,94	3,53	3	1,126.00
405664	7,52	3,53	1	459.00
405665	7,52	3,53	3	1,126.00
405666	9,12	3,53	1	459.00
405667	9,12	3,53	3	1,126.00
405668	10,69	3,53	1	571.00
405669	10,69	3,53	3	1,394.00
405670	12,29	3,53	1	571.00
405671	12,29	3,53	3	1,394.00
405672	13,87	3,53	1	571.00
405673	13,87	3,53	3	1,394.00
405674	15,47	3,53	1	571.00
405675	15,47	3,53	3	1,394.00
405676	17,04	3,53	1	636.00
405677	17,04	3,53	3	1,574.00
405678	18,64	3,53	1	636.00
405679	18,64	3,53	3	1,574.00
405680	20,22	3,53	1	636.00
405681	20,22	3,53	3	1,574.00
405682	21,82	3,53	1	658.00
405683	21,82	3,53	3	1,593.00
405684	23,39	3,53	1	658.00
405685	23,39	3,53	3	1,593.00
405686	24,99	3,53	1	658.00
405687	24,99	3,53	3	1,593.00
405688	26,57	3,53	1	731.00
405689	26,57	3,53	3	1,756.00
405690	28,17	3,53	1	731.00
405691	28,17	3,53	3	1,756.00
405692	29,74	3,53	1	731.00
405693	29,74	3,53	3	1,756.00
405694	31,34	3,53	1	781.00
405695	31,34	3,53	3	1,823.00
405696	32,92	3,53	1	781.00
405697	32,92	3,53	3	1,823.00
405698	34,52	3,53	1	781.00
405699	34,52	3,53	3	1,823.00
405700	36,09	3,53	1	924.00
405701	36,09	3,53	3	2,164.00
405702	37,69	3,53	1	924.00
405703	37,69	3,53	3	2,164.00
405704	40,87	3,53	1	924.00
405705	40,87	3,53	3	2,164.00
405706	44,04	3,53	1	991.00
405707	44,04	3,53	3	2,237.00
405708	47,22	3,53	1	991.00
405709	47,22	3,53	3	2,237.00
405710	50,39	3,53	1	991.00
405711	50,39	3,53	3	2,237.00
405712	53,57	3,53	1	1,126.00
405713	53,57	3,53	3	2,528.00
405714	56,74	3,53	1	1,126.00
405715	56,74	3,53	3	2,528.00
405716	59,92	3,53	1	1,126.00
405717	59,92	3,53	3	2,528.00
405718	63,09	3,53	1	1,229.00
405719	63,09	3,53	3	2,724.00
405720	66,27	3,53	1	1,229.00
405721	66,27	3,53	3	2,724.00
405722	69,44	3,53	1	1,336.00
405723	69,44	3,53	3	2,968.00
405724	72,62	3,53	1	1,336.00
405725	72,62	3,53	3	2,968.00
405726	75,79	3,53	1	1,336.00
405727	75,79	3,53	3	2,968.00
405728	78,97	3,53	1	1,439.00
405729	78,97	3,53	3	3,198.00
405730	82,14	3,53	1	1,439.00
405731	82,14	3,53	3	3,198.00
405732	85,32	3,53	1	1,604.00
405733	85,32	3,53	3	3,545.00
405734	88,49	3,53	1	1,604.00
405735	88,49	3,53	3	3,545.00
405736	91,67	3,53	1	1,719.00
405737	91,67	3,53	3	3,800.00
405738	94,84	3,53	1	1,719.00
405739	94,84	3,53	3	3,800.00
405740	98,02	3,53	1	1,747.00
405741	98,02	3,53	3	3,858.00
405742	101,19	3,53	1	1,949.00
405743	101,19	3,53	3	4,306.00
405744	104,37	3,53	1	1,949.00
405745	104,37	3,53	3	4,306.00
405746	107,54	3,53	1	2,019.00
405747	107,54	3,53	3	4,463.00
405748	110,72	3,53	1	2,019.00
405749	110,72	3,53	3	4,463.00
405750	113,89	3,53	1	2,064.00
405751	113,89	3,53	3	4,558.00
405752	117,07	3,53	1	2,134.00
405753	117,07	3,53	3	4,715.00
405754	120,24	3,53	1	2,178.00
405755	120,24	3,53	3	4,816.00
405756	123,42	3,53	1	2,265.00
405757	123,42	3,53	3	5,012.00
405758	126,59	3,53	1	2,282.00
405759	126,59	3,53	3	5,048.00
405760	129,77	3,53	1	2,397.00
405761	129,77	3,53	3	5,300.00
405762	132,94	3,53	1	2,453.00
405763	132,94	3,53	3	5,418.00
405764	136,12	3,53	1	2,478.00
405765	136,12	3,53	3	5,477.00
405766	139,29	3,53	1	2,495.00
405767	139,29	3,53	3	5,516.00
405768	142,47	3,53	1	2,556.00
405769	142,47	3,53	3	5,650.00
405770	145,64	3,53	1	2,615.00
405771	145,64	3,53	3	5,785.00
405772	148,82	3,53	1	2,666.00
405773	148,82	3,53	3	5,883.00
405774	151,99	3,53	1	2,708.00
405775	151,99	3,53	3	5,894.00
405776	158,34	3,53	1	2,744.00
405777	158,34	3,53	3	6,059.00
405778	164,69	3,53	1	2,808.00
405779	164,69	3,53	3	6,216.00
405780	171,04	3,53	1	2,884.00
405781	171,04	3,53	3	6,370.00
405782	177,39	3,53	1	2,974.00
405783	177,39	3,53	3	6,569.00
405784	183,74	3,53	1	3,060.00
405785	183,74	3,53	3	6,762.00
405786	190,09	3,53	1	3,192.00
405787	190,09	3,53	3	7,056.00
405788	196,44	3,53	1	3,217.00
405789	196,44	3,53	3	7,115.00
405790	202,79	3,53	1	3,245.00
405791	202,79	3,53	3	7,171.00
405792	209,14	3,53	1	3,290.00
405793	209,14	3,53	3	7,266.00
405794	215,49	3,53	1	3,360.00
405795	215,49	3,53	3	7,423.00
405796	221,84	3,53	1	3,405.00
405797	221,84	3,53	3	7,521.00
405798	228,19	3,53	1	3,528.00
405799	228,19	3,53	3	7,795.00
405800	234,54	3,53	1	3,713.00
405801	234,54	3,53	3	8,207.00
405802	240,89	3,53	1	3,788.00
405803	240,89	3,53	3	8,378.00
405804	247,24	3,53	1	3,914.00
405805	247,24	3,53	3	8,649.00
405806	253,59	3,53	1	3,996.00
405807	253,59	3,53	3	8,826.00
405808	266,29	3,53	1	4,026.00
405809	266,29	3,53	3	8,898.00
405810	278,99	3,53	1	4,150.00
405811	278,99	3,53	3	9,176.00
405812	291,69	3,53	1	4,225.00
405813	291,69	3,53	3	9,332.00
405814	304,39	3,53	1	4,404.00
405815	304,39	3,53	3	9,761.00
405816	329,79	3,53	1	4,707.00
405817	329,79	3,53	3	10,405.00
405818	355,19	3,53	1	5,029.00
405819	355,19	3,53	3	11,122.00
405820	380,59	3,53	1	5,298.00
405821	380,59	3,53	3	11,710.00
405822	405,26	3,53	1	5,631.00
405823	405,26	3,53	3	12,443.00
405824	430,66	3,53	1	5,956.00
405825	430,66	3,53	3	13,143.00
405826	456,06	3,53	1	6,328.00
405827	456,06	3,53	3	13,978.00
405828	10,46	5,33	1	801.00
405829	10,46	5,33	3	1,792.00
405830	12,07	5,33	1	801.00
405831	12,07	5,33	3	1,792.00
405832	13,64	5,33	1	865.00
405833	13,64	5,33	3	2,022.00
405834	15,24	5,33	1	865.00
405835	15,24	5,33	3	2,022.00
405836	16,81	5,33	1	865.00
405837	16,81	5,33	3	2,022.00
405838	18,42	5,33	1	1,000.00
405839	18,42	5,33	3	2,324.00
405840	19,99	5,33	1	1,000.00
405841	19,99	5,33	3	2,324.00
405842	21,59	5,33	1	1,000.00
405843	21,59	5,33	3	2,324.00
405844	23,16	5,33	1	1,075.00
405845	23,16	5,33	3	2,411.00
405846	24,77	5,33	1	1,075.00
405847	24,77	5,33	3	2,411.00
405848	26,34	5,33	1	1,075.00
405849	26,34	5,33	3	2,411.00
405850	27,94	5,33	1	1,075.00
405851	27,94	5,33	3	2,411.00
405852	29,51	5,33	1	1,126.00
405853	29,51	5,33	3	2,486.00
405854	31,12	5,33	1	1,126.00
405855	31,12	5,33	3	2,486.00
405856	32,69	5,33	1	1,126.00
405857	32,69	5,33	3	2,486.00
405858	34,29	5,33	1	1,218.00
405859	34,29	5,33	3	2,702.00
405860	37,47	5,33	1	1,218.00
405861	37,47	5,33	3	2,702.00
405862	40,64	5,33	1	1,408.00
405863	40,64	5,33	3	3,102.00
405864	43,82	5,33	1	1,408.00
405865	43,82	5,33	3	3,102.00
405866	46,99	5,33	1	1,529.00
405867	46,99	5,33	3	3,368.00
405868	50,17	5,33	1	1,632.00
405869	50,17	5,33	3	3,592.00
405870	53,34	5,33	1	1,666.00
405871	53,34	5,33	3	3,682.00
405872	56,52	5,33	1	1,719.00
405873	56,52	5,33	3	3,791.00
405874	59,69	5,33	1	1,834.00
405875	59,69	5,33	3	4,057.00
405876	62,87	5,33	1	1,893.00
405877	62,87	5,33	3	4,186.00
405878	66,04	5,33	1	1,954.00
405879	66,04	5,33	3	4,309.00
405880	69,22	5,33	1	2,080.00
405881	69,22	5,33	3	4,598.00
405882	72,39	5,33	1	2,173.00
405883	72,39	5,33	3	4,796.00
405884	75,57	5,33	1	2,324.00
405885	75,57	5,33	3	5,169.00
405886	78,74	5,33	1	2,324.00
405887	78,74	5,33	3	5,169.00
405888	81,92	5,33	1	2,509.00
405889	81,92	5,33	3	5,544.00
405890	85,09	5,33	1	2,573.00
405891	85,09	5,33	3	5,692.00
405892	88,27	5,33	1	2,719.00
405893	88,27	5,33	3	6,006.00
405894	91,44	5,33	1	2,786.00
405895	91,44	5,33	3	6,160.00
405896	94,62	5,33	1	2,876.00
405897	94,62	5,33	3	6,359.00
405898	97,79	5,33	1	2,962.00
405899	97,79	5,33	3	6,546.00
405900	100,97	5,33	1	3,072.00
405901	100,97	5,33	3	6,787.00
405902	104,14	5,33	1	3,175.00
405903	104,14	5,33	3	7,011.00
405904	107,32	5,33	1	3,248.00
405905	107,32	5,33	3	7,179.00
405906	110,49	5,33	1	3,368.00
405907	110,49	5,33	3	7,437.00
405908	113,67	5,33	1	3,441.00
405909	113,67	5,33	3	7,605.00
405910	116,84	5,33	1	3,634.00
405911	116,84	5,33	3	8,033.00
405912	120,02	5,33	1	3,858.00
405913	120,02	5,33	3	8,534.00
405914	123,19	5,33	1	3,945.00
405915	123,19	5,33	3	8,742.00
405916	126,37	5,33	1	4,024.00
405917	126,37	5,33	3	8,910.00
405918	129,54	5,33	1	3,951.00
405919	129,54	5,33	3	8,644.00
405920	132,72	5,33	1	4,029.00
405921	132,72	5,33	3	8,823.00
405922	135,89	5,33	1	4,122.00
405923	135,89	5,33	3	9,019.00
405924	139,07	5,33	1	4,186.00
405925	139,07	5,33	3	9,164.00
405926	142,24	5,33	1	4,228.00
405927	142,24	5,33	3	9,251.00
405928	145,42	5,33	1	4,301.00
405929	145,42	5,33	3	9,414.00
405930	148,59	5,33	1	4,309.00
405931	148,59	5,33	3	9,344.00
405932	151,77	5,33	1	4,382.00
405933	151,77	5,33	3	9,498.00
405934	158,12	5,33	1	4,519.00
405935	158,12	5,33	2	6,527.00
405936	164,47	5,33	1	4,631.00
405937	164,47	5,33	2	6,692.00
405938	170,82	5,33	1	4,872.00
405939	170,82	5,33	2	7,036.00
405940	177,17	5,33	1	5,076.00
405941	177,17	5,33	2	7,325.00
405942	183,52	5,33	1	5,183.00
405943	183,52	5,33	2	7,473.00
405944	189,87	5,33	1	5,382.00
405945	189,87	5,33	2	7,773.00
405946	196,22	5,33	1	5,404.00
405947	196,22	5,33	2	7,806.00
405948	202,57	5,33	1	5,440.00
405949	202,57	5,33	2	7,860.00
405950	208,92	5,33	1	5,491.00
405951	208,92	5,33	2	7,932.00
405952	215,27	5,33	1	5,533.00
405953	215,27	5,33	2	7,991.00
405954	221,62	5,33	1	5,734.00
405955	221,62	5,33	2	8,291.00
405956	227,97	5,33	1	5,827.00
405957	227,97	5,33	2	8,411.00
405958	234,32	5,33	1	5,995.00
405959	234,32	5,33	2	8,655.00
405960	240,67	5,33	1	6,121.00
405961	240,67	5,33	2	8,837.00
405962	247,02	5,33	1	6,199.00
405963	247,02	5,33	2	8,957.00
405964	253,37	5,33	1	6,289.00
405965	253,37	5,33	2	9,086.00
405966	266,07	5,33	1	6,367.00
405967	266,07	5,33	2	9,741.00
405968	278,77	5,33	1	6,574.00
405969	278,77	5,33	2	10,049.00
405970	291,47	5,33	1	6,770.00
405971	291,47	5,33	2	10,346.00
405972	304,17	5,33	1	6,866.00
405973	304,17	5,33	2	10,822.00
405974	329,57	5,33	1	7,190.00
405975	329,57	5,33	2	11,676.00
405976	354,97	5,33	1	7,232.00
405977	354,97	5,33	2	11,684.00
405978	380,37	5,33	1	7,647.00
405979	380,37	5,33	2	12,250.00
405980	405,26	5,33	1	8,126.00
405981	405,26	5,33	2	13,006.00
405982	430,66	5,33	1	8,627.00
405983	430,66	5,33	2	13,801.00
405984	456,06	5,33	1	9,122.00
405985	456,06	5,33	2	14,602.00
405986	481,41	5,33	1	9,677.00
405987	481,41	5,33	2	15,481.00
405988	506,81	5,33	1	10,021.00
405989	506,81	5,33	2	16,036.00
405990	532,21	5,33	1	10,447.00
405991	532,21	5,33	2	16,705.00
405992	557,61	5,33	1	11,001.00
405993	557,61	5,33	2	17,604.00
405994	582,68	5,33	1	11,038.00
405995	582,68	5,33	2	18,262.00
405996	608,08	5,33	1	10,987.00
405997	608,08	5,33	2	18,172.00
405998	633,48	5,33	1	11,505.00
405999	633,48	5,33	2	19,718.00
406000	658,88	5,33	1	11,970.00
406001	658,88	5,33	2	20,513.00
406002	113,67	6,99	1	4,122.00
406003	113,67	6,99	3	9,036.00
406004	116,84	6,99	1	4,248.00
406005	116,84	6,99	3	9,206.00
406006	120,02	6,99	1	4,410.00
406007	120,02	6,99	3	9,542.00
406008	123,19	6,99	1	4,494.00
406009	123,19	6,99	2	6,490.00
406010	126,37	6,99	1	4,550.00
406011	126,37	6,99	2	6,574.00
406012	129,54	6,99	1	4,623.00
406013	129,54	6,99	2	6,681.00
406014	132,72	6,99	1	4,648.00
406015	132,72	6,99	2	6,712.00
406016	135,89	6,99	1	4,780.00
406017	135,89	6,99	2	6,913.00
406018	139,07	6,99	1	4,780.00
406019	139,07	6,99	2	6,913.00
406020	142,24	6,99	1	4,892.00
406021	142,24	6,99	2	7,064.00
406022	145,42	6,99	1	4,950.00
406023	145,42	6,99	2	7,148.00
406024	148,59	6,99	1	5,102.00
406025	148,59	6,99	2	7,367.00
406026	151,77	6,99	1	5,160.00
406027	151,77	6,99	2	7,451.00
406028	158,12	6,99	1	5,326.00
406029	158,12	6,99	2	7,703.00
406030	164,47	6,99	1	5,485.00
406031	164,47	6,99	2	7,927.00
406032	170,82	6,99	1	5,592.00
406033	170,82	6,99	2	8,075.00
406034	177,17	6,99	1	5,841.00
406035	177,17	6,99	2	8,442.00
406036	183,52	6,99	1	5,964.00
406037	183,52	6,99	2	8,618.00
406038	189,87	6,99	1	6,126.00
406039	189,87	6,99	2	8,865.00
406040	196,22	6,99	1	6,485.00
406041	196,22	6,99	2	9,374.00
406042	202,57	6,99	1	6,485.00
406043	202,57	6,99	2	9,374.00
406044	215,27	6,99	1	6,401.00
406045	215,27	6,99	2	9,792.00
406046	227,97	6,99	1	6,720.00
406047	227,97	6,99	2	10,262.00
406048	240,67	6,99	1	6,913.00
406049	240,67	6,99	2	10,892.00
406050	253,37	6,99	1	6,961.00
406051	253,37	6,99	2	11,312.00
406052	266,07	6,99	1	7,302.00
406053	266,07	6,99	2	11,855.00
406054	278,77	6,99	1	7,400.00
406055	278,77	6,99	2	11,936.00
406056	291,47	6,99	1	7,515.00
406057	291,47	6,99	2	12,026.00
406058	304,17	6,99	1	7,722.00
406059	304,17	6,99	2	12,351.00
406060	316,87	6,99	1	8,148.00
406061	316,87	6,99	2	13,028.00
406062	329,57	6,99	1	8,352.00
406063	329,57	6,99	2	13,390.00
406064	342,27	6,99	1	8,700.00
406065	342,27	6,99	2	13,922.00
406066	354,97	6,99	1	9,125.00
406067	354,97	6,99	2	14,602.00
406068	367,67	6,99	1	9,332.00
406069	367,67	6,99	2	14,935.00
406070	380,37	6,99	1	9,618.00
406071	380,37	6,99	2	15,383.00
406072	393,07	6,99	1	9,965.00
406073	393,07	6,99	2	15,952.00
406074	405,26	6,99	1	10,315.00
406075	405,26	6,99	2	16,500.00
406076	417,96	6,99	1	10,528.00
406077	417,96	6,99	2	16,845.00
406078	430,66	6,99	1	10,948.00
406079	430,66	6,99	2	17,548.00
406080	443,36	6,99	1	11,158.00
406081	443,36	6,99	2	17,847.00
406082	456,06	6,99	1	11,323.00
406083	456,06	6,99	2	18,743.00
406084	468,76	6,99	1	11,323.00
406085	468,76	6,99	2	18,743.00
406086	481,46	6,99	1	11,460.00
406087	481,46	6,99	2	19,306.00
406088	494,16	6,99	1	11,530.00
406089	494,16	6,99	2	19,768.00
406090	506,86	6,99	1	11,782.00
406091	506,86	6,99	2	20,208.00
406092	532,26	6,99	1	11,505.00
406093	532,26	6,99	2	21,221.00
406094	557,66	6,99	1	11,922.00
406095	557,66	6,99	2	21,924.00
406096	582,68	6,99	1	12,538.00
406097	582,68	6,99	2	23,142.00
406098	608,08	6,99	1	13,014.00
406099	608,08	6,99	2	24,024.00
406100	633,48	6,99	1	13,510.00
406101	633,48	6,99	2	24,934.00
406102	658,88	6,99	1	14,120.00
406103	658,88	6,99	2	26,057.00
