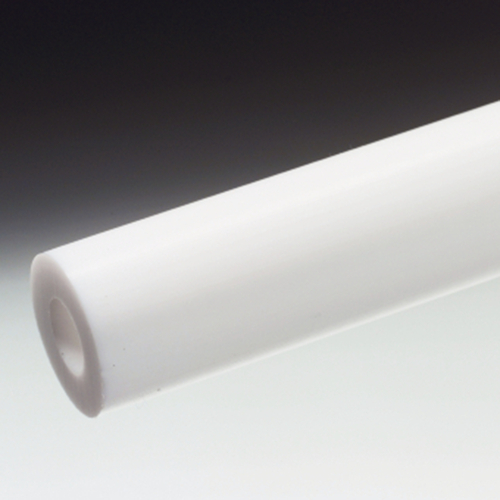

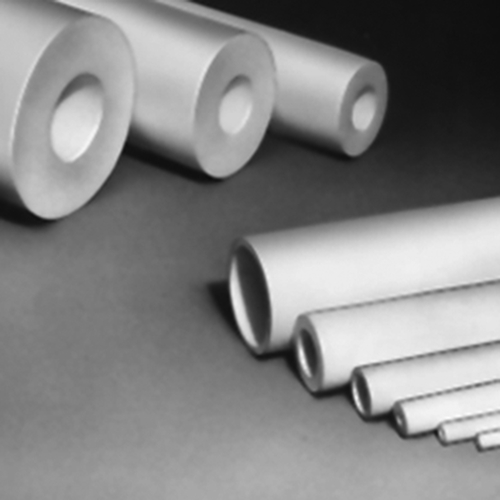

Pipe made of PTFE (virgin) - extruded

Product specification Heavy-duty plastic Very good chemical resistance to any organic and... more

Product specification

Heavy-duty plastic

Very good chemical resistance to any organic and inorganic media

No water absorption

Very good temperature resistance

Outstanding coefficient of sliding friction

Excellent resistance to weather

Antiadhesive surface

Very low friction values

Very good dielectric properties independent of frequency and temperature

Very good electrical insulating capacity also at air humidity

Non-combustible

High tracking resistance

Highest gas-tightness

Resistant to stress cracks

High-quality technical plastic for chemical apparatus construction, process engineering, machine construction, and electrical engineering

Use in machine building and precision mechanical engineering: packings, piston rings, slide bearings, thread sealing tapes

Use in chemical industry: packings, pumps, valves, filter bodies, heat exchanger, laboratory devices

Use in electrical engineering: insulators in heavy current engineering and HF technology, line switches, tube sockets

Technical specification

Material: PTFE (polytetrafluoroethylene)

Colour: white

Shore hardness D: 55° - 59° (DIN 53505)

Special features: non-combustible, very good resistance to weather

Temperature range: -200 to +260 °C, for a short time +280 °C

Melting point: +320 °C

Density: 2.15 - 2.18 g/cm3 (DIN 53479)

Tensile strength: 20 - 40 N/mm2 (DIN 53455)

Elongation at break: 250 - 500 % (ASTM D638)

Notch impact strength: 16 kJ/m2

Pressure resistance: 3.9 - 4.4 N/mm2 (1 % deformation at +23 °C)

Thermal conductivity: 0.26 W/m * K (ASTM C 117)

Dielectric constant: 2.1 at 50 Hz (DIN 53483)

No additional information available.
Item Image Inside Ø
mm
Toleranz Innen-Ø
mm
Außen-Ø
mm
Toleranz Außen-Ø
mm
Länge
mm
Einheit
Stück
Price
Euro*
Buy
300209
6 +0 / -0,5 10 +0,5 / -0 250 1 15.00
300210
6 +0 / -0,5 12 +0,5 / -0 250 1 21.00
300211
8 +0 / -0,5 15 +0,5 / -0 250 1 26.00
300212
10 +0 / -0,5 15 +0,5 / -0 250 1 22.00
300213
10 +0 / -0,5 16 +0,5 / -0 250 1 26.00
300214
10 +0 / -0,5 18 +0,5 / -0 250 1 35.00
300215
10 +0 / -0,5 20 +0,5 / -0 250 1 42.00
300216
15 +0 / -0,5 20 +0,5 / -0 250 1 27.00
300217
10 +0 / -1,0 22 +1,0 / -0 250 1 48.00
300218
15 +0 / -1,0 22 +1,0 / -0 250 1 35.00
300219
10 +0 / -1,0 25 +1,0 / -0 250 1 64.00
300220
15 +0 / -1,0 25 +1,0 / -0 250 1 57.00
300221
10 +0 / -1,0 27 +1,0 / -0 250 1 81.00
300222
15 +0 / -1,0 27 +1,0 / -0 250 1 69.00
300223
10 +0 / -1,0 30 +1,0 / -0 250 1 90.00
300224
15 +0 / -1,0 30 +1,0 / -0 250 1 87.00
300225
20 +0 / -1,0 30 +1,0 / -0 250 1 80.00
300226
20 +0 / -1,5 33 +1,5 / -0 250 1 91.00
300227
10 +0 / -1,5 35 +1,5 / -0 250 1 119.00
300228
20 +0 / -1,5 35 +1,5 / -0 250 1 107.00
300229
25 +0 / -1,5 35 +1,5 / -0 250 1 95.00
300230
20 +0 / -1,5 40 +1,5 / -0 250 1 130.00
300231
25 +0 / -1,5 40 +1,5 / -0 250 1 117.00
300232
30 +0 / -1,5 40 +1,5 / -0 250 1 103.00
300233
20 +0 / -1,5 45 +1,5 / -0 250 1 179.00
300234
25 +0 / -1,5 45 +1,5 / -0 250 1 156.00
300235
30 +0 / -1,5 45 +1,5 / -0 250 1 129.00
300236
25 +0 / -1,5 50 +1,5 / -0 250 1 203.00
300237
30 +0 / -1,5 50 +1,5 / -0 250 1 179.00
300238
40 +0 / -1,5 50 +1,5 / -0 250 1 114.00
300239
20 +0 / -2,0 55 +2,0 / -0 250 1 226.00
300240
30 +0 / -2,0 55 +2,0 / -0 250 1 186.00
300241
40 +0 / -2,0 55 +2,0 / -0 250 1 135.00
300242
20 +0 / -2,0 60 +2,0 / -0 250 1 247.00
300243
30 +0 / -2,0 60 +2,0 / -0 250 1 212.00
300244
40 +0 / -2,0 60 +2,0 / -0 250 1 164.00
300245
20 +0 / -2,0 65 +2,0 / -0 250 1 301.00
300246
30 +0 / -2,0 65 +2,0 / -0 250 1 262.00
300247
40 +0 / -2,0 65 +2,0 / -0 250 1 219.00
300248
50 +0 / -2,0 65 +2,0 / -0 250 1 167.00
300249
6 +0 / -0,5 10 +0,5 / -0 500 1 26.00
300250
6 +0 / -0,5 12 +0,5 / -0 500 1 38.00
300251
8 +0 / -0,5 15 +0,5 / -0 500 1 49.00
300252
10 +0 / -0,5 15 +0,5 / -0 500 1 42.00
300253
10 +0 / -0,5 16 +0,5 / -0 500 1 49.00
300254
10 +0 / -0,5 18 +0,5 / -0 500 1 67.00
300255
10 +0 / -0,5 20 +0,5 / -0 500 1 81.00
300256
15 +0 / -0,5 20 +0,5 / -0 500 1 54.00
300257
10 +0 / -1,0 22 +1,0 / -0 500 1 93.00
300258
15 +0 / -1,0 22 +1,0 / -0 500 1 67.00
300259
10 +0 / -1,0 25 +1,0 / -0 500 1 120.00
300260
15 +0 / -1,0 25 +1,0 / -0 500 1 109.00
300261
10 +0 / -1,0 27 +1,0 / -0 500 1 154.00
300262
15 +0 / -1,0 27 +1,0 / -0 500 1 131.00
300263
10 +0 / -1,0 30 +1,0 / -0 500 1 174.00
300264
15 +0 / -1,0 30 +1,0 / -0 500 1 165.00
300265
20 +0 / -1,0 30 +1,0 / -0 500 1 152.00
300267
10 +0 / -1,5 35 +1,5 / -0 500 1 225.00
300268
20 +0 / -1,5 35 +1,5 / -0 500 1 203.00
300269
25 +0 / -1,5 35 +1,5 / -0 500 1 179.00
300270
20 +0 / -1,5 40 +1,5 / -0 500 1 247.00
300271
25 +0 / -1,5 40 +1,5 / -0 500 1 221.00
300272
30 +0 / -1,5 40 +1,5 / -0 500 1 193.00
300273
20 +0 / -1,5 45 +1,5 / -0 500 1 339.00
300274
25 +0 / -1,5 45 +1,5 / -0 500 1 294.00
300275
30 +0 / -1,5 45 +1,5 / -0 500 1 244.00
300276
25 +0 / -1,5 50 +1,5 / -0 500 1 400.00
300277
30 +0 / -1,5 50 +1,5 / -0 500 1 339.00
300278
40 +0 / -1,5 50 +1,5 / -0 500 1 216.00
300279
20 +0 / -2,0 55 +2,0 / -0 500 1 428.00
300280
30 +0 / -2,0 55 +2,0 / -0 500 1 353.00
300281
40 +0 / -2,0 55 +2,0 / -0 500 1 256.00
300282
20 +0 / -2,0 60 +2,0 / -0 500 1 465.00
300283
30 +0 / -2,0 60 +2,0 / -0 500 1 402.00
300284
40 +0 / -2,0 60 +2,0 / -0 500 1 311.00
300285
20 +0 / -2,0 65 +2,0 / -0 500 1 569.00
300286
30 +0 / -2,0 65 +2,0 / -0 500 1 496.00
300287
40 +0 / -2,0 65 +2,0 / -0 500 1 415.00
300288
50 +0 / -2,0 65 +2,0 / -0 500 1 316.00
300289
6 +0 / -0,5 10 +0,5 / -0 1.000 1 45.00
300290
6 +0 / -0,5 12 +0,5 / -0 1.000 1 72.00
300291
8 +0 / -0,5 15 +0,5 / -0 1.000 1 93.00
300292
10 +0 / -0,5 15 +0,5 / -0 1.000 1 78.00
300293
10 +0 / -0,5 16 +0,5 / -0 1.000 1 93.00
300294
10 +0 / -0,5 18 +0,5 / -0 1.000 1 126.00
300295
10 +0 / -0,5 20 +0,5 / -0 1.000 1 154.00
300296
15 +0 / -0,5 20 +0,5 / -0 1.000 1 97.00
300297
10 +0 / -1,0 22 +1,0 / -0 1.000 1 174.00
300298
15 +0 / -1,0 22 +1,0 / -0 1.000 1 126.00
300299
10 +0 / -1,0 25 +1,0 / -0 1.000 1 247.00
300300
15 +0 / -1,0 25 +1,0 / -0 1.000 1 207.00
300301
10 +0 / -1,0 27 +1,0 / -0 1.000 1 287.00
300302
15 +0 / -1,0 27 +1,0 / -0 1.000 1 251.00
300303
10 +0 / -1,0 30 +1,0 / -0 1.000 1 324.00
300304
15 +0 / -1,0 30 +1,0 / -0 1.000 1 312.00
300305
20 +0 / -1,0 30 +1,0 / -0 1.000 1 284.00
300307
10 +0 / -1,5 35 +1,5 / -0 1.000 1 391.00
300308
20 +0 / -1,5 35 +1,5 / -0 1.000 1 364.00
300309
25 +0 / -1,5 35 +1,5 / -0 1.000 1 331.00
300310
20 +0 / -1,5 40 +1,5 / -0 1.000 1 426.00
300311
25 +0 / -1,5 40 +1,5 / -0 1.000 1 371.00
300312
30 +0 / -1,5 40 +1,5 / -0 1.000 1 348.00
300313
20 +0 / -1,5 45 +1,5 / -0 1.000 1 576.00
300314
25 +0 / -1,5 45 +1,5 / -0 1.000 1 510.00
300315
30 +0 / -1,5 45 +1,5 / -0 1.000 1 427.00
300316
25 +0 / -1,5 50 +1,5 / -0 1.000 1 664.00
300317
30 +0 / -1,5 50 +1,5 / -0 1.000 1 582.00
300318
40 +0 / -1,5 50 +1,5 / -0 1.000 1 370.00
300319
20 +0 / -2,0 55 +2,0 / -0 1.000 1 722.00
300320
30 +0 / -2,0 55 +2,0 / -0 1.000 1 602.00
300321
40 +0 / -2,0 55 +2,0 / -0 1.000 1 438.00
300322
20 +0 / -2,0 60 +2,0 / -0 1.000 1 762.00
300323
30 +0 / -2,0 60 +2,0 / -0 1.000 1 656.00
300324
40 +0 / -2,0 60 +2,0 / -0 1.000 1 418.00
300325
20 +0 / -2,0 65 +2,0 / -0 1.000 1 886.00
300326
30 +0 / -2,0 65 +2,0 / -0 1.000 1 799.00
300327
40 +0 / -2,0 65 +2,0 / -0 1.000 1 669.00
300328
50 +0 / -2,0 65 +2,0 / -0 1.000 1 500.00
