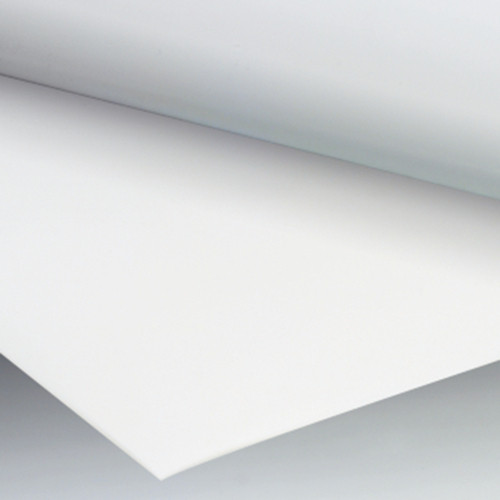

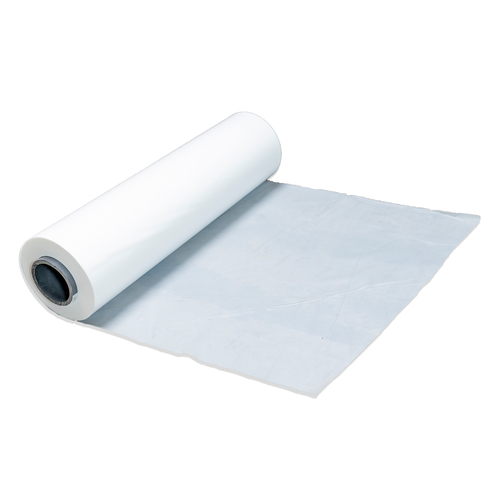

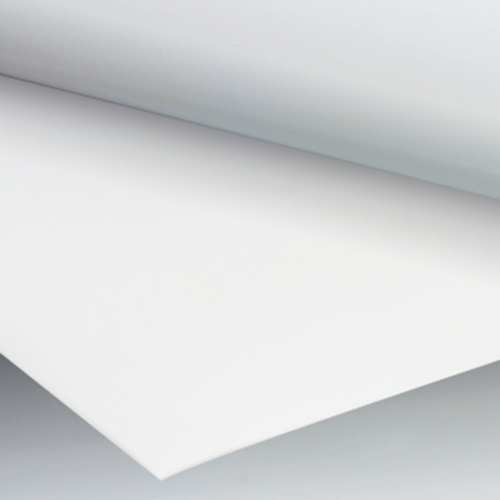

PTFE Film (virgin)
Product specification
Excellent resistance to weather and UV radiation
Sliced from pressure / high-temperature sintered PTFE powder
Good mechanical properties from low to high temperature range
Lowest surface friction value of all solids
Outstanding sliding properties
Highest chemical resistance
Antiadhesive and not wettable
Low permeability
Silencing and vibration-damping
Good dielectric strength
Technical specification
Material: virgin PTFE (polytetrafluoroethylene)
Colour: opal white
Temperature range: -260 to +260 °C
Shore hardness D: 54° (DIN 53505)
Tensile strength: >25 N/mm2 (DIN 53455)
Elongation at break: >280 % (DIN 53455)
Ball indentation hardness: >23 N/mm2 (DIN 53456)
Dielectric strength: 50 kV/mm (DIN 53481)
Coefficient of friction: 0.12 - 0.05
Coefficient of linear thermal expansion:
at 25 - 100 °C: 1,25 x 10-4
at 25 - 150 °C: 1,36 x 10-4
at 25 - 200 °C: 1,90 x 10-4
Item | Image |
Thickness mm
|
Breite mm
|
Einheit m
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|
18097 |
|
0,1 | 600 | 1 | 58.00 | |
18098 |
|
0,1 | 600 | 3 | 146.00 | |
18099 |
|
0,1 | 600 | 5 | 206.00 | |
18100 |
|
0,1 | 600 | 10 | 332.00 | |
18102 |
|
0,1 | 600 | 20 | 510.00 | |
18108 |
|
0,25 | 600 | 1 | 102.00 | |
18109 |
|
0,25 | 600 | 3 | 250.00 | |
18110 |
|
0,25 | 600 | 5 | 321.00 | |
18111 |
|
0,25 | 600 | 10 | 513.00 | |
18113 |
|
0,25 | 600 | 20 | 764.00 | |
18119 |
|
0,5 | 600 | 1 | 195.00 | |
18120 |
|
0,5 | 600 | 3 | 461.00 | |
18121 |
|
0,5 | 600 | 5 | 578.00 | |
18122 |
|
0,5 | 600 | 10 | 893.00 | |
18124 |
|
0,5 | 600 | 20 | 1,383.00 | |
18130 |
|
1 | 600 | 1 | 332.00 | |
18131 |
|
1 | 600 | 3 | 840.00 | |
18132 |
|
1 | 600 | 5 | 1,019.00 | |
18133 |
|
1 | 600 | 10 | 1,527.00 | |
18135 |
|
1 | 600 | 20 | 2,037.00 | |
18141 |
|
2 | 600 | 1 | 510.00 | |
18142 |
|
2 | 600 | 3 | 1,224.00 | |
18143 |
|
2 | 600 | 5 | 1,527.00 | |
18144 |
|
2 | 600 | 10 | 2,443.00 | |
18146 |
|
2 | 600 | 20 | 3,908.00 | |
18152 |
|
0,1 | 1.200 | 1 | 102.00 | |
18153 |
|
0,1 | 1.200 | 3 | 223.00 | |
18154 |
|
0,1 | 1.200 | 5 | 327.00 | |
18155 |
|
0,1 | 1.200 | 10 | 559.00 | |
18157 |
|
0,1 | 1.200 | 20 | 838.00 | |
18163 |
|
0,25 | 1.200 | 1 | 162.00 | |
18164 |
|
0,25 | 1.200 | 3 | 381.00 | |
18165 |
|
0,25 | 1.200 | 5 | 461.00 | |
18166 |
|
0,25 | 1.200 | 10 | 691.00 | |
18168 |
|
0,25 | 1.200 | 20 | 920.00 | |
18174 |
|
0,5 | 1.200 | 1 | 324.00 | |
18175 |
|
0,5 | 1.200 | 3 | 764.00 | |
18176 |
|
0,5 | 1.200 | 5 | 926.00 | |
18177 |
|
0,5 | 1.200 | 10 | 1,388.00 | |
18179 |
|
0,5 | 1.200 | 20 | 1,851.00 | |
18185 |
|
1 | 1.200 | 1 | 464.00 | |
18186 |
|
1 | 1.200 | 3 | 1,111.00 | |
18187 |
|
1 | 1.200 | 5 | 1,388.00 | |
18188 |
|
1 | 1.200 | 10 | 1,851.00 | |
18190 |
|
1 | 1.200 | 20 | 2,775.00 | |
18196 |
|
2 | 1.200 | 1 | 835.00 | |
18197 |
|
2 | 1.200 | 3 | 1,998.00 | |
18198 |
|
2 | 1.200 | 5 | 2,664.00 | |
18199 |
|
2 | 1.200 | 10 | 4,280.00 |
