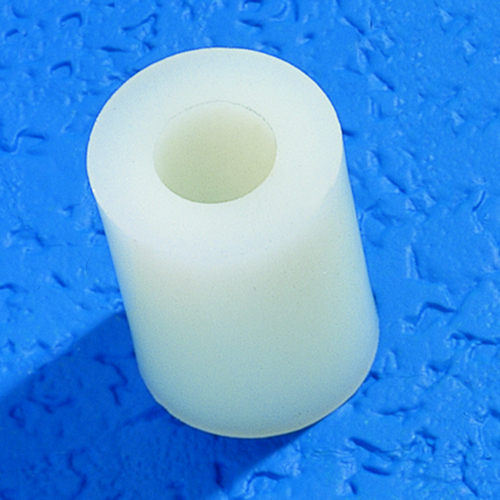

Spacer made of PA (I-Ø: 13 mm)

Technical specification Material: PA 6 (polyamide 6) Colour: natural more

Close menu

Technical specification

Material: PA 6 (polyamide 6)

Colour: natural

General Information Very good alternative to metal parts Very large application area due to... more

Close menu

General Information

Very good alternative to metal parts

Very large application area due to universal application possibilities

Shock-absorbing and vibration-damping

Light, resistant to vibration, easy maintenance

Preferably used in electronics due to their dielectrical properties

Available in the most common sizes

Chemical features:

Resistant to aromatic and aliphatic hydrocarbons, fuels, mineral oils and mineral lubricants; suitable for alkohols, esters, ketones, ethers and amines; good resistance to weak alkalis, but only moderate resistance to strong alkalis; limited resistance to weak mineral and organic acids; not resistant to oxidizing acids, strong mineral and organic acids as well as phenols; limited resistance to hydrolysis

Material specification:

Polyamide is an elastic, tough, loadable, but notch-sensitive material

Impact resistant

Resistant to abrasion and cold

High fatigue strength and excellent resilience

High wear resistance and good mechanical damping capacity

Insulating properties and an amazingly high tensile strength

Connecting parts made of polyamide and similar plastics protect from rust and corrosion damage

Polyamide can also be used in the food processing industry and in medical fields

PA 6 features a higher impact resistance compared to PA 6.6

PA 6 has the highest water absorption of all common plastics up to 9 to 10 % (followed by PA 6.6 with 8 to 9 %), thus considerably increased toughness, flexibility and elongation. However, the strength of the material can therefore be reduced by up to 10 %.

Material: PA 6 (polyamide 6)

Colour: natural

Density: approx. 1.14 g/cm³

Temperature range: -40 to +85 °C, for a short time +180 °C

Melting temperature: +220 °C (ISO 11357)

Yield stress: 75 MPa (ISO 527)

Elongation at break: >50 % (ISO 527)

Elastic modulus: 3,200 MPa (ISO 527)

Impact resistance: without break (DIN 53453)

Notch impact strength (Charpy): >3 kJ/m² (ISO 179)

Ball pressure hardness: 160 N/mm² (ISO 2039-1)

Shore hardness D: 82° (DIN 53505)

Dielectric strength: 20 kV/mm (IEC 60243)

Dielectric constant: 3.9 at 50 Hz (IEC 60250)

Surface resistance: 10¹³ Ohm (IEC 60093)

Volume resistivity: 10¹⁵ Ohm x cm (IEC 60093)

Comparative tracking index (CTI): >600 (DIN 53480)

Dielectric loss factor (at 50 Hz): 0.02 (specimen dry)

Water absorption: up to 10 % (during storage in water) (DIN 53472)

Flammability rating: UL 94 HB

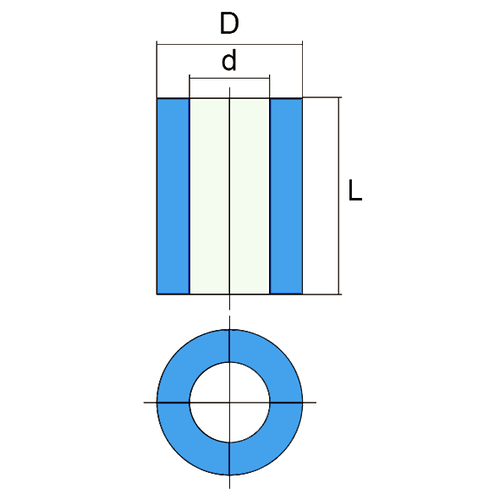

Item	d mm	D mm	L mm	Unit piece	Price Euro*
308609	13	24	1	50	42.00
308610	13	24	1	100	68.00
308611	13	24	2	50	49.00
308612	13	24	2	100	83.00
308613	13	24	3	50	49.00
308614	13	24	3	100	83.00
308615	13	24	4	50	55.00
308616	13	24	4	100	95.00
308617	13	24	5	50	55.00
308618	13	24	5	100	95.00
308619	13	24	6	50	61.00
308620	13	24	6	100	104.00
308621	13	24	7	50	61.00
308622	13	24	7	100	104.00
308623	13	24	8	25	37.00
308624	13	24	8	50	64.00
308625	13	24	9	25	37.00
308626	13	24	9	50	64.00
308627	13	24	10	25	43.00
308628	13	24	10	50	73.00
308629	13	24	11	25	43.00
308630	13	24	11	50	73.00
308631	13	24	12	25	49.00
308632	13	24	12	50	83.00
308633	13	24	13	25	49.00
308634	13	24	13	50	83.00
308635	13	24	14	25	50.00
308636	13	24	14	50	85.00
308637	13	24	15	25	50.00
308638	13	24	15	50	85.00
308699	13	24	16	25	53.00
308700	13	24	16	50	89.00
308701	13	24	17	25	53.00
308702	13	24	17	50	89.00
308703	13	24	18	25	55.00
308704	13	24	18	50	93.00
308705	13	24	19	25	55.00
308706	13	24	19	50	93.00
308707	13	24	20	25	58.00
308708	13	24	20	50	98.00
308709	13	24	21	25	58.00
308710	13	24	21	50	98.00
308711	13	24	22	25	58.00
308712	13	24	22	50	98.00
308713	13	24	23	25	58.00
308714	13	24	23	50	98.00
308715	13	24	24	20	52.00
308716	13	24	24	40	87.00
308717	13	24	25	20	52.00
308718	13	24	25	40	87.00
308719	13	24	26	10	30.00
308720	13	24	26	20	51.00
308721	13	24	27	10	30.00
308722	13	24	27	20	51.00
308723	13	24	28	10	30.00
308724	13	24	28	20	51.00
308725	13	24	29	10	30.00
308726	13	24	29	20	51.00
308727	13	24	30	10	30.00
308728	13	24	30	20	51.00
308639	13	35	1	25	39.00
308640	13	35	1	50	69.00
308641	13	35	2	50	51.00
308642	13	35	2	100	83.00
308643	13	35	3	50	51.00
308644	13	35	3	100	83.00
308645	13	35	4	50	60.00
308646	13	35	4	100	103.00
308647	13	35	5	25	45.00
308648	13	35	5	50	78.00
308649	13	35	6	25	45.00
308650	13	35	6	50	78.00
308651	13	35	7	25	50.00
308652	13	35	7	50	83.00
308653	13	35	8	25	50.00
308654	13	35	8	50	83.00
308655	13	35	9	25	55.00
308656	13	35	9	50	94.00
308657	13	35	10	25	55.00
308658	13	35	10	50	94.00
308659	13	35	11	25	60.00
308660	13	35	11	50	100.00
308661	13	35	12	25	60.00
308662	13	35	12	50	100.00
308663	13	35	13	20	56.00
308664	13	35	13	40	97.00
308665	13	35	14	20	56.00
308666	13	35	14	40	97.00
308667	13	35	15	20	56.00
308668	13	35	15	40	97.00
308729	13	35	16	20	56.00
308730	13	35	16	40	97.00
308731	13	35	17	20	59.00
308732	13	35	17	40	100.00
308733	13	35	18	20	59.00
308734	13	35	18	40	100.00
308735	13	35	19	20	63.00
308736	13	35	19	40	105.00
308737	13	35	20	20	63.00
308738	13	35	20	40	105.00
308739	13	35	21	20	69.00
308740	13	35	21	40	114.00
308741	13	35	22	10	38.00
308742	13	35	22	20	64.00
308743	13	35	23	10	38.00
308744	13	35	23	20	64.00
308745	13	35	24	10	38.00
308746	13	35	24	20	64.00
308747	13	35	25	10	42.00
308748	13	35	25	20	71.00
308749	13	35	26	10	42.00
308750	13	35	26	20	71.00
308751	13	35	27	10	42.00
308752	13	35	27	20	71.00
308753	13	35	28	10	45.00
308754	13	35	28	20	75.00
308755	13	35	29	10	45.00
308756	13	35	29	20	75.00
308757	13	35	30	10	45.00
308758	13	35	30	20	75.00
