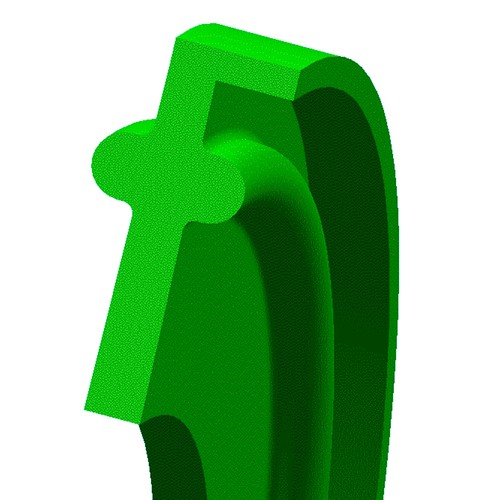

High-Performance EPDM Clamp Seals - Standard: DIN 32676

No additional information available.
General Information Well suited for use in: Hot water and water steam (constant +180 °C,... more

General Information

Well suited for use in:

Hot water and water steam (constant +180 °C, short-term +210 °C)

Glycoles and brake fluids (on glycol base)

Acids (hydrochloric and nitric acid)

Bases (sodium hydroxide, potassium hydroxide)

Ozone (+40 °C, 200 pphm) and oxygen

CIP / SIP media for continuous plants in the food, beverage and pharmaceutical industries

CIP (Cleaning in Place) = diluted acids or bases combined with cleaning additives

SIP (Sterilization in Place) = disinfectants, steam, oxidizing media (e.g. peracetic acid) and / or polar organic solvents (e.g. acetic acid)

Well suited for use in animal fats at low temperatures

Should not be used in mineral fats, oils and waxes, fuels

Food quality

Very good resistance to weather and aging

Very good resistance to light

Good cold and thermal resistance

Good elastic behaviour

Good elongation at break and tearing strength

Very good abrasion resistance

Very good resistance to polar and oxidative media

Material: EPDM (ethylene-propylene-diene rubber)

Color: black

Crosslinking: peroxidic

Shore hardness A: 75° ±5° (test plate) (DIN 53505)

Temperature range: -40 to +150 °C in air; -40 to +180 °C in water

IRHD: 70 +5 / -8 (clamp seal) (DIN ISO 48 M)

Density: 1.10 ±0.02 g/cm3 (DIN EN ISO 1183)

Rebound elasticity: 46 % (DIN 53512)

Modulus at 100 % elongation: 9.8 N/mm2 (DIN 53504)

Tensile strength: 16.2 N/mm2 (DIN 53504)

Elongation at break: 165 % (DIN 53504)

Tear propagation resistance: 11.5 N/mm2 (DIN 53515)

Compression set:

10 % at +100 °C / 24 h / 25 %;

15 % at +150 °C / 24 h / 25 %;

24 % at +150 °C / 70 h / 25 % (DIN ISO 815)

Recommended lubricant for installation: silicone grease (e.g. Paraliq GTE 703 with NSF H1 approval)

Regulations:

FDA (CFR 21 Part 177.2600), EG 1935/2004, Free from animal derived ingredients (ADI free)

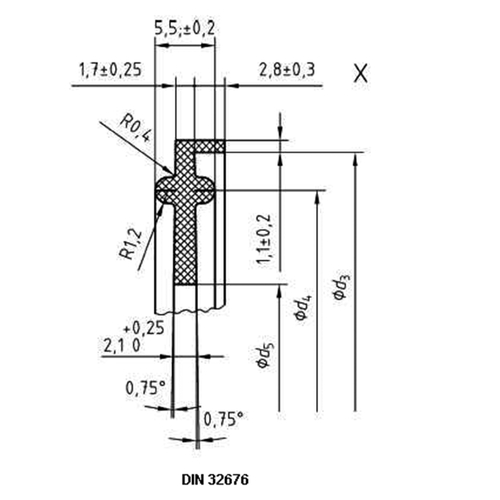

Item Image For flange size
mm
d
mm
D
mm
D1
mm
Einheit
Stück
Price
Euro*
Buy
410828
10 10,2 27,5 34 2 95.00
410829
10 10,2 27,5 34 6 238.00
410830
15 16,2 27,5 34 2 99.00
410831
15 16,2 27,5 34 6 244.00
410832
20 20,2 27,5 34 2 99.00
410833
20 20,2 27,5 34 6 244.00
410834
25 26,2 43,5 50,5 2 110.00
410835
25 26,2 43,5 50,5 6 257.00
410836
32 32,2 43,5 50,5 2 112.00
410837
32 32,2 43,5 50,5 6 283.00
410838
40 38,2 43,5 50,5 2 112.00
410839
40 38,2 43,5 50,5 6 283.00
410840
50 50,2 56,5 64 2 133.00
410841
50 50,2 56,5 64 6 334.00
410842
65 66,2 83,5 91 2 161.00
410843
65 66,2 83,5 91 6 399.00
410844
80 81,2 97 106 2 182.00
410845
80 81,2 97 106 6 450.00
410846
100 100,2 110 119 2 195.00
410847
100 100,2 110 119 6 476.00
410848
125 125,2 146 155 2 244.00
410849
125 125,2 146 155 6 591.00
410850
150 150,2 174 183 1 127.00
410851
150 150,2 174 183 3 302.00
410852
200 200,2 225 233,5 1 152.00
410853
200 200,2 225 233,5 3 366.00
