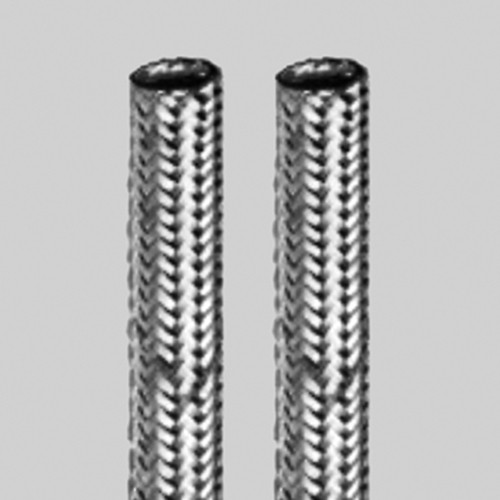

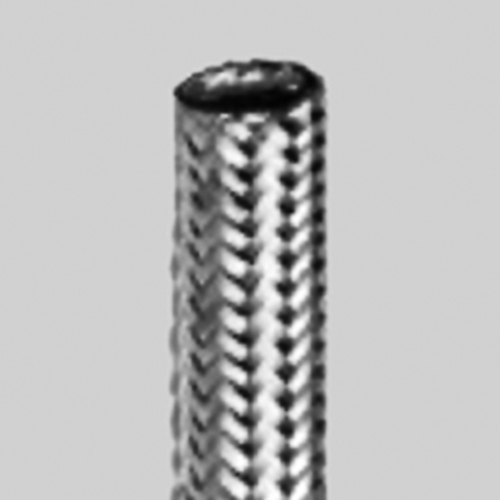

FPM Tubing with Steel Wire Braiding

Application area Chemical industry, pharmaceutical industry, mineral oil industry, process... more

Application area

Chemical industry, pharmaceutical industry, mineral oil industry, process engineering

Product specification

Pressure tubing with steel wire braiding

Extraordinary chemical resistance

Best temperature resistance

Very good resistance to ozone and oxygen

High resistance to aging and weather

Smooth surface

High mechanical stability

Tubing with DN 8, 10, 12, 15, 18 and 20 can be fitted with metal fittings, completely mounted.

Technical specification

Material:

Insert: FPM (fluorinated rubber)

Jacket: zinc-plated steel wire braiding

Colour: black

Shore hardness A: 75° ±5° (DIN 53505)

Temperature range: -25 to +180 °C

General Information FPM For use in analytical technology, medical engineering, chemical... more

General Information FPM

For use in analytical technology, medical engineering, chemical industry, biotechnology, laboratory technology and process engineering.

Extraordinary chemical resistance to hydrocarbons, mineral, vegetable, and animal oils, aromatic and chlorine containing solvents, many acids, alkalis, and oxidizing agents. Unstable to polar solvents and certain lyes.

Conveying tubing made of high-quality mixed polymers of fluorinated hydrocarbons

Very good chemical resistance

Very good heat resistance

Very good resistance to effects of ozone, oxygen, aging, and weather

Flame-resistant

Smooth surface

Low abrasion

Highest mechanical strength

Maximum dimensional stability

Material: FPM (fluorinated rubber)

Colour: black

Temperature range: -20 to +200 °C, for a short period +250 °C

Permeability: extremely low, nearly gas-tight

Dielectric constant: 15 at 50 Hz

Volume Resistivity: 2 x 1013 Ohm x cm

Abrasion: 190 mm3

Tolerances: DIN ISO 3302-1 E2

Item Image Inside Ø
mm
Außen-Ø
mm
max. Betr.-Druck1
bar
min. Biegeradius
mm
Einheit
m
Price
Euro*
Buy
330113
6 9,5 10 50 1 130.00
330114
6 9,5 10 50 5 554.00
330115
6 9,5 10 50 15 1,375.00
340355
8 12 10 55 1 140.00
340356
8 12 10 55 5 583.00
340357
8 12 10 55 15 1,423.00
330116
9 13,5 8 60 1 178.00
330117
9 13,5 8 60 5 759.00
330118
9 13,5 8 60 15 1,901.00
340358
10 14 8 65 1 185.00
340359
10 14 8 65 5 776.00
340360
10 14 8 65 15 1,936.00
340361
12 16 8 65 1 212.00
340362
12 16 8 65 5 807.00
340363
12 16 8 65 15 1,981.00
330119
13 17,5 8 70 1 239.00
330120
13 17,5 8 70 5 1,022.00
330121
13 17,5 8 70 15 2,558.00
340364
15 19 8 75 1 322.00
340365
15 19 8 75 5 1,178.00
340366
15 19 8 75 15 2,818.00
340367
18 22 7,5 80 1 516.00
340368
18 22 7,5 80 5 1,860.00
340369
18 22 7,5 80 15 4,362.00
340370
20 24 7 90 1 585.00
340371
20 24 7 90 5 2,130.00
340372
20 24 7 90 15 4,855.00
