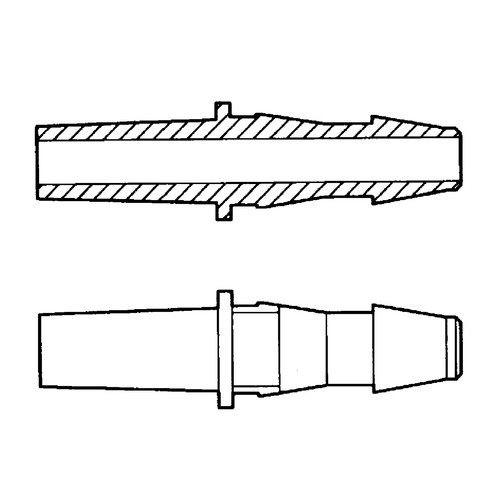

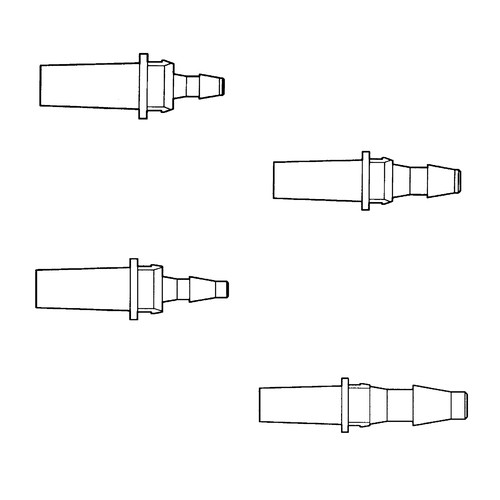

Luer Tubing Adapter (Male) with Non-Twistable Adapter Fit

Luer Tubing Adapter (Male) with Non-Twistable Adapter Fit
Product specification Precision adapters, male Luer to inched hose nozzles, integrated stop... more

Product specification

Precision adapters, male Luer to inched hose nozzles, integrated stop for optional fitting for Luer-lock locking (Cat. Nr. 15730 to 15738) with non-twistable adapter fit, either with short nozzle for elastic tubing or with long nozzle for less elastic tubing.

General Information PA 6.6 (polyamide 6.6, nylon) Colour: white Temperature range:... more

General Information

PA 6.6 (polyamide 6.6, nylon)

Colour: white

Temperature range: -40 to +115 °C

Max. operating pressure: 3 bar at +20 °C

Yellowing and reduction of strength depending on temperature and interaction time

Regulatory compliance to RoHS, BPA-free, DEHP-free, BSE/ADI-free

Good sterilization with autoclave, ethylene oxide and gamma radiation (may discolour to brownish hue)

PP (polypropylene)

Colour: natural

Temperature range: -5 to +120 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to USP Class VI, FDA 21 CFR 177.1520, RoHS, BPA, DEHP, ADI-free

Good sterilization with ethylene oxide and gamma radiation (bis 6 Mrads), autoclave limited to +121 °C for 20 min.

PC (polycarbonate)

Colour: transparent-clear

Temperature range: -30 to +110 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to USP Class VI, ISO 10993, FDA 21 CFR 177.1580, RoHS, DEHP

Good sterilization with ethylene oxide and gamma radiation (excellent up to 10 Mrads with minor loss of physical properties), autoclave not recommended

RSPC (Radiation Stable Polycarbonate)

Colour: transparent-violet

Temperature range: -30 to +110 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to ISO 10993, RoHS, DEHP

Good sterilization with ethylene oxide and gamma radiation (excellent up to 10 Mrads with minor loss of physical properties; light violet hue turns clear upon sterilization), autoclave not recommended

No FDA or USP clearance, not BSE / ADI-free!

Item Image Tubing inside Ø
inch
Schlauch Innen-Ø
mm
Werkstoff Einheit
Stück
Price
Euro*
Buy
15718
Luer Tubing Adapter (Male) with Non-Twistable Adapter Fit Luer Tubing Adapter (Male) with Non-Twistable Adapter Fit
1/8" 3,2 PA 6.6 20 56.00
15719
Luer Tubing Adapter (Male) with Non-Twistable Adapter Fit Luer Tubing Adapter (Male) with Non-Twistable Adapter Fit
1/8" 3,2 PP 20 67.00
