Silicone High-Temperature Chemical Pressure Tubing with Fabric Insert

Silicone High-Temperature Chemical Pressure Tubing with Fabric Insert

Product specification Special tubing made of silicone for extreme applications with a strong... more

Product specification

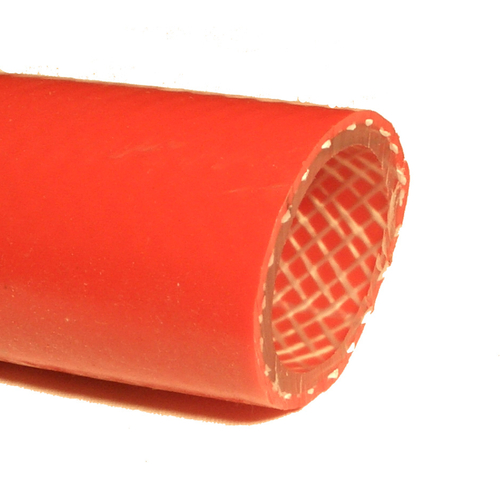

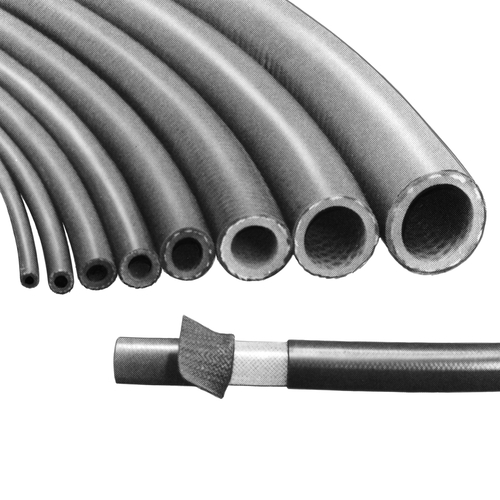

Special tubing made of silicone for extreme applications with a strong braiding of highly heat-resistant glass silk, which renders the tubing (silicone core tubing) highly stable at high pressures and protects it optimally against kinking. The diamond pattern formed by the braiding angle guarantees an excellent adhesion of the silicone core tubing to the silicone jacket. Additionally, the silicone jacket protects the braiding from damage and soiling.

Silicone high temperature chemical tubing is extruded of an especially high-grade silicone elastomer and vulcanized. The cured goods do not contain any extractable constituents and they are completely tasteless and odourless.

Technical specification

Silicone core tubing:

Shore hardness A: 60° ±5°

Colour: transparent (inside), red (outside)

Temperature range: Class H and above up to +180 °C

Specific weight: 1.75 g/cm³

Elongation at break: up to 300 % without fissures

Embrittlement temperature: -60 °C

Dielectric strength: 10 kV/1.0 mm wall thickness; (50 Hz/+20 to +180 °C) after water bath

Volume Resistivity: 4.2 x 10¹⁵ Ohm/cm³/+20 °C; 2.6 x 10¹³ Ohm/cm³/+130 °C; 5.2 x 10¹² Ohm/cm³/+180 °C

Dielectric constant: 3.2/+20 °C/800 Hz; 2.9/+180 °C/800 Hz

Tolerance: DIN ISO 3302-1

The tube is made of peroxide crosslinked silicone and is suitable for direct food contact (etc. Recommendation XV of the BfR and FDA 21 CFR §177.2600).

Silicone jacket:

Colour: red

Jacket: fused with silicone core tubing

Insert: glass silk (up to +200 °C)

Close menu

No additional information available.

Item	Inside Ø mm	Außen-Ø mm	Platzdruck¹ bar	Einheit m	Price Euro*
28515	3	8	60	5	177.00
28516	3	8	60	15	406.00
28517	4	9	40	5	196.00
28518	4	9	40	15	447.00
28519	5	10	40	5	211.00
28520	5	10	40	15	462.00
28521	6	11,5	40	5	230.00
28522	6	11,5	40	15	481.00
28523	6	12	40	5	241.00
28524	6	12	40	15	490.00
28525	6	12,5	40	5	250.00
28526	6	12,5	40	15	524.00
28527	7	13	40	5	258.00
28528	7	13	40	15	537.00
28529	8	14	40	5	269.00
28530	8	14	40	15	553.00
28531	8,5	16	40	5	303.00
28532	8,5	16	40	15	604.00
28533	9,5	16	35	5	311.00
28534	9,5	16	35	15	621.00
28535	9,5	17	35	5	333.00
28536	9,5	17	35	15	666.00
28537	10	18	30	5	343.00
28538	10	18	30	15	694.00
28541	12	20	30	5	360.00
28542	12	20	30	15	745.00
28543	12,5	20,5	30	5	371.00
28544	12,5	20,5	30	15	763.00
28545	14	23	30	5	493.00
28546	14	23	30	15	1,086.00
49656	15	24	30	1	192.00
49657	15	24	30	3	564.00
28547	15	24	30	10	1,137.00
49622	16	25,5	30	1	216.00
49623	16	25,5	30	3	578.00
28548	16	25,5	30	10	1,217.00
49658	18	29,5	25	1	264.00
49659	18	29,5	25	3	646.00
28549	18	29,5	25	10	1,314.00
49626	19	30,5	25	1	272.00
49627	19	30,5	25	3	726.00
28550	19	30,5	25	10	1,370.00
49666	20	31,5	25	1	284.00
49667	20	31,5	25	3	733.00
28683	20	31,5	25	10	1,420.00
49668	22	33,5	15	1	294.00
49669	22	33,5	15	3	765.00
28684	22	33,5	15	10	1,528.00
49670	24	35,5	15	1	316.00
49671	24	35,5	15	3	791.00
28685	24	35,5	15	10	1,642.00
49628	25	37	15	1	325.00
49629	25	37	15	3	797.00
28688	25	37	15	10	1,736.00
