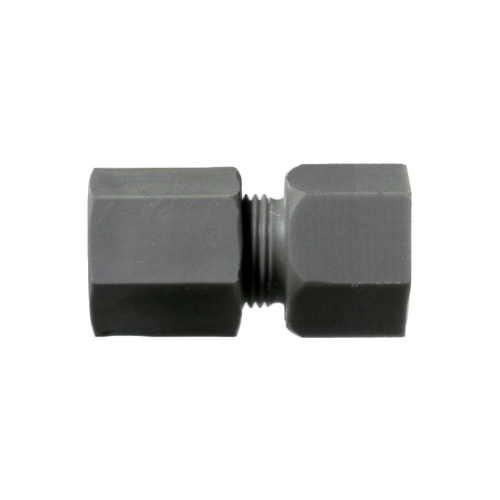

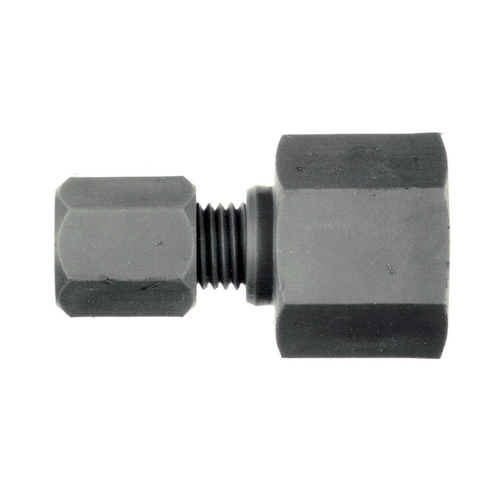

Straight Pipe Connector with Female Thread made of PP, PVDF or PTFE

Straight Pipe Connector with Female Thread made of PP, PVDF or PTFE

Product specification Straight, pipe connection on one side; female G- or M-thread on the... more

Close menu

Product specification

Straight, pipe connection on one side; female G- or M-thread on the other side

General Information EMP-4 THOMAFLUID ® -pipe screw fittings are used for connecting pipes... more

Close menu

General Information EMP-4

THOMAFLUID^®-pipe screw fittings are used for connecting pipes made of various materials such as metal, glass or plastic e.g. PA, PTFE or PVDF. This represents a considerable advantage of this kind of screwed fittings. The screw fitting is not limited to use with rigid pipes but also with flexible pipes or tubing. In this case, carrying brackets (items 22036-54) are required.

THOMAFLUID^®-pipe screw fittings of the MULTIFIT^®-EMP-series can be screwed into THOMAFLUID^®-valves, cocks, and flowmeters of the MULTIFIT^®-EMP-series.

Assembly:

The connection principle entails pushing the pipe against the inner edge of the connector and sealing with a sealing ring. The pipe is secured in place by a cutting ring (PEEK), which is forced against the pipe by a nut. The more the nut is screwed onto the connector body, the more the slotted cutting ring wedges the pipe. The result is a tight, friction-locked connection, which can be released at any time. The design concept eliminates the dead volume. It also has no effect on the flow because the inside diameter is identical to that of the pipe.

If flexible tubing has have to be adapted using THOMAFLUID^®-pipe screw fittings, first the carrying brackets have to be put in the flexible tubes. Afterwards, the fixed assembly is done by tightening the cap nut.

PP (Polypropylene)

Extremely good impact toughness and notch impact strength

Higher hardness and stiffness as well as better resilience than PE

Thermoforming possible

Very good dielectrical properties

Good resistance to alcohols, ketones, conc. acids and alkalis

Not stable to aromatic hydrocarbons, fats and oils, halogenes

Autoclavable

Resistant to hydrolysis

Physiologically safe

Regulatory compliance to FDA 21 CFR 177.1520, RoHS, BPA-free, DEHP-free, BSE/ADI-free

Colour: grey

Density: 0.90 g/cm³

Temperature range: +5 to +90 °C

Shore hardness D: 72°

Max. operating pressure: 10 bar at +20 °C

Water absorption: <0.05 %

Tensile strength: 25 - 40 N/mm²

Elongation at break: 800 %

Surface resistance: >10¹³ Ohm

Melt flow index MFR: 0.3 g/10 min.

PVDF (Polyvinylidene fluoride)

High-quality technical plastic for chemical apparatus and machine building, especially in the petrochemical, metallurgical, pharmaceutical, food processing, paper and textile industry as well as in the nuclear technology.

High impact toughness even at low temperatures

Good breakdown strength

Low dielectric loss factor

Highest mechanical stability and stiffness

Meeting highest purity requirements

Comply with the guidelines from FDA, BSE/ADI-free and USP class VI, additionally PVDF has the KTW approval. Up to +150 °C it is non-toxic and since it has a similar property to glass it is a no-culture medium for microorganisms.

Can be treated by autoclave (absolute sterile) and sterilized with gamma-rays without losing its mechanical qualities

Outstanding resistance to UV, weather and aging

Flame-resistant

High thermal stability

Resistant to alcohols, fats and oils, halogenes, alkalis, acids

Not stable to aromatic hydrocarbons, ketones, amines, pyridine, dimethylformamide, hot alkalis, fuming sulfuric acid

Colour: nature, slightly translucent

Density: 1.75 g/cm³

Temperature range: -40 to +140 °C

Shore hardness D: 79°

Max. operating pressure: 10 bar at +20 °C

Water absorption: <0.04 %

Tensile strength: 38 - 50 N/mm²

Surface resistance: >10¹³ Ohm

Melt flow index MFR: 6 g/10 min.

PTFE (Polytetrafluoroethylene)

Heavy-duty plastic

Antiadhesive surface

Outstanding sliding properties

Lowest friction coefficient of all fluorinated plastics

Excellent stress cracking resistance

Excellent weather resistance

Highest gas-tightness

No water absorption

Very good dielectric properties independent of frequency and temperature

Very good electrical insulating capacity also at air humidity

High tracking resistance

Non-combustible

Colour: milky, white

Density: 2.20 g/cm³

Temperature range: -200 to +150 °C

Shore hardness D: 60°

Max. operating pressure: 6 bar at +20 °C

Tearing strength: 30 - 40 N/mm²

Elongation at break: 300 %

Water absorption: 0.01 %

Surface resistance: >10¹⁷ Ohm

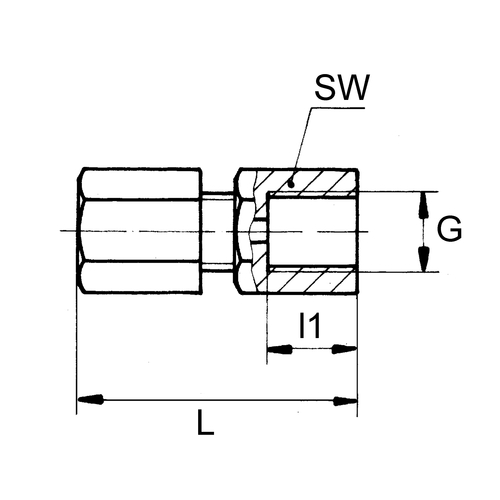

Item	Pipe outside Ø mm	Innengewinde	l1 mm	L mm	SW mm	Werkstoff	Einheit Stück	Price Euro*
107101	4	G 1/8"	10	40	14	PP	10	81.00
10712	4	G 1/8"	10	40	14	PVDF	5	105.00
10713	4	G 1/4"	15	46	17	PP	10	86.00
10715	4	G 1/4"	15	46	17	PVDF	5	113.00
10716	4	G 3/8"	15	46	22	PP	10	156.00
10718	4	G 3/8"	15	46	22	PVDF	5	156.00
10719	4	G 1/2"	16	48	27	PP	10	172.00
10721	4	G 1/2"	16	48	27	PVDF	5	180.00
22415	6	G 1/8"	10	40	14	PP	10	81.00
22417	6	G 1/8"	10	40	14	PVDF	5	140.00
22419	6	G 1/4"	15	46	17	PP	10	90.00
22421	6	G 1/4"	15	46	17	PVDF	5	140.00
22423	6	G 3/8"	15	46	22	PP	10	135.00
22425	6	G 3/8"	15	46	22	PVDF	3	126.00
22427	6	G 1/2"	16	48	27	PP	10	147.00
22428	6	G 1/2"	16	48	27	PTFE	3	155.00
22429	6	G 1/2"	16	48	27	PVDF	3	142.00
22431	8	G 1/8"	10	40	17	PP	10	150.00
22433	8	G 1/8"	10	40	17	PVDF	3	142.00
22435	8	G 1/4"	15	46	17	PP	10	147.00
22437	8	G 1/4"	15	46	17	PVDF	3	142.00
22439	8	G 3/8"	15	46	22	PP	10	161.00
22441	8	G 3/8"	15	46	22	PVDF	3	151.00
22443	8	G 1/2"	16	48	27	PP	10	172.00
22445	8	G 1/2"	16	48	27	PVDF	2	114.00
22447	10	G 1/8"	10	43	19	PP	10	172.00
22449	10	G 1/8"	10	43	19	PVDF	2	114.00
22451	10	G 1/4"	15	49	19	PP	10	170.00
22453	10	G 1/4"	15	49	19	PVDF	2	114.00
22455	10	G 3/8"	15	49	22	PP	10	172.00
22457	10	G 3/8"	15	49	22	PVDF	2	114.00
22459	10	G 1/2"	16	50	27	PP	10	172.00
22461	10	G 1/2"	16	50	27	PVDF	2	114.00
22463	12	G 1/4"	15	51	22	PP	10	236.00
22465	12	G 1/4"	15	51	22	PVDF	2	116.00
22467	12	G 3/8"	15	51	22	PP	10	236.00
22469	12	G 3/8"	15	51	22	PVDF	2	120.00
22471	12	G 1/2"	16	52	27	PP	5	124.00
22473	12	G 1/2"	16	52	27	PVDF	2	125.00
22475	14	G 1/4"	15	52	27	PP	5	156.00
22477	14	G 1/4"	15	52	27	PVDF	1	69.00
22479	14	G 3/8"	15	52	27	PP	5	156.00
22481	14	G 3/8"	15	52	27	PVDF	1	83.00
22483	14	G 1/2"	16	53	27	PP	5	172.00
22485	14	G 1/2"	16	53	27	PVDF	1	91.00
22487	6	M10 x 1,5	10	40	14	PP	10	a.A.
22489	6	M10 x 1,5	10	40	14	PVDF	5	141.00
22491	6	M12 x 1,5	15	46	17	PP	10	a.A.
22493	6	M12 x 1,5	15	46	17	PVDF	5	a.A.
22495	6	M16 x 1,5	15	46	22	PP	10	a.A.
22497	6	M16 x 1,5	15	46	22	PVDF	5	a.A.
22499	6	M18 x 1,5	15	46	24	PP	10	a.A.
22501	6	M18 x 1,5	15	46	24	PVDF	5	a.A.
22503	8	M10 x 1,5	10	40	17	PP	10	a.A.
22505	8	M10 x 1,5	10	40	17	PVDF	5	148.00
22507	8	M12 x 1,5	15	46	17	PP	10	a.A.
22509	8	M12 x 1,5	15	46	17	PVDF	5	a.A.
22511	8	M16 x 1,5	15	46	22	PP	10	a.A.
22513	8	M16 x 1,5	15	46	22	PVDF	3	a.A.
22515	8	M18 x 1,5	15	46	24	PP	10	a.A.
22517	8	M18 x 1,5	15	46	24	PVDF	3	a.A.
22519	10	M10 x 1,5	10	43	19	PP	10	99.00
22521	10	M10 x 1,5	10	43	19	PVDF	5	181.00
22523	10	M12 x 1,5	15	49	19	PP	10	a.A.
22525	10	M12 x 1,5	15	49	19	PVDF	3	a.A.
22527	10	M16 x 1,5	15	49	22	PP	10	a.A.
22529	10	M16 x 1,5	15	49	22	PVDF	3	a.A.
22531	10	M18 x 1,5	15	49	24	PP	10	a.A.
22533	10	M18 x 1,5	15	49	24	PVDF	2	a.A.
22535	12	M12 x 1,5	15	51	22	PP	10	a.A.
22537	12	M12 x 1,5	15	51	22	PVDF	2	120.00
22539	12	M14 x 1,5	15	51	22	PP	10	a.A.
22541	12	M14 x 1,5	15	51	22	PVDF	2	a.A.
22543	12	M16 x 1,5	15	51	22	PP	10	a.A.
22544	12	M16 x 1,5	15	51	22	PTFE	2	111.00
22545	12	M16 x 1,5	15	51	22	PVDF	2	a.A.
22547	12	M18 x 1,5	15	51	24	PP	10	a.A.
22549	12	M18 x 1,5	15	51	24	PVDF	2	a.A.
22551	14	M12 x 1,5	15	52	27	PP	5	102.00
22553	14	M12 x 1,5	15	52	27	PVDF	2	a.A.
22555	14	M14 x 1,5	15	52	27	PP	10	a.A.
22557	14	M14 x 1,5	15	52	27	PVDF	2	a.A.
22559	14	M16 x 1,5	15	52	27	PP	5	a.A.
22561	14	M16 x 1,5	15	52	27	PVDF	2	a.A.
22563	14	M18 x 1,5	15	52	27	PP	5	a.A.
22565	14	M18 x 1,5	15	52	27	PVDF	2	a.A.
