Product specification

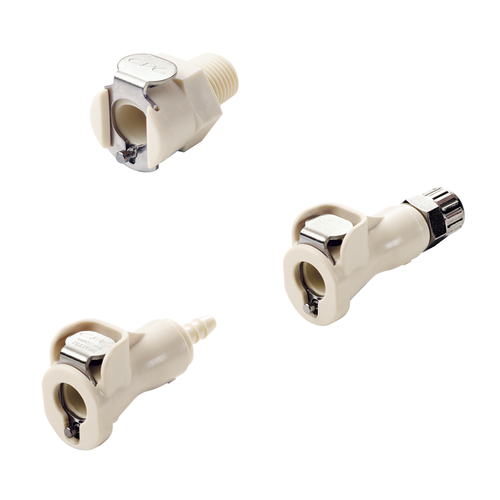

Female coupling part. With shut-off and hose nozzle; external thread or pipe screwed fitting for piping connection. Can be combined with all male coupling parts of nominal width 3.2 mm.
General Information Quick-Disconnect Coupling
THOMAFLUID®-quick-disconnect coupling systems are excellently suited for connecting and disconnecting of tubes, apparatuses etc. The quick-disconnect couplings are easy to operate, connecting and disconnecting can be done by one hand. The coupling is self-locking when the nipple is plugged-in. For disconnection a short thumb pressure on the lock is sufficient to pull out the nipple easily. All nipples are fitted with an easily interchangeable, reliably sealing O-ring.
A complete operable THOMAFLUID®-quick-disconnect coupling system consists of a coupling part and a nipple part, both parts may be fitted with valves. A complete quick-disconnect coupling system locking at one side consists of a coupling part with shut-off and a nipple part with port, or a coupling part with port and a nipple part with shut-off. To get a coupling locking on both sides, a coupling part as well as a nipple part, both with shut-off, have to be obtained.
General Information PP
Use for microbiological testing equipment, electroplating liquids, sterilisation equipment, water pollution analysis.
PP allows higher chemical resistances for more demanding applications compared to POM. The coupling parts are also sterilizable with gamma rays.
Resistant to oils, petrol, acids etc.
General Information 3.2 mm nominal width
The couplings of the 3.2 mm nominal size range cover a whole range of standard applications such as for microbiological examination devices, electroplating liquids, sterilization devices or for water pollutant analysis.
Various connection combinations from hose nozzles to pipe connections to internal and external threads.
With the release button, separation with one hand is possible and therefore easier to use than with brass couplings.
No leaks, shorter installation length, faster assembly.
Audible "click" when connecting.
Can also be combined with metal couplings with a nominal width of 3.2 mm.
Material:
Valve body: PP (polypropylene)
Gaskets: EPDM (ethylene-propylene-diene rubber)
Valve spring: stainless steel 316
Colour: beige
Nominal width: 3.2 mm
Plug diameter: approx. 8.0 mm
Temperature range: 0 to +70 °C
Max. operating pressure: 8.3 bar at +20 °C
| Item | Image | Connection | Ventil |
Länge mm
|
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|
| 51510 |
PP Quick-Disconnect Coupling, NW 3.2 mm
PP Quick-Disconnect Coupling, NW 3.2 mm
|
Tülle 3,2 mm | mit | 42 | 1 | 29.00 | |
| 51511 |
PP Quick-Disconnect Coupling, NW 3.2 mm
PP Quick-Disconnect Coupling, NW 3.2 mm
|

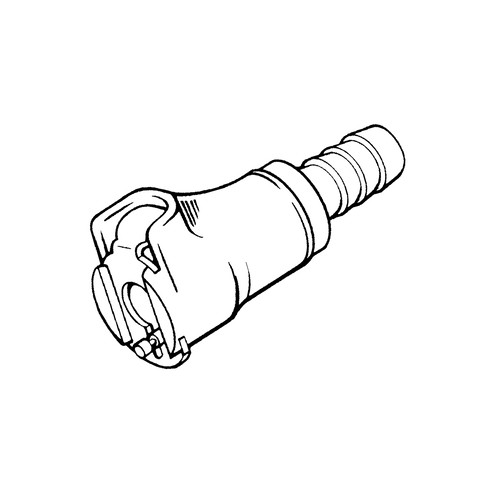

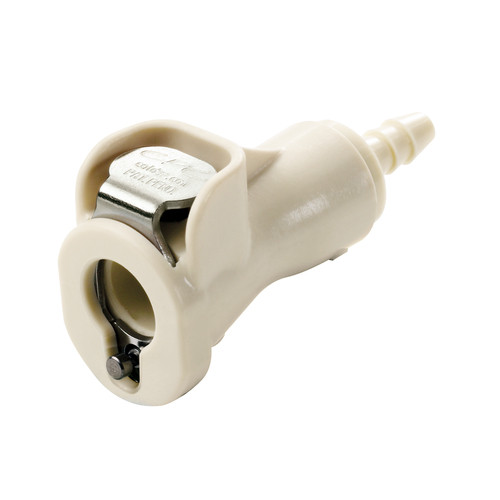

Tülle 6,4 mm | mit | 48 | 1 | 29.00 | |
| 51514 |
PP Quick-Disconnect Coupling, NW 3.2 mm
PP Quick-Disconnect Coupling, NW 3.2 mm
|

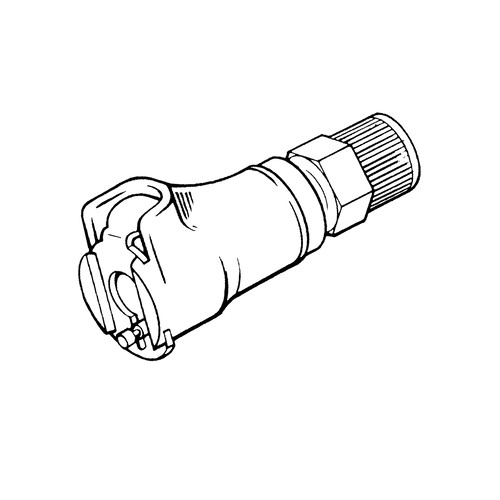

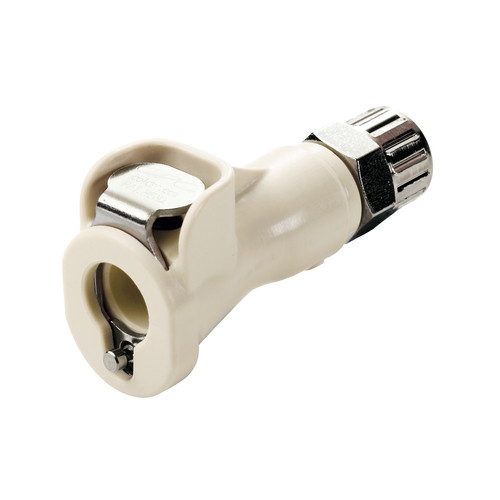

Rohr 6,4 mm | mit | 44 | 1 | 30.00 | |
| 51500 |
PP Quick-Disconnect Coupling, NW 3.2 mm
PP Quick-Disconnect Coupling, NW 3.2 mm
|

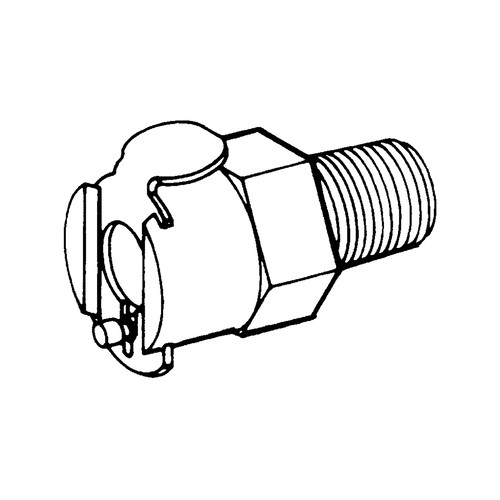

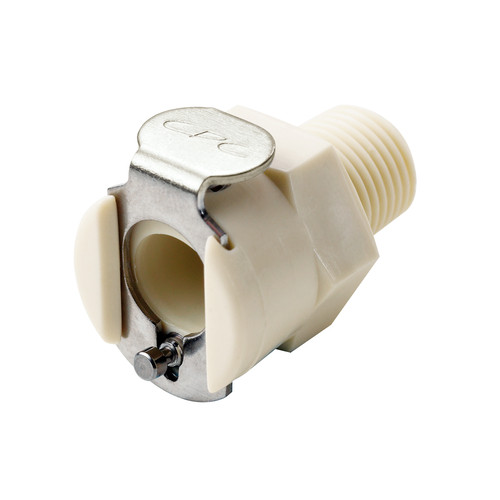

A-Gewinde NPT 1/8" | mit | 25 | 1 | 23.00 | |
| 51501 |
PP Quick-Disconnect Coupling, NW 3.2 mm
PP Quick-Disconnect Coupling, NW 3.2 mm
|
A-Gewinde NPT 1/4" | mit | 28 | 1 | 24.00 | |
| 51531 |
PP Quick-Disconnect Coupling, NW 3.2 mm
|

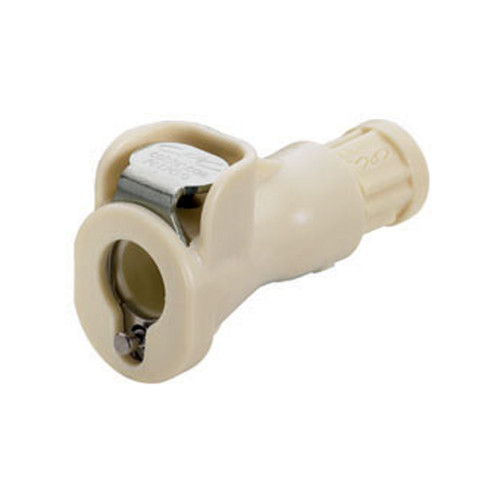

I-Gewinde UNF 1/4"-28 | mit | 40 | 1 | 31.00 | |
