Product specification

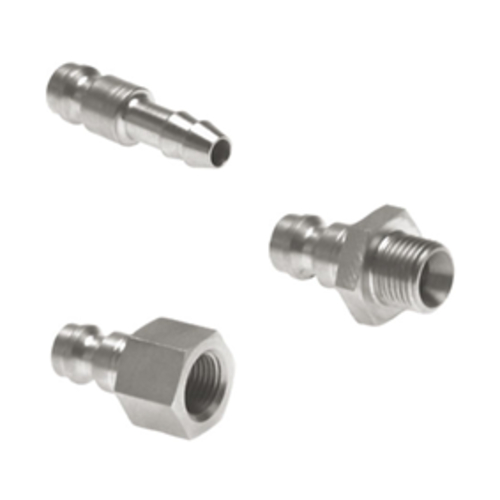

Male coupling part. With shut-off and hose nozzle; external or internal thread for piping connection. Can be combined with all female coupling parts of nominal width 2.7 mm locking on both sides.
General Information Quick-Disconnect Coupling
The two-part metal connectors are made of high-quality steel or brass and available in two designs: shutting-off on one side and shutting-off on both sides. Coupling (female part) and nipple (male part) of the same design only can be combined with each other.
General Information Quick-Disconnect Couplings made of Stainless Steel
THOMAFLUID®-quick-release couplings are excellently suitable for connecting and disconnecting of tubing, apparatuses etc. One-hand operating of all quick-release couplings allows coupling or disconnecting even at places hard to get to. When pushing the nipple into the quick-release coupling the valve opens automatically and the medium flows to the point of usage. When disconnecting, the valve in the quick-release coupling shuts off automatically. A complete operable quick-release coupling consists of a coupling part and a nipple part. All coupling parts (female parts) are delivered with shut-off valve; all nipple parts (male parts) are delivered without valve.
The coupling systems are available in two designs:
Single shut-off: All coupling parts are available with valve for shut-off, all plug parts are delivered without valve.
Double shut-off: All coupling parts and all plug parts are available with valve for shut-off.
(Coupling elements of one type cannot be combined with elements of the other type)
Material:
Valve body: stainless steel 1.4305
Gasket: FPM (fluorinated rubber)
Springs, retaining rings: stainless steel 1.4034
Unlocking bush: stainless steel 1.4305
Valve: stainless steel 1.4310
Balls: stainless steel 1.4401
Colour: silver
Nominal width: 2.7; 5; 7.4 and 7.8 mm
Temperature range: -40 to +200 °C
Max. operating pressure: 70 bar bei +20 °C
| Item | Image | Connection |
Länge mm
|
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|

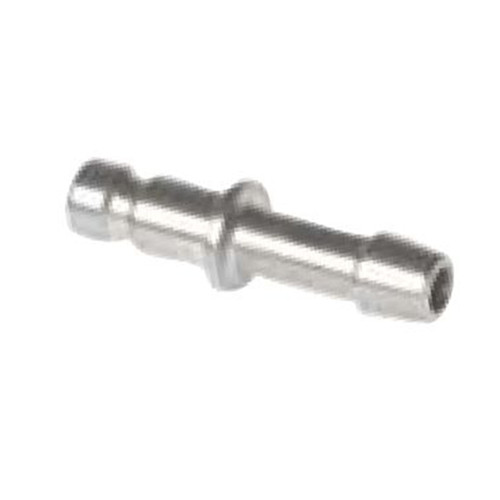

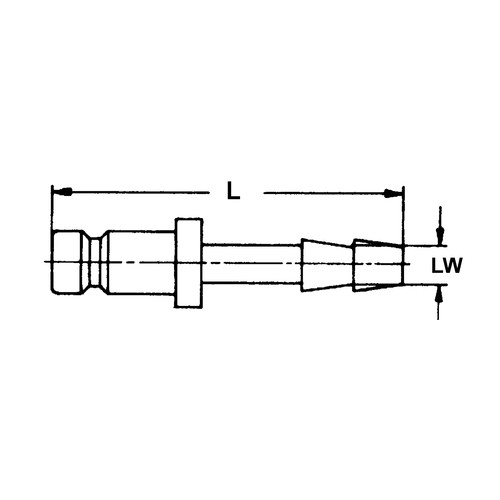

| 51188 |
Quick-Disconnect Nipple made of Stainless Steel, NW 2.7 mm - shutting-off on both sides
Quick-Disconnect Nipple made of Stainless Steel, NW 2.7 mm - shutting-off on both sides
|
Tülle 3 mm | 28 | 1 | 103.00 | |
| 51189 |
Quick-Disconnect Nipple made of Stainless Steel, NW 2.7 mm - shutting-off on both sides
Quick-Disconnect Nipple made of Stainless Steel, NW 2.7 mm - shutting-off on both sides
|
Tülle 4 mm | 28 | 1 | 103.00 | |

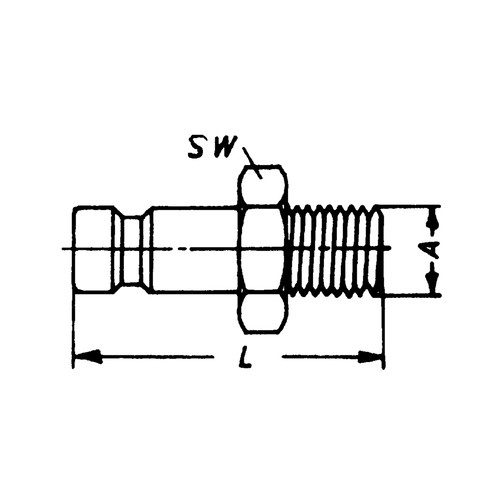

| 51214 |
Quick-Disconnect Nipple made of Stainless Steel, NW 2.7 mm - shutting-off on both sides
Quick-Disconnect Nipple made of Stainless Steel, NW 2.7 mm - shutting-off on both sides
|
A-Gewinde M5 | 18 | 1 | 48.00 | |

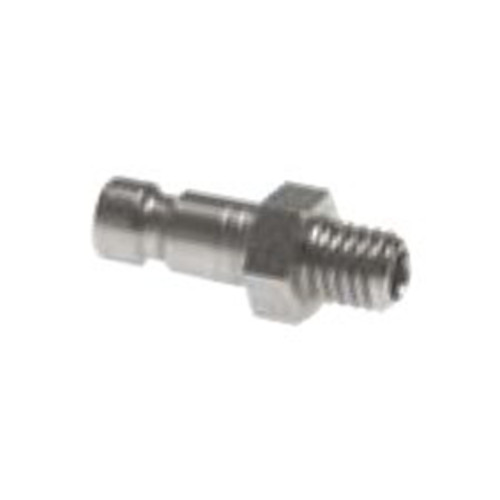

| 51215 |
Quick-Disconnect Nipple made of Stainless Steel, NW 2.7 mm - shutting-off on both sides
Quick-Disconnect Nipple made of Stainless Steel, NW 2.7 mm - shutting-off on both sides
|
A-Gewinde G 1/8" | 20 | 1 | 48.00 | |
| 51234 |
Quick-Disconnect Nipple made of Stainless Steel, NW 2.7 mm - shutting-off on both sides
Quick-Disconnect Nipple made of Stainless Steel, NW 2.7 mm - shutting-off on both sides
|
I-Gewinde M5 | 17 | 1 | 96.00 | |

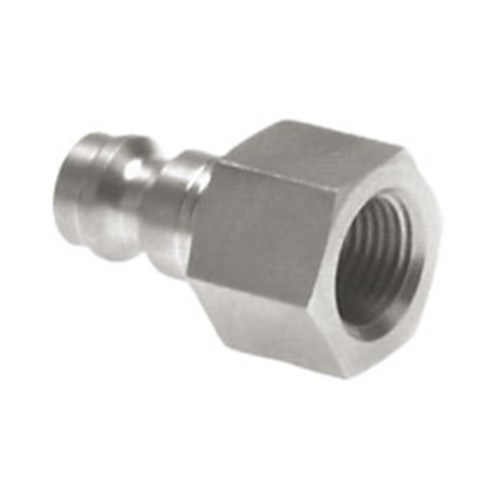

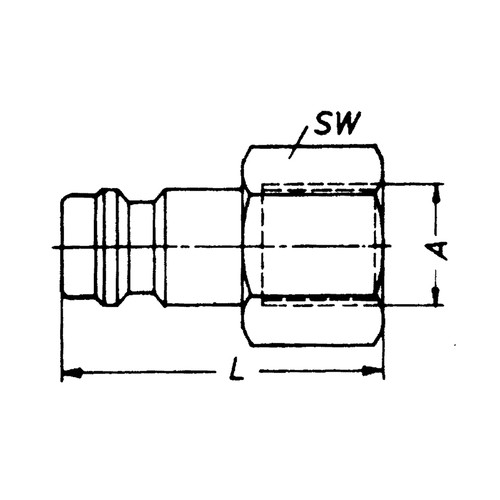

| 51235 |
Quick-Disconnect Nipple made of Stainless Steel, NW 2.7 mm - shutting-off on both sides
Quick-Disconnect Nipple made of Stainless Steel, NW 2.7 mm - shutting-off on both sides
|
I-Gewinde G 1/8" | 19 | 1 | 96.00 | |
