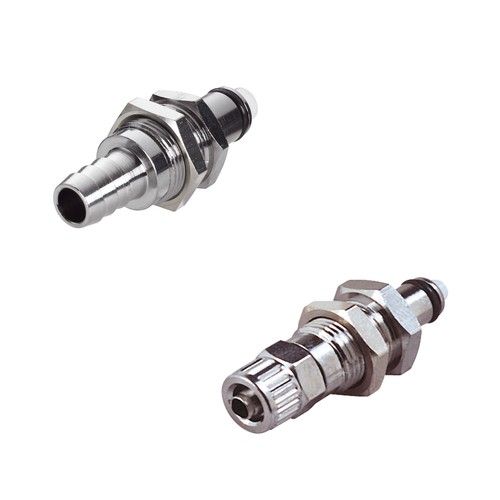

Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel

Product specification Male coupling part. With port or shut-off and hose nozzle or pipe... more

Product specification

Male coupling part. With port or shut-off and hose nozzle or pipe screwed fitting for control panel mounting. Can be combined with all female coupling parts of nominal width 6.4 mm.

General Information Quick-Disconnect Coupling The two-part metal connectors are made of... more

General Information Quick-Disconnect Coupling

The two-part metal connectors are made of high-quality steel or brass and available in two designs: shutting-off on one side and shutting-off on both sides. Coupling (female part) and nipple (male part) of the same design only can be combined with each other.

General Information Quick-Disconnect Couplings made of Chromium-Plated Brass

THOMAFLUID®-quick-release coupling systems are excellently suitable for connecting and disconnecting of tubing, apparatuses etc. The quick-release couplings are easily to operate and connecting as well as disconnecting can be done with only one hand. The coupling socket is self-locking, when the plug nozzle are plugged in. For disconnecting, a short thumb pressure on the lock is sufficient and the nipple can be easily withdrawn. All nipples are fitted with an easily interchangeable, dependable sealing O-ring.

A complete operable THOMAFLUID®-quick-release coupling consists of a coupling part and a nipple part; both parts can be fitted with valves. A completely one-side shutting-off quick-release coupling consists of a coupling part with shut-off and a nipple part with port or a coupling part with port and a nipple part with shut-off. To get a both sides locking coupling, both, a coupling part and a nipple part with shut-off each have to be obtained.

Material:

Valve body: chromium-plated brass

Gasket: NBR (butadiene-acrylonitrile-rubber)

Spring and shut-off: stainless steel

Valve: POM (polyacetal resin, polyoxymethylene)

Colour: silver

Nominal width: 3.2 and 6.4 mm

Plug diameter: approx. 8,0 mm at NW 3,2, approx. 11.2 mm at NW 6,4

Temperature range: -40 to +80 °C

Max. operating pressure: from vacuum up to 17 bar

Information: Contains the following substance which has been identified as a SVHC according to REACH article 33: Lead (Pb); CAS: 7439-92-1 EG-Number: 231-100-4

Item Image Connection Ventil Länge
mm
Schott-Ø
mm
Einheit
Stück
Price
Euro*
Buy
10411
Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel
Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel
Tülle 6,4 mm ohne 31 17,5 1 56.00
10412
Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel
Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel

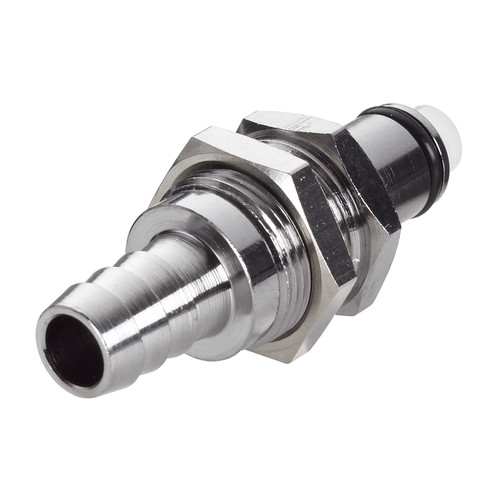

Tülle 8 mm ohne 31 17,5 1 56.00
10413
Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel
Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel
Tülle 9,5 mm ohne 31 17,5 1 56.00
10403
Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel
Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel
Rohr 6,4 mm ohne 27 17,5 1 60.00
10404
Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel
Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel

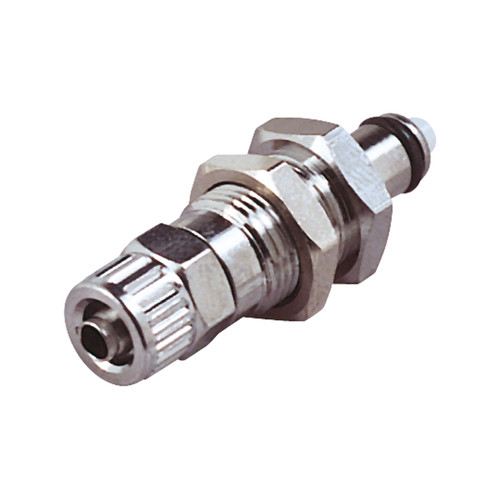

Rohr 9,5 mm ohne 29 17,5 1 66.00
10417
Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel
Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel

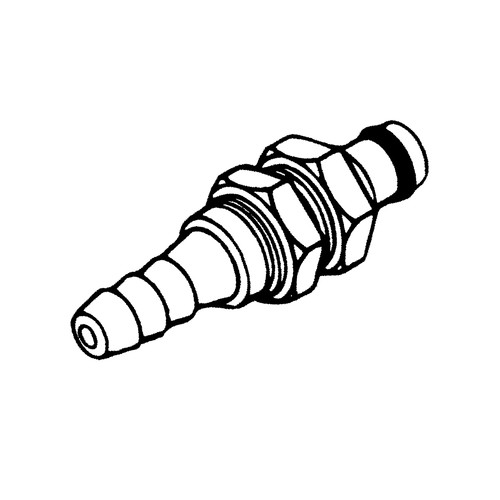

Tülle 6,4 mm mit 31 17,5 1 74.00
10418
Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel
Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel
Tülle 8 mm mit 31 17,5 1 74.00
10419
Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel
Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel
Tülle 9,5 mm mit 31 17,5 1 74.00
10406
Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel
Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel

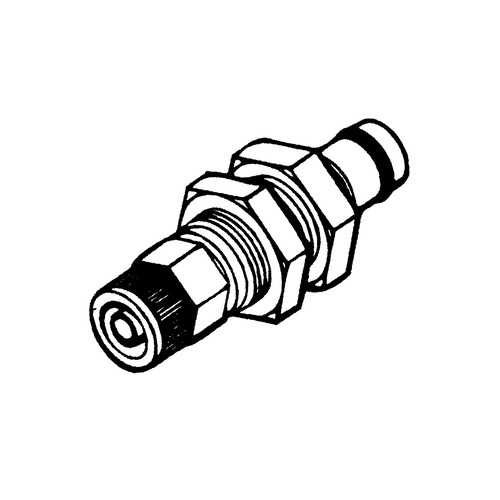

Rohr 6,4 mm mit 27 17,5 1 82.00
10407
Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel
Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel Quick-Disconnect Nipple made of Chromium-Plated Brass, NW 6.4 mm - Control Panel

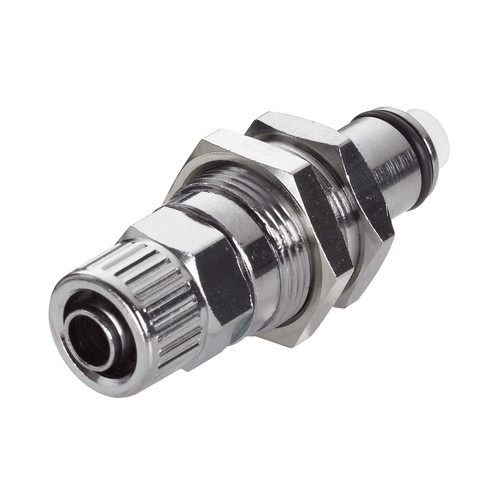

Rohr 9,5 mm mit 29 17,5 1 84.00
