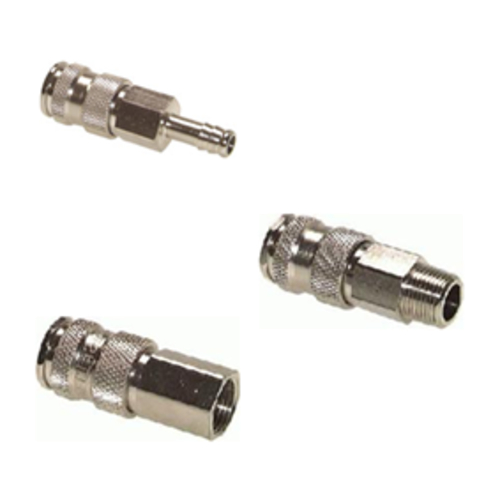

Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side

Product specification Female coupling part. With shut-off and hose nozzle; external or... more

Product specification

Female coupling part. With shut-off and hose nozzle; external or internal thread for piping connection. Can be combined with all male coupling parts of nominal width 7.8 mm locking on one side.

General Information Quick-Disconnect Coupling The two-part metal connectors are made of... more

General Information Quick-Disconnect Coupling

The two-part metal connectors are made of high-quality steel or brass and available in two designs: shutting-off on one side and shutting-off on both sides. Coupling (female part) and nipple (male part) of the same design only can be combined with each other.

General Information Quick-Disconnect Couplings made of Stainless Steel

THOMAFLUID®-quick-release couplings are excellently suitable for connecting and disconnecting of tubing, apparatuses etc. One-hand operating of all quick-release couplings allows coupling or disconnecting even at places hard to get to. When pushing the nipple into the quick-release coupling the valve opens automatically and the medium flows to the point of usage. When disconnecting, the valve in the quick-release coupling shuts off automatically. A complete operable quick-release coupling consists of a coupling part and a nipple part. All coupling parts (female parts) are delivered with shut-off valve; all nipple parts (male parts) are delivered without valve.

The coupling systems are available in two designs:

Single shut-off: All coupling parts are available with valve for shut-off, all plug parts are delivered without valve.

Double shut-off: All coupling parts and all plug parts are available with valve for shut-off.

(Coupling elements of one type cannot be combined with elements of the other type)

Material:

Valve body: stainless steel 1.4305

Gasket: FPM (fluorinated rubber)

Springs, retaining rings: stainless steel 1.4034

Unlocking bush: stainless steel 1.4305

Valve: stainless steel 1.4310

Balls: stainless steel 1.4401

Colour: silver

Nominal width: 2.7; 5; 7.4 and 7.8 mm

Temperature range: -40 to +200 °C

Max. operating pressure: 70 bar bei +20 °C

Item Image Connection Länge
mm
Einheit
Stück
Price
Euro*
Buy
51043
Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side
Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side

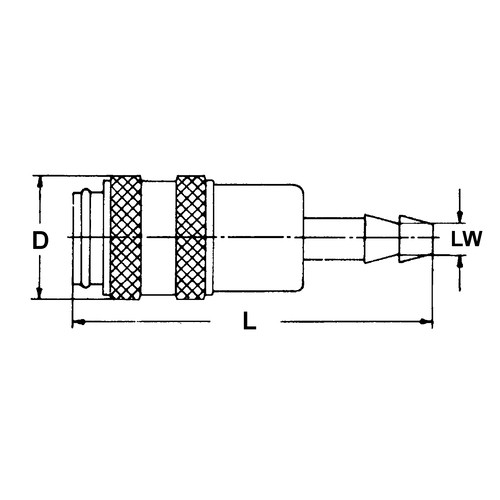

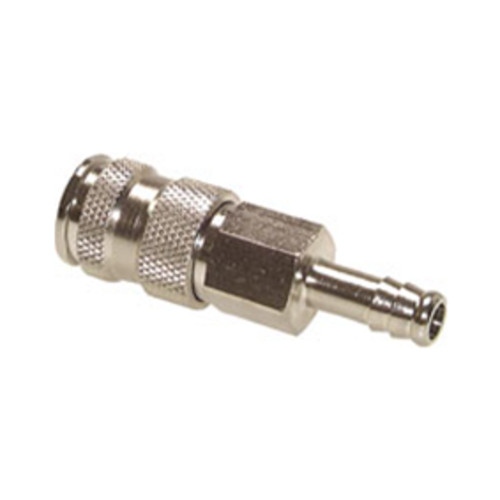

Tülle 6 mm 73 1 248.00
51044
Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side
Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side
Tülle 8 mm 73 1 248.00
51045
Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side
Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side
Tülle 9 mm 73 1 248.00
51046
Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side
Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side
Tülle 10 mm 73 1 248.00
51047
Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side
Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side
Tülle 13 mm 73 1 248.00
51005
Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side
Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side

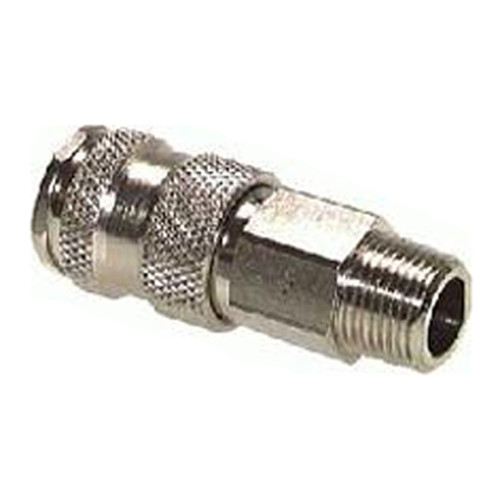

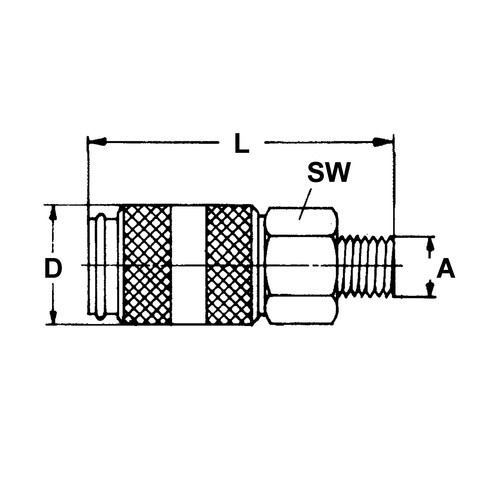

A-Gewinde G 1/4" 60 1 248.00
51006
Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side
Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side
A-Gewinde G 3/8" 60 1 248.00
51007
Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side
Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side
A-Gewinde G 1/2" 65 1 248.00
51023
Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side
Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side

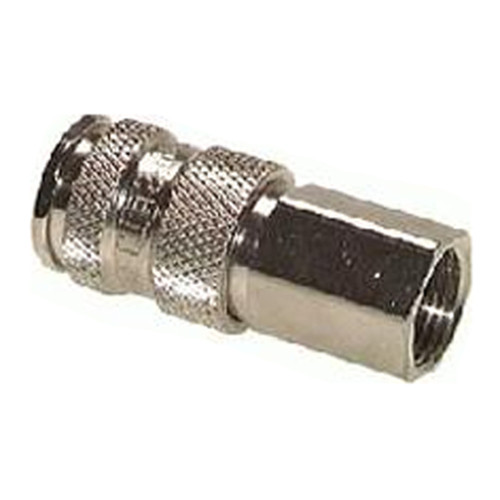

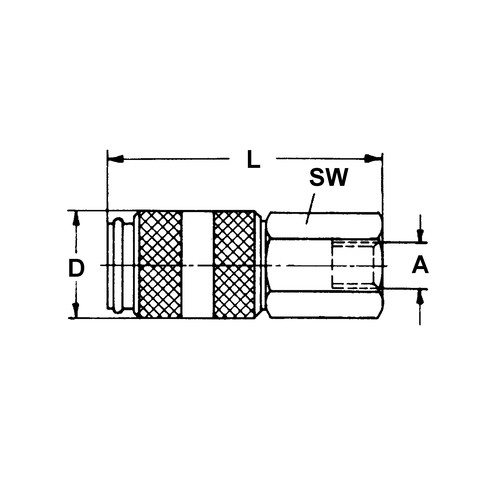

I-Gewinde G 1/4" 56 1 248.00
51024
Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side
Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side
I-Gewinde G 3/8" 56 1 248.00
51025
Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side
Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side Quick-Disconnect Coupling made of Stainless Steel, NW 7.8 mm - shutting-off on one side
I-Gewinde G 1/2" 58 1 248.00
