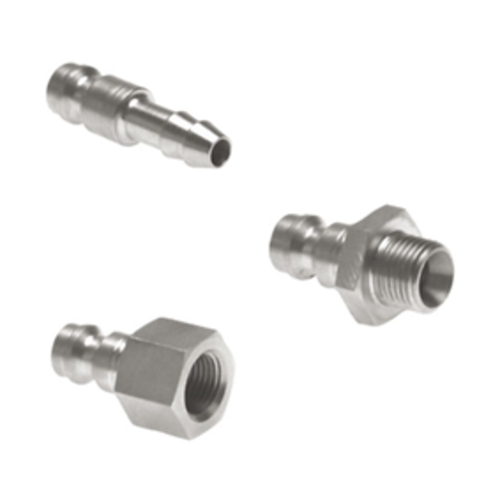

Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides

Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides

Product specification Male coupling part. With shut-off and hose nozzle; external or internal... more

Close menu

Product specification

Male coupling part. With shut-off and hose nozzle; external or internal thread for piping connection. Can be combined with all female coupling parts of nominal width 5 mm locking on both sides.

General Information Quick-Disconnect Coupling The two-part metal connectors are made of... more

Close menu

General Information Quick-Disconnect Coupling

The two-part metal connectors are made of high-quality steel or brass and available in two designs: shutting-off on one side and shutting-off on both sides. Coupling (female part) and nipple (male part) of the same design only can be combined with each other.

General Information Quick-Disconnect Couplings made of Stainless Steel

THOMAFLUID^®-quick-release couplings are excellently suitable for connecting and disconnecting of tubing, apparatuses etc. One-hand operating of all quick-release couplings allows coupling or disconnecting even at places hard to get to. When pushing the nipple into the quick-release coupling the valve opens automatically and the medium flows to the point of usage. When disconnecting, the valve in the quick-release coupling shuts off automatically. A complete operable quick-release coupling consists of a coupling part and a nipple part. All coupling parts (female parts) are delivered with shut-off valve; all nipple parts (male parts) are delivered without valve.

The coupling systems are available in two designs:

Single shut-off: All coupling parts are available with valve for shut-off, all plug parts are delivered without valve.

Double shut-off: All coupling parts and all plug parts are available with valve for shut-off.

(Coupling elements of one type cannot be combined with elements of the other type)

Material:

Valve body: stainless steel 1.4305

Gasket: FPM (fluorinated rubber)

Springs, retaining rings: stainless steel 1.4034

Unlocking bush: stainless steel 1.4305

Valve: stainless steel 1.4310

Balls: stainless steel 1.4401

Colour: silver

Nominal width: 2.7; 5; 7.4 and 7.8 mm

Temperature range: -40 to +200 °C

Max. operating pressure: 70 bar bei +20 °C

Item	Image	Connection	Länge mm	Einheit Stück	Price Euro*
51190	Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides	Tülle 4 mm	50	1	160.00

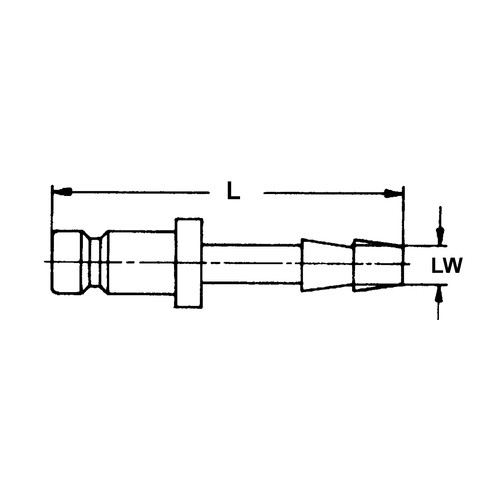

51191	Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides	Tülle 6 mm	50	1	160.00

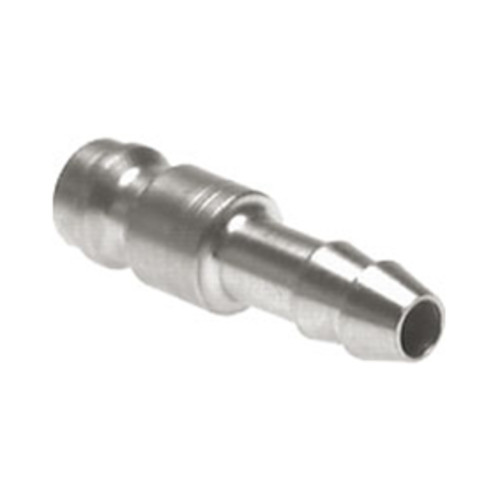

51192	Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides	Tülle 8 mm	50	1	170.00
51193	Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides	Tülle 9 mm	50	1	170.00
51194	Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides	Tülle 10 mm	50	1	170.00

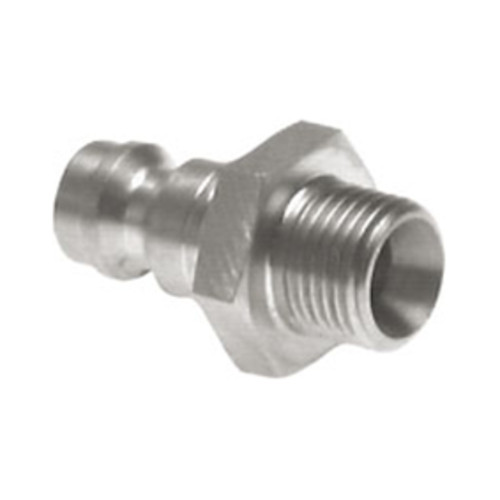

51216	Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides	A-Gewinde G 1/8"	40	1	155.00

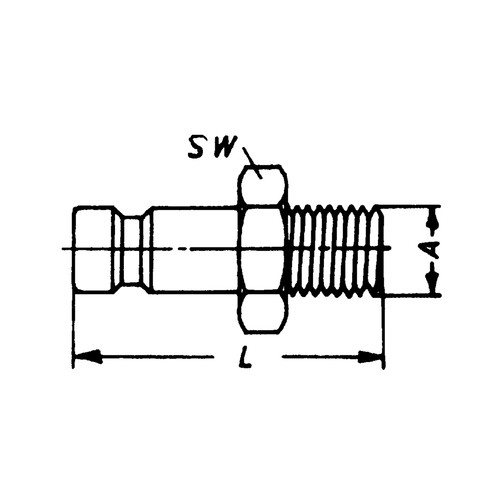

51217	Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides	A-Gewinde G 1/4"	42	1	155.00
51218	Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides	A-Gewinde G 3/8"	42	1	155.00

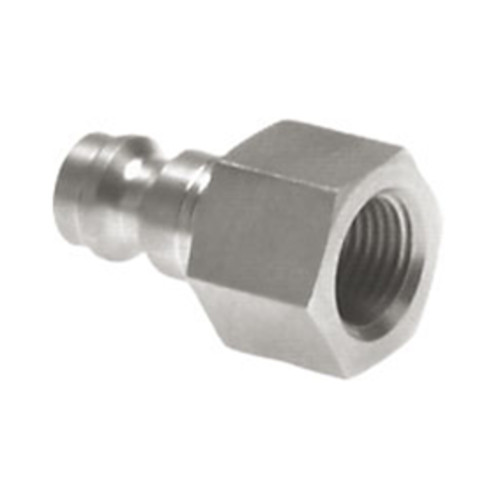

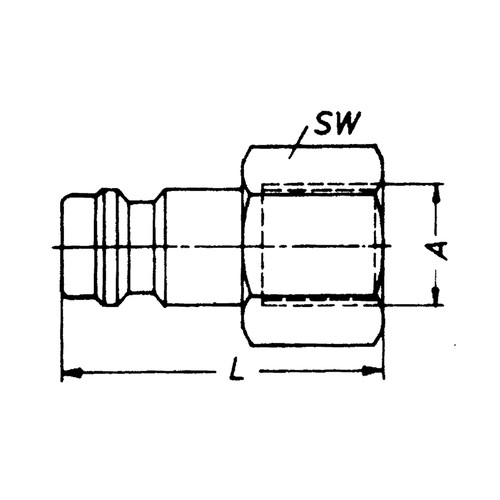

51236	Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides	I-Gewinde G 1/8"	40	1	163.00
51237	Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides	I-Gewinde G 1/4"	42	1	163.00
51238	Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides Quick-Disconnect Nipple made of Stainless Steel, NW 5 mm - shutting-off on both sides	I-Gewinde G 3/8"	42	1	163.00
