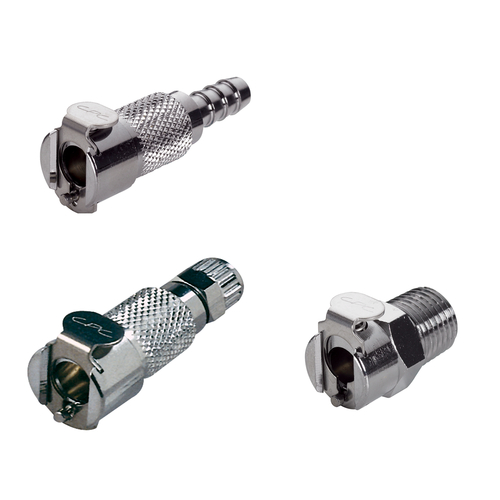

Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm

Product specification Female coupling part. With port or shut-off and hose nozzle; external... more

Product specification

Female coupling part. With port or shut-off and hose nozzle; external thread or pipe screwed fitting for piping connection. Can be combined with all male coupling parts of nominal width 3.2 mm.

General Information Quick-Disconnect Coupling The two-part metal connectors are made of... more

General Information Quick-Disconnect Coupling

The two-part metal connectors are made of high-quality steel or brass and available in two designs: shutting-off on one side and shutting-off on both sides. Coupling (female part) and nipple (male part) of the same design only can be combined with each other.

General Information Quick-Disconnect Couplings made of Chromium-Plated Brass

THOMAFLUID®-quick-release coupling systems are excellently suitable for connecting and disconnecting of tubing, apparatuses etc. The quick-release couplings are easily to operate and connecting as well as disconnecting can be done with only one hand. The coupling socket is self-locking, when the plug nozzle are plugged in. For disconnecting, a short thumb pressure on the lock is sufficient and the nipple can be easily withdrawn. All nipples are fitted with an easily interchangeable, dependable sealing O-ring.

A complete operable THOMAFLUID®-quick-release coupling consists of a coupling part and a nipple part; both parts can be fitted with valves. A completely one-side shutting-off quick-release coupling consists of a coupling part with shut-off and a nipple part with port or a coupling part with port and a nipple part with shut-off. To get a both sides locking coupling, both, a coupling part and a nipple part with shut-off each have to be obtained.

Material:

Valve body: chromium-plated brass

Gasket: NBR (butadiene-acrylonitrile-rubber)

Spring and shut-off: stainless steel

Valve: POM (polyacetal resin, polyoxymethylene)

Colour: silver

Nominal width: 3.2 and 6.4 mm

Plug diameter: approx. 8,0 mm at NW 3,2, approx. 11.2 mm at NW 6,4

Temperature range: -40 to +80 °C

Max. operating pressure: from vacuum up to 17 bar

Information: Contains the following substance which has been identified as a SVHC according to REACH article 33: Lead (Pb); CAS: 7439-92-1 EG-Number: 231-100-4

Item Image Connection Ventil Länge
mm
Einheit
Stück
Price
Euro*
Buy

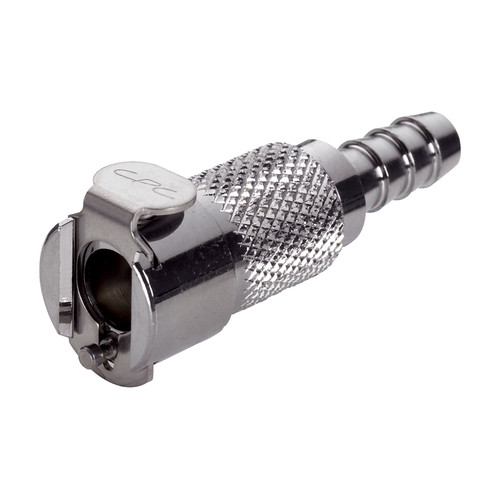

10343
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Tülle 3,2 mm ohne 42 1 60.00
10344
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Tülle 4,8 mm ohne 47 1 60.00
10345
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Tülle 6,4 mm ohne 47 1 60.00

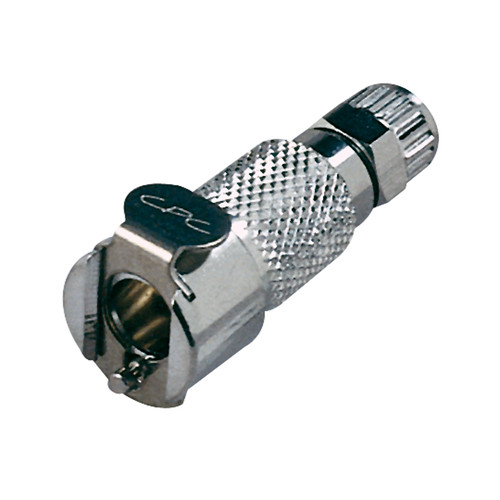

10321
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Rohr 6,4 mm ohne 43 1 73.00
10297
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
A-Gewinde NPT 1/8" ohne 25,4 1 37.00
10298
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
A-Gewinde NPT 1/4" ohne 28 1 37.00

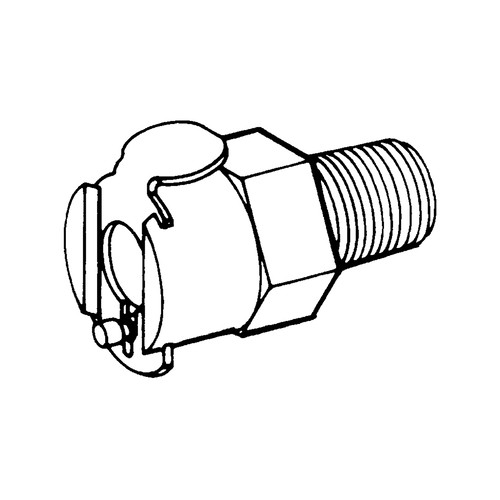

10305
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
A-Gewinde R 1/8" ohne 25,4 1 37.00
10306
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
A-Gewinde R 1/4" ohne 28 1 37.00

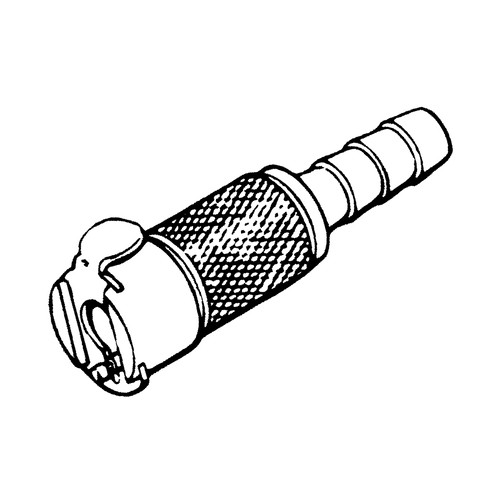

10349
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Tülle 3,2 mm mit 42 1 63.00
10350
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Tülle 4,8 mm mit 47 1 63.00

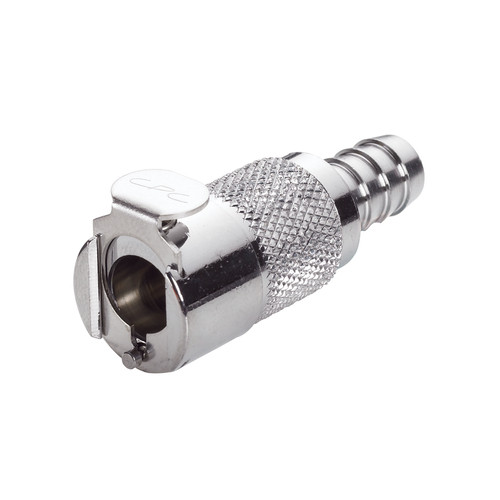

10351
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Tülle 6,4 mm mit 47 1 63.00

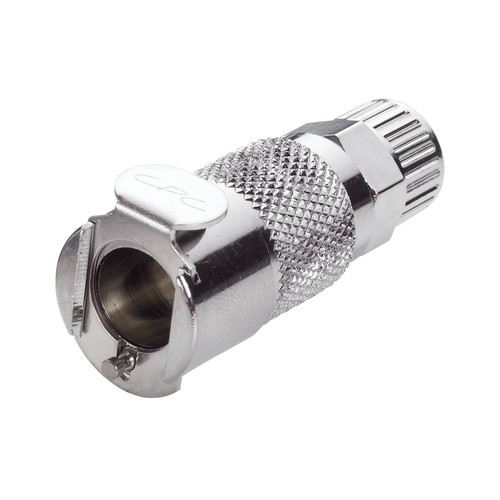

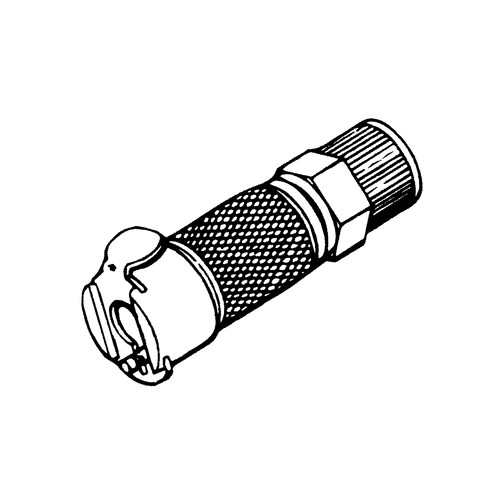

10324
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Rohr 6,4 mm mit 43 1 80.00
10301
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
A-Gewinde NPT 1/8" mit 25,4 1 41.00
10302
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
A-Gewinde NPT 1/4" mit 28 1 41.00
10309
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
A-Gewinde R 1/8" mit 25,4 1 41.00

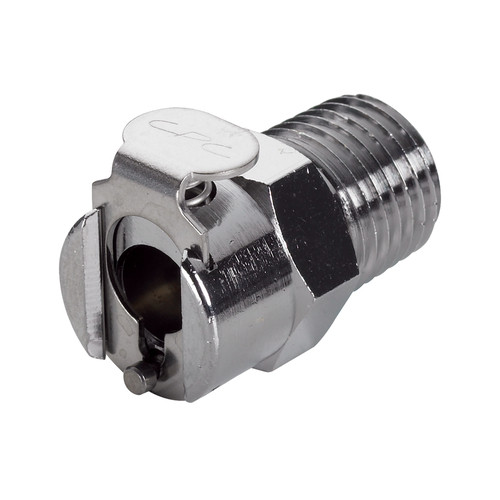

10310
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm Quick-Disconnect Coupling made of Chromium-Plated Brass, NW 3.2 mm
A-Gewinde R 1/4" mit 28 1 41.00
