Mini Vacuum Diaphragm Pump for Gaseous Media and Purest Media

Preview: Mini Vacuum Diaphragm Pump for Gaseous Media and Purest Media Preview: Mini Vacuum Diaphragm Pump for Gaseous Media and Purest Media
Mini Vacuum Diaphragm Pump for Gaseous Media and Purest Media
Mini Vacuum Diaphragm Pump for Gaseous Media and Purest Media

Description General Information
Description
Product specification Portable miniaturized single-head diaphragm pump for gases, very... more
Close menu

Product specification

Portable miniaturized single-head diaphragm pump for gases, very smooth, low-vibration run; cool-running motor. Thermal circuit breaker and mains fuse as overload protection; high tolerance to condensates and steam, maintenance-free. Medium-contacting parts made of inert plastic materials. Connections for conveying tubing, robust construction for any mounting position. Complete with on-off switch and mains cable.

Technical specification

Material:

Pump head: PPS

Diaphragm: PTFE

Valves: FFKM

Tubing connectors: PVDF

Drive system:

Voltage: 230 V~ / 50 Hz, according to VDE

Power consumption: 50 W

Protective system: IP 20

Final vacuum: 100 mbar abs.

Max. op. excess pressure: 2.5 bar

Max. ambient temperature: +40 °C

Pipe connection: nozzles, for tubing ID 4 mm

Dimension: approx. 216 x 90 x 141 mm (L x W x H)

Weight: 1.9 kg

General Information
more
Close menu
No additional information available.

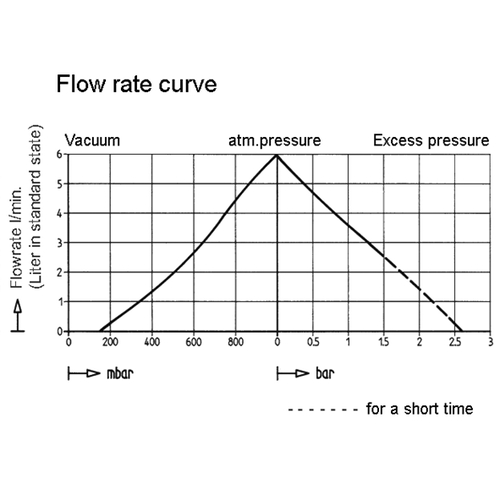

Item Image Max. delivery rate
l/min.
 Endvakuum
mbar
 Einheit
Stück
 Price
Euro* 		Buy
16571
5,5 100 1 982.00
