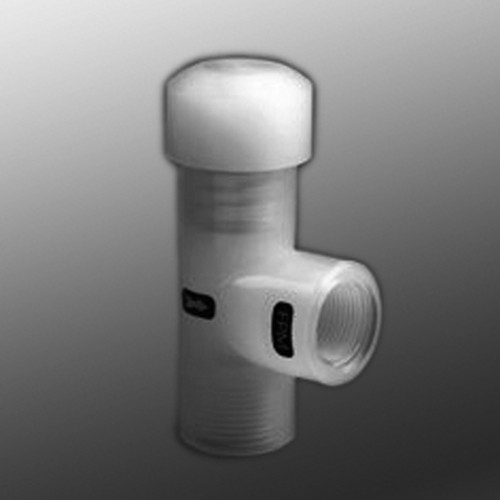

High-Tech Angle Single-Hand Operated Valve

Preview: High-Tech Angle Single-Hand Operated Valve Preview: High-Tech Angle Single-Hand Operated Valve
High-Tech Angle Single-Hand Operated Valve
High-Tech Angle Single-Hand Operated Valve


Description General Information
Description
Product specification A newly developed single-hand operated valve for uncomplicated sampling... more
Close menu

Product specification

A newly developed single-hand operated valve for uncomplicated sampling from flexible tubes.

A problem time and again in practice: often you only have one hand free during sampling, but it is difficult to open a valve or a cock with only one hand.

With the single-hand operated valve EMP-H5 these tasks are now very easy. It can be comfortably held and operated with one hand and via the spring-mounted press button an optimal metering of the sample quantity is possible.

Technical specification

Material:

Housing: PP (polypropylene), PVDF (polyvinylidene fluoride) or PFA (perfluoroalkoxy)

Sealing cone: PTFE (polytetrafluoroethylene)

O-ring: FPM (fluorinated rubber)

Kv-value: 0.16 m3/h = 160 l/h; (water +5 to +30 °C, Δp=1 bar)

Connection: G 1/4" internal thread

Max. operating pressure: 6 bar at +20 °C

General Information
more
Close menu
No additional information available.
