Elbow-Reducing Nipple made of PP, PVDF or PFA
Product specification Elbow, on one side external thread, other side internal thread more
Product specification
Elbow, on one side external thread, other side internal thread
General Information Material: PP , grey (polypropylene) Temperature range: +5 to... more
General Information

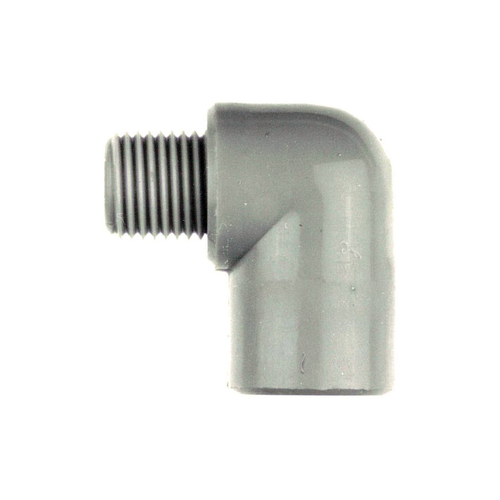

Material: PP, grey (polypropylene)
Temperature range: +5 to +90 °C
Max. operating pressure: 10 bar at +20 °C
Regulatory compliance to FDA 21 CFR 177.1520, RoHS, BPA-free, DEHP-free, BSE/ADI-free

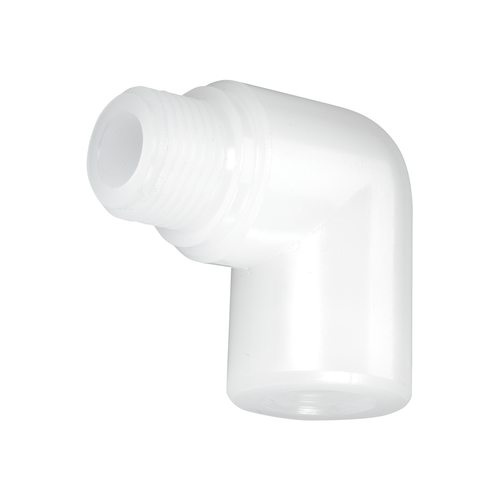

Material: PVDF, white (polyvinylidene fluoride)
Temperature range: -40 to +140 °C
Max. operating pressure: 10 bar at +20 °C
Regulatory compliance to FDA 21 CFR 177.1520, USP class VI, RoHS, BPA-free, DEHP-free, BSE/ADI-free
Material: PFA, white (perfluoroalkoxy)
Temperature range: -150 to +180 °C
Max. operating pressure: 10 bar at +20 °C
Regulatory compliance to FDA 21 CFR 177.1520, USP class VI, RoHS, BPA-free, DEHP-free, BSE/ADI-free

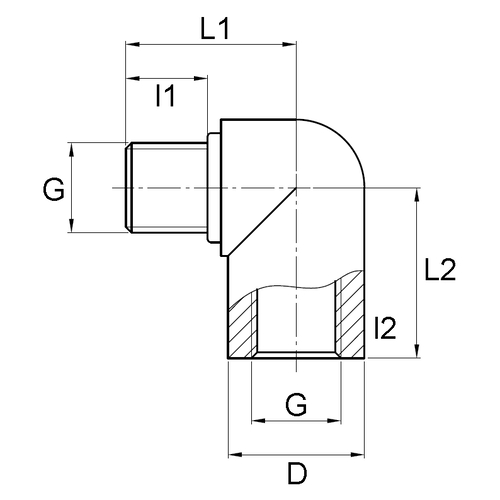

Item | Image | External thread | Innengewinde |
D mm
|
l1 mm
|
l2 mm
|
L1 mm
|
L2 mm
|
Werkstoff |
Einheit Stück
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|---|---|---|---|
24316 |
|
G 1/8" | G 1/8" | 15 | 8 | 10 | 18 | 20 | PP | 1 | 14.00 | |
24317 |
|
G 1/8" | G 1/8" | 15 | 8 | 10 | 18 | 20 | PFA | 1 | 58.00 | |
24318 |
|
G 1/8" | G 1/8" | 15 | 8 | 10 | 18 | 20 | PVDF | 1 | 23.00 | |
24320 |
|
G 1/4" | G 1/4" | 20 | 12 | 15 | 27 | 25 | PP | 1 | 18.00 | |
24321 |
|
G 1/4" | G 1/4" | 20 | 12 | 15 | 27 | 25 | PFA | 1 | 106.00 | |
24322 |
|
G 1/4" | G 1/4" | 20 | 12 | 15 | 27 | 25 | PVDF | 1 | 58.00 | |
24324 |
|
G 3/8" | G 3/8" | 25 | 12 | 15 | 30 | 30 | PP | 1 | 33.00 | |
24325 |
|
G 3/8" | G 3/8" | 25 | 12 | 15 | 30 | 30 | PTFE | 1 | 114.00 | |
24326 |
|
G 3/8" | G 3/8" | 25 | 12 | 15 | 30 | 30 | PVDF | 1 | 82.00 | |
24328 |
|
G 1/2" | G 1/2" | 30 | 14 | 16 | 35 | 35 | PP | 1 | 42.00 | |
24329 |
|
G 1/2" | G 1/2" | 30 | 14 | 16 | 35 | 35 | PTFE | 1 | 188.00 | |
24330 |
|
G 1/2" | G 1/2" | 30 | 14 | 16 | 35 | 35 | PVDF | 1 | 99.00 |
