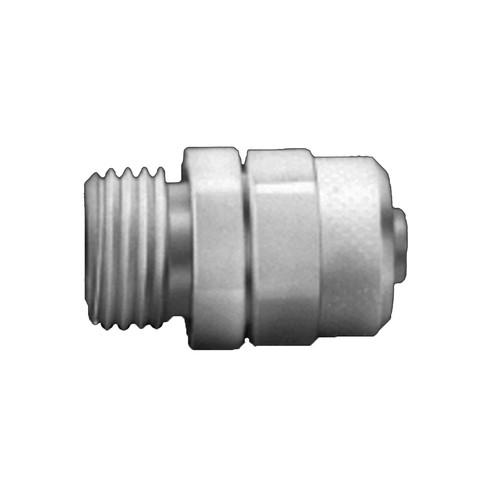

Straight Connector with Male Thread made of PVDF

Preview: Straight Connector with Male Thread made of PVDF
Straight Connector with Male Thread made of PVDF

Description General Information
Description
Product specification Male G-thread on one side, compression-type fitting on the other side... more
Close menu

Product specification

Male G-thread on one side, compression-type fitting on the other side

Resistance to alcohols, aldehydes, petrol, benzene and other aromatic hydrocarbons, chlorine gas, esters, glycols, motor oils, salt solutions, alkalis and acids

Technical specification

Material: PVDF (polyvinylidene fluoride)

Colour: transparent/white

Temperature range: -40 to +160 °C

General Information
more
Close menu
No additional information available.

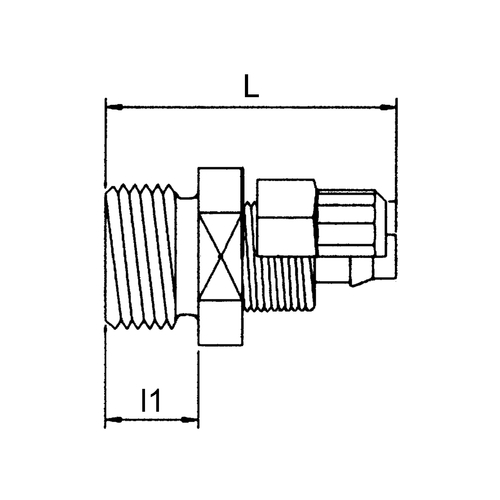

Item Image Tubing inside Ø
mm
 Schlauch Außen-Ø
mm
 Außengewinde l1
mm
 L
mm
 SW
mm
 Einheit
Stück
 Price
Euro* 		Buy
14712
4 6 G 1/4" 8 25 14 3 42.00
14713
6 8 G 1/4" 8 25 14 3 45.00
